ZRE171R-GEPDK (2013)
Toyota Corolla/Altis
Production
Dec 2013
-
Oct 2016
Engine
1ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )ZRE171..4FC..GEN,PKN

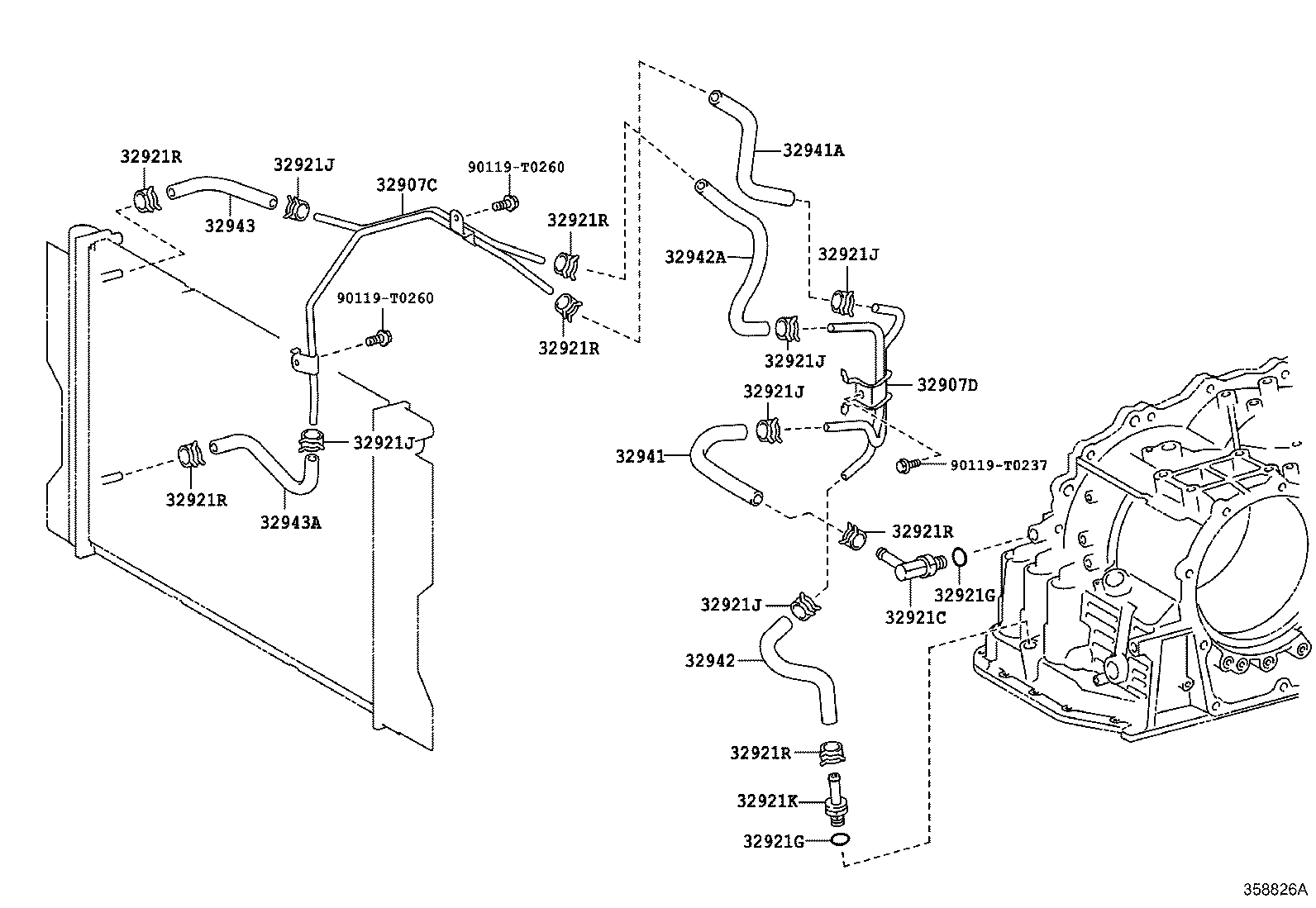

Click highlighted areas on diagram
U340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-02130 |
ZRE171..4FC..GEN |
1 | ||
| 32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 | ||||
| 32907-02210 |
ZRE171..4FC..GEN |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13005 |
ZRE171..4FC..GEN |
1 | ||
| 90404-13005 |
ZRE171..N |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE171..4FC..GEN |
2 | ||
| 90301-10018 |
ZRE171..N |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE171..4FC..GEN |
2 | ||
| 90301-10018 |
ZRE171..N |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921K - UNION, NO.2(FOR OIL COOLER TUBE) | ||||
| 90404-13007 |
ZRE171..4FC..GEN |
1 | ||
| 90404-13007 |
ZRE171..N |
1 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-T0009 |
ZRE171..4FC..GEN |
6 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-02370 |
ZRE171..4FC..GEN |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 90445-T0025 |
ZRE171..4FC..GEN |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-02360 |
ZRE171..4FC..GEN |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-T0026 |
ZRE171..4FC..GEN |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-02180 |
ZRE171..4FC..GEN |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-02190 |
ZRE171..4FC..GEN |
1 | ||
| Common parts | ||||
| 90119-T0237 | ||||
| 90119-T0260 | ||||
