ZRE171R-GEFDMT (2013)

Toyota Corolla/Altis

Production Dec 2013 - Dec 2015
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH,VN

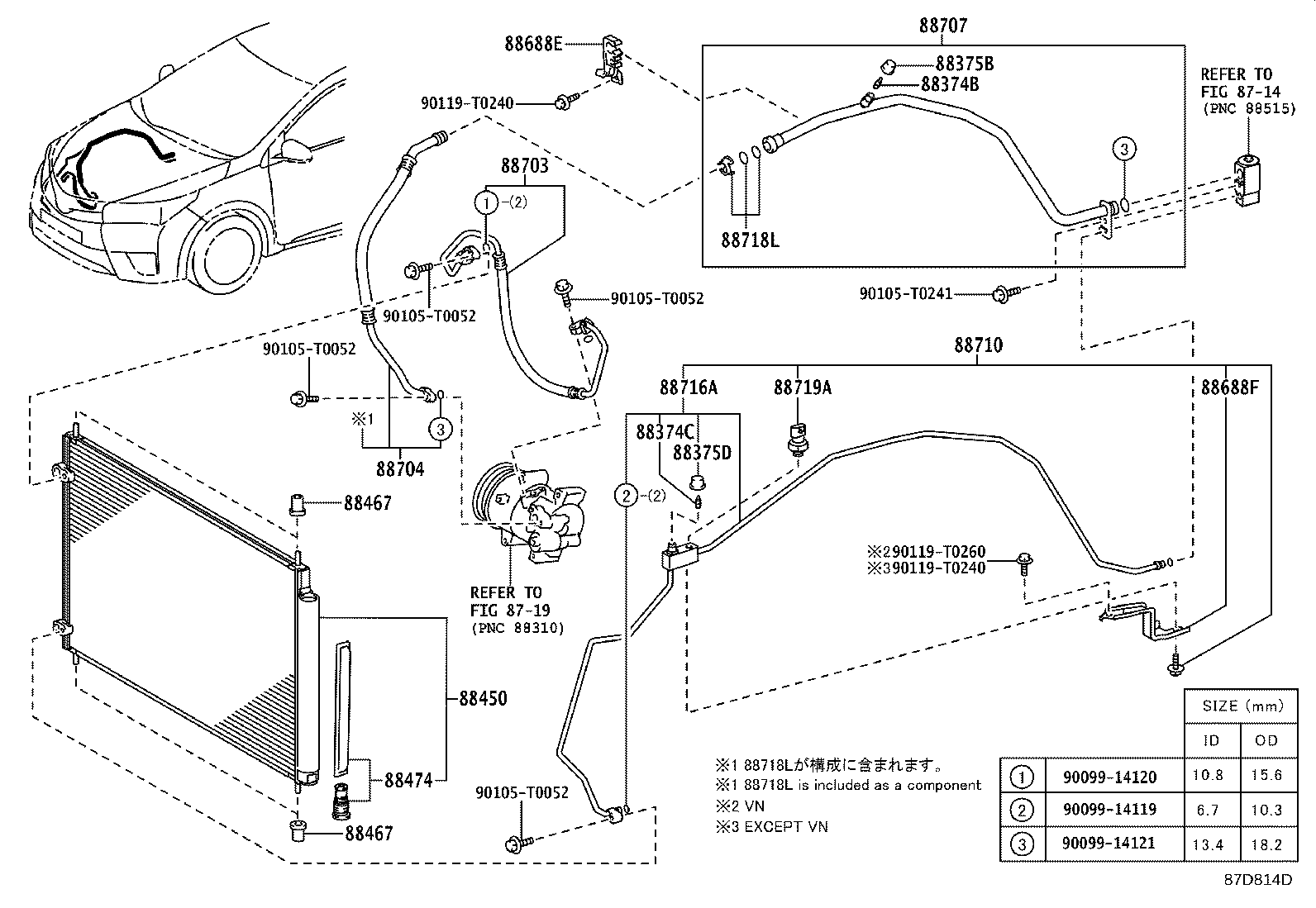

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88474 88688E 88688F 88703 88704 88707 88710 88716A 88718L 88719A 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0240 90119T0240 90119T0260
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02350

ZRE171..16J..CNG

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
88474 - DRYER, COOLER
88474-17010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-02720

ZRE171..16J..CNG

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-02810

ZRE171..16J..CNG

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02A00

ZRE171..16J..CNG

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02840

ZRE171..16J..CNG

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-02260

ZRE171..16J..CNG

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02700

ZRE171..16J..CNG

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02720

ZRE171..16J..CNG

 1
88718L - CLAMP, PIPING
88718-52260

ZRE171..16J..CNG

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0240
90119-T0260
Linked diagrams
8714
8719
