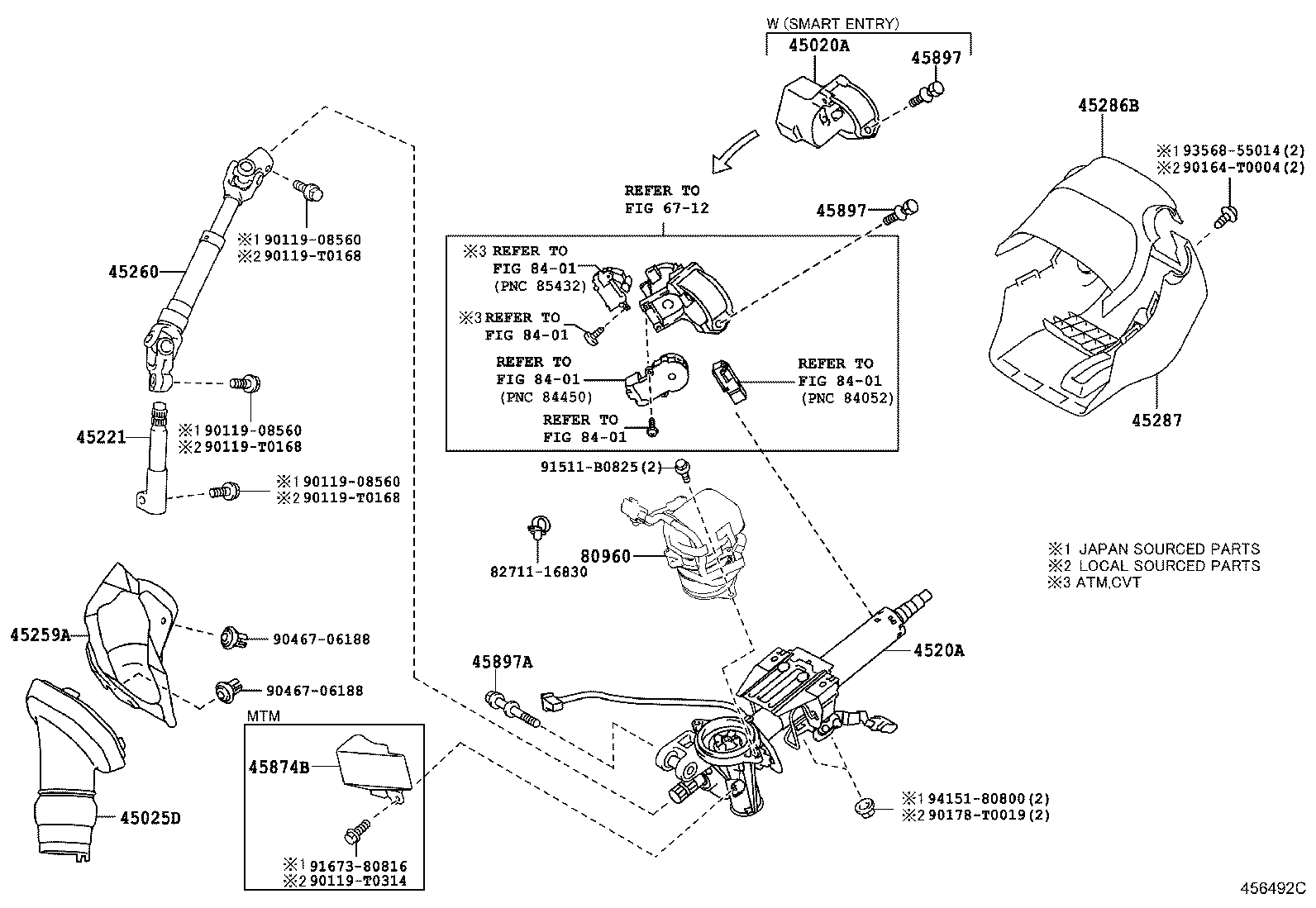

Toyota Corolla/altis ZRE171 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02191	ZRE171..HTWC..TH	12/2013 - 01/2016	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02200	ZRE171..HTWC..TH	12/2013 - 01/2016	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02130	ZRE171..HTWC..TH	12/2013 - 01/2016	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02130	ZRE171..HTWC..TH	12/2013 - 01/2016	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02210	ZRE171..HTWC..TH	12/2013 - 01/2016	1
45286B - COVER, STEERING COLUMN, UPR
45286-02460C0	ZRE171..16J..HTWC BLACK,TRIM1#,2#	12/2013 - 01/2016	1
45287 - COVER, STEERING COLUMN, LWR
45287-02440C0	ZRE171..16J..HTWC BLACK,TRIM1#,2#	12/2013 - 01/2016	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-02030	ZRE171..16J..HTWC	12/2013 - 01/2016	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ZRE171..HTWC..TH	10/2013 - 01/2016	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ZRE171..HTWC..TH	10/2013 - 01/2016	1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981	ZRE171..HTWC..TH	10/2013 - 01/2016	1
80960 - MOTOR ASSY, POWER STEERING
80960-02100	ZRE171..HTWC..TH	10/2013 - 01/2016	1
Common parts
82711-16830
90119-08560
90119-T0168
90119-T0314
90164-T0004
90178-T0019
90467-06188
91511-B0825
91673-80816
93568-55014
94151-80800
Linked diagrams
6712
8401

ZRE171R-GEFDKT (2013)
