ZRE171L-GEXVKM (2013)
Toyota Corolla/Altis
(1312- )ZRE17#..LHD..GEN,PHL,VN

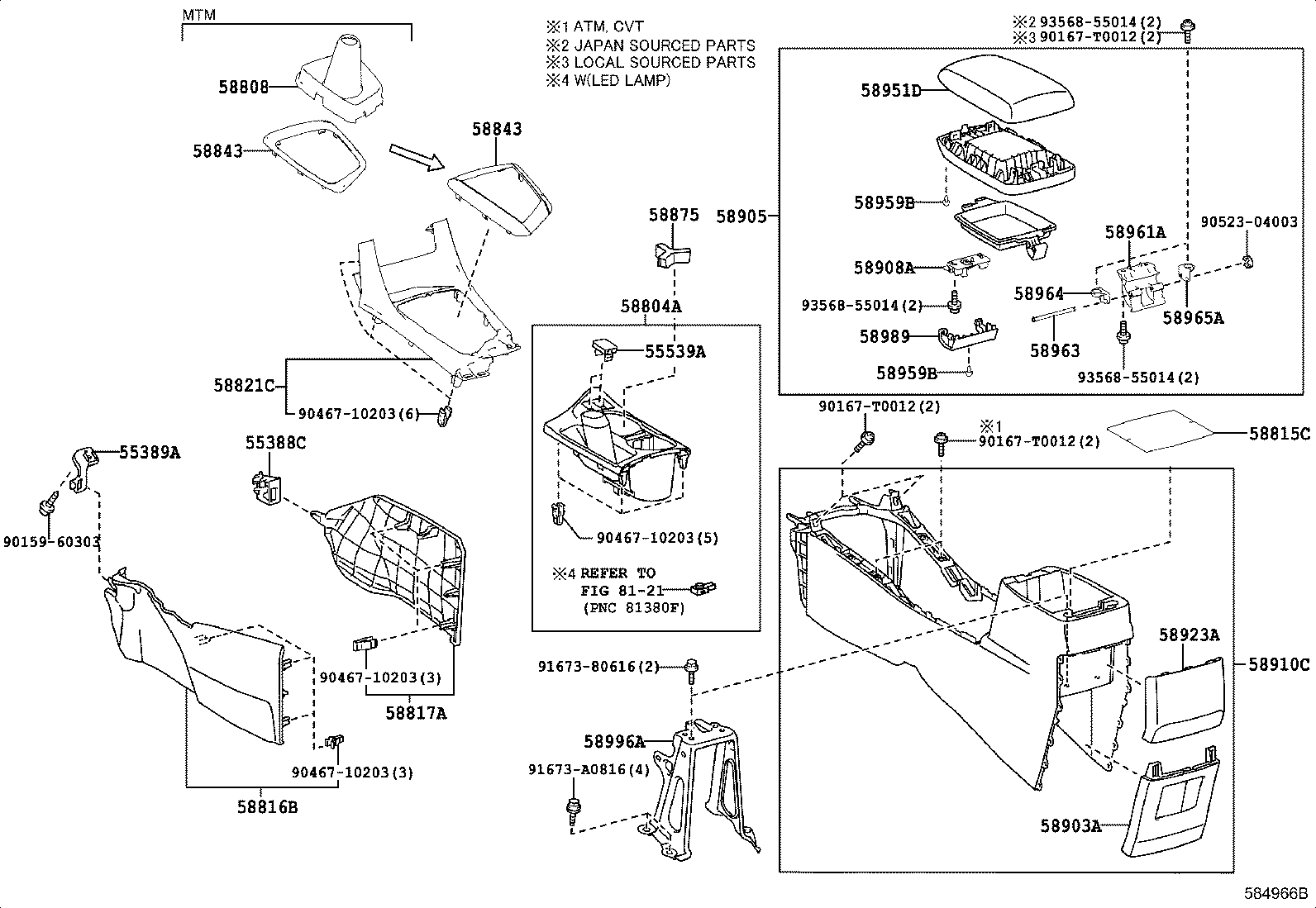

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02070 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02050 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-02310C0 |
ZRE171,173..(16V,20V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58804-02311C0 |
ZRE171..16V BLACK,TRIM0#,2# |
1 | ||
| 58804-02331C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02310 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-02230C0 |
ZRE171,173..(16G,16V,20V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58816-02240C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02240C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58817-02230C0 |
ZRE171,173..(16G,16V,20V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02790C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58821-02780C0 |
ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02610 |
ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02610 |
ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 58875 - SPACER, CONSOLE BOX | ||||
| 58875-02010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02010C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171,173..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02B00A2 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE171,172..RHD..(16E,18E,GLI,GXLI,XLI)..(GEN,TH) IVORY/BLACK,TRIM0# |
1 | ||
| 58905-02B00C1 |
ZRE171..6F..16G;ZRE172..ARL..(D,N);ZRE171,172..CVT..(MA,PHL,SGP) BLACK/BLACK,TRIM2# |
1 | ||
| 58905-02B10A2 |
ZRE171..G UP GRADE PACKAGE,IVORY/BLACK,TRIM0# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-02120 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02480C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02200C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171,173..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02850A0 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE171,172..RHD..(16E,18E,GLI,GXLI,XLI)..(GEN,TH) IVORY,TRIM0# |
1 | ||
| 58951-02850C0 |
ZRE171..6F..16G;ZRE172..ARL..(D,N);ZRE171,172..CVT..(MA,PHL,SGP) BLACK,TRIM2# |
1 | ||
| 58951-02860A1 |
ZRE171..G UP GRADE PACKAGE,IVORY,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
3 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
3 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-02140 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE | ||||
| 58963-02060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-02210 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-02220 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58989 - PANEL, CONSOLE COMPARTMENT DOOR | ||||
| 58989-02160 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02150 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90167-T0012 | ||||
| 90467-10203 | ||||
| 90523-04003 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
