ZRE171L-GEXVKM (2013)
Toyota Corolla/Altis

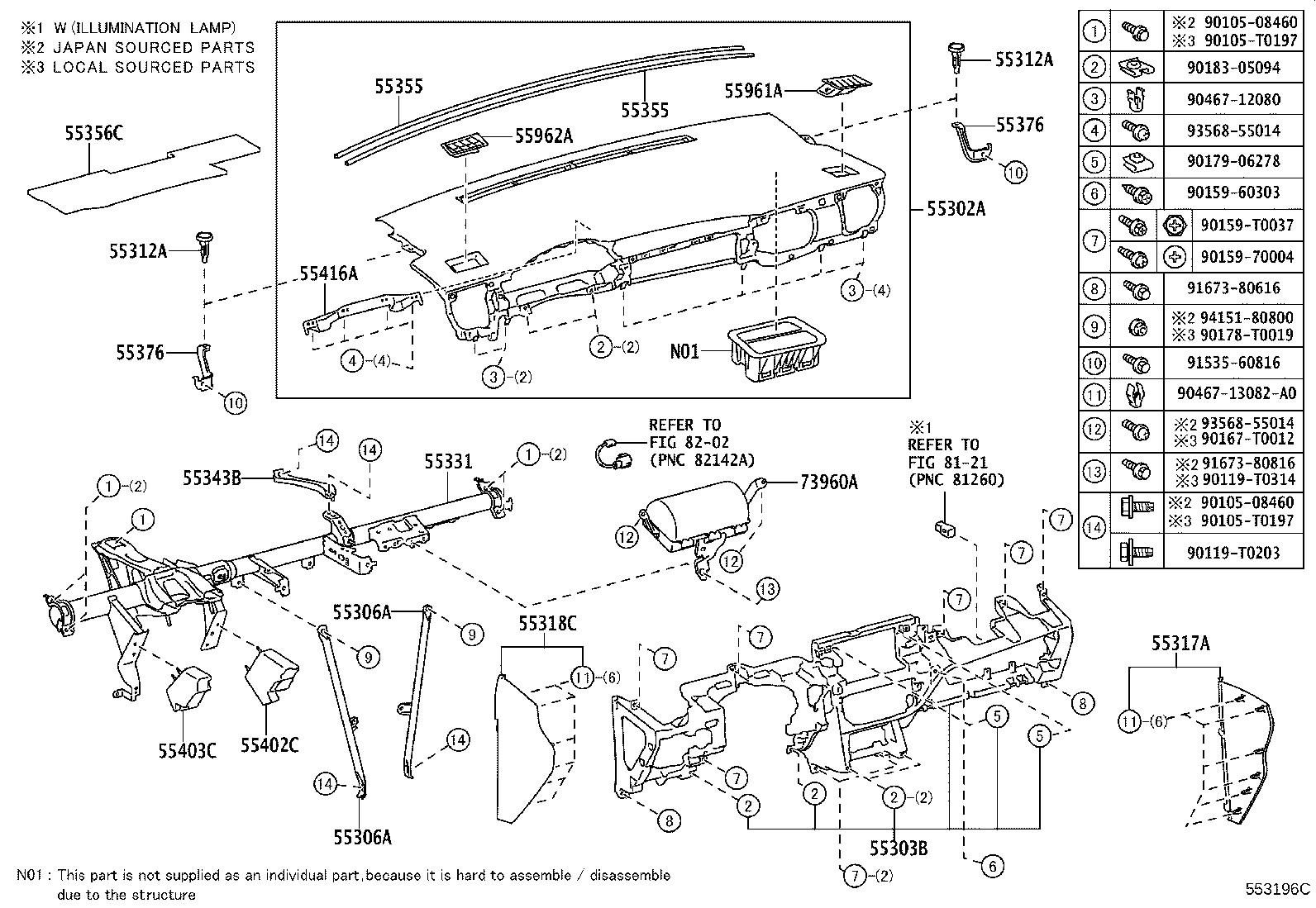

ILLUST NO. 1 OF 2(1312- )ZRE17#..LHD..GEN,PHL,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02700C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171,173..(16G,16V,20V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55302-02661C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55302-02701C0 |
ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02420C0 |
ZRE172..CVT..VN;ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55303-02430C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55303-02422C0 |
ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55303-02421C0 |
ZRE172..CVT..VN;ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55303-02431C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02610 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE17#..(18E,18G,18GS,18V,20G,20V,XLI)..(GEN,IDN,MA,PHL,TH) RH |
1 | ||
| 55307-02360 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH LH |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02610 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE17#..(18E,18G,18GS,18V,20G,20V,XLI)..(GEN,IDN,MA,PHL,TH) RH |
1 | ||
| 55307-02360 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH LH |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02410C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171,173..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02180C0 |
ZRE171..6F..16G;ZRE172..18E..TH;ZRE171,173..CVT..(PHL,SGP) BLACK,TRIM0#,2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02800 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55330-02790 |
ZRE171..G;ZRE171..16J..HTWCF;ZRE172,173..IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02150 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02310 |
ZRE171,173..LHD..(GEN,PHL) |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02310 |
ZRE171,173..LHD..(GEN,PHL) |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02270 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55377-02080 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH LH |
1 | ||
| 55376-02100 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH RH |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55377-02080 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH LH |
1 | ||
| 55376-02100 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH RH |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-02060 |
ZRE171..G;ZRE171..16J..HTWCF;ZRE172,173..IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 55402-02070 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-02160 |
ZRE171..G;ZRE171..16J..HTWCF;ZRE172,173..IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 55403-02170 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-02210 |
ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-02120C0 |
ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55962-02140C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-02180C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55961-02160C0 |
ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02210 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-T0197 | ||||
| 90119-T0203 | ||||
| 90119-T0314 | ||||
| 90159-60303 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 91535-60816 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
