ZRE171L-GEXVKM (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1610)ZRE171..CVT..PHL ; (1310- )ZRE172,173..LHD ; (1310- )ZRE171..LHD..

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763A 44773F 44773G 44773G 44774 44774A 44774A 44785 47264D 90178T0018 9017906274 90182T0010 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02A80

ZRE171,173..LHD..(16V,20V,XLI)..(GEN,PHL)

 1
44696 - GROMMET, CHECK VALVE
90080-48050

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02150

ZRE171,173..LHD..(GEN,PHL)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-02170

ZRE171,173..LHD..(GEN,PHL)

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-02190

ZRE171,173..LHD..(GEN,PHL)

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90178-T0018
90179-06274
90182-T0010
94120-41000
94151-80600
Linked diagrams
1708

(1312- )ZRE171..RHD..CVT..HTWC ; (1312- )ZRE172,173..ARL,IDN,MA,PKN,TH ; (131

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763A 44773F 44773G 44773G 44774 44774A 44774A 44785 47264D 90178T0018 9017906274 90182T0010 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02A80

ZRE171,173..LHD..(16V,20V,XLI)..(GEN,PHL)

 1
44696 - GROMMET, CHECK VALVE
90080-48050

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02150

ZRE171,173..LHD..(GEN,PHL)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-02170

ZRE171,173..LHD..(GEN,PHL)

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-02190

ZRE171,173..LHD..(GEN,PHL)

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE171,173..LHD..(GEN,PHL)

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90178-T0018
90179-06274
90182-T0010
94120-41000
94151-80600
Linked diagrams
1708

(1512- )ZRE171..CVT..GCC ; (1611- )ZRE171..CVT..PHL

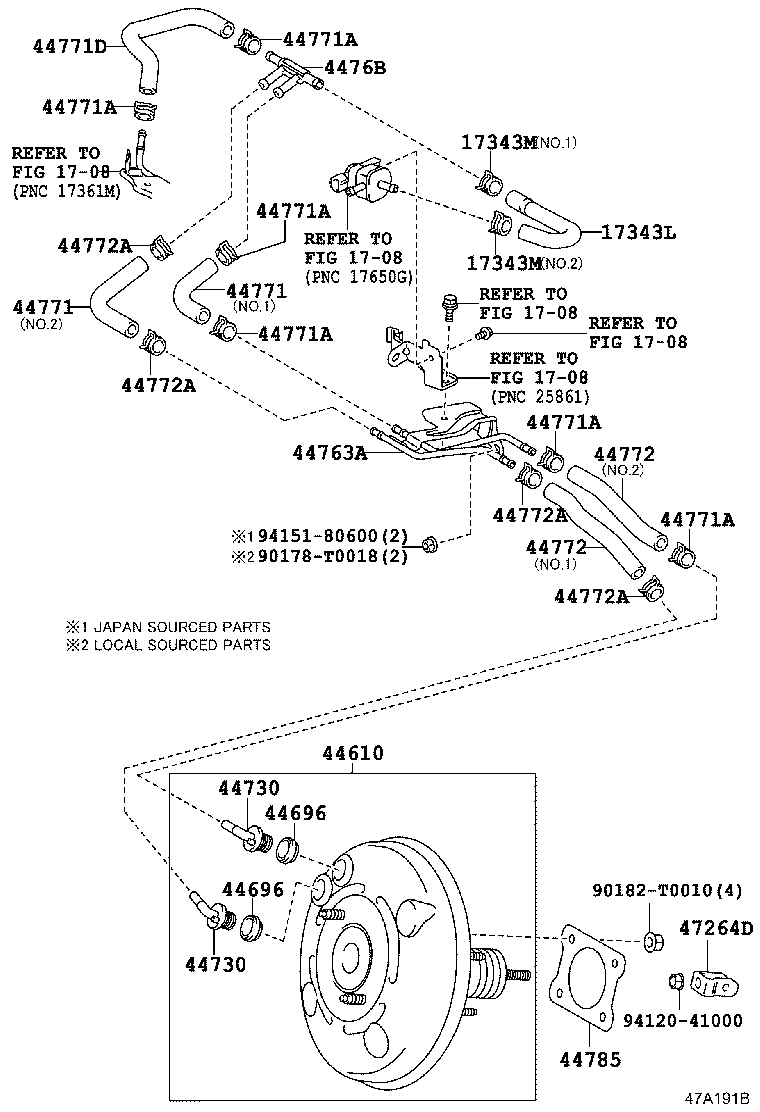

Click highlighted areas on diagram

diagram 1708 1708 1708 1708 1708 17343L 17343M 17343M 44610 44696 44696 44730 44730 44763A 4476B 44771 44771 44771A 44771A 44771A 44771A 44771A 44771A 44771D 44772 44772 44772A 44772A 44772A 44772A 44785 47264D 90178T0018 90182T0010 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02A80

ZRE171,173..LHD..(16V,20V,XLI)..(GEN,PHL)

 1
44696 - GROMMET, CHECK VALVE
90080-48050

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44696 - GROMMET, CHECK VALVE
90080-48050

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02150

ZRE171,173..LHD..(GEN,PHL)

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90178-T0018
90182-T0010
94120-41000
94151-80600
Linked diagrams
1708
