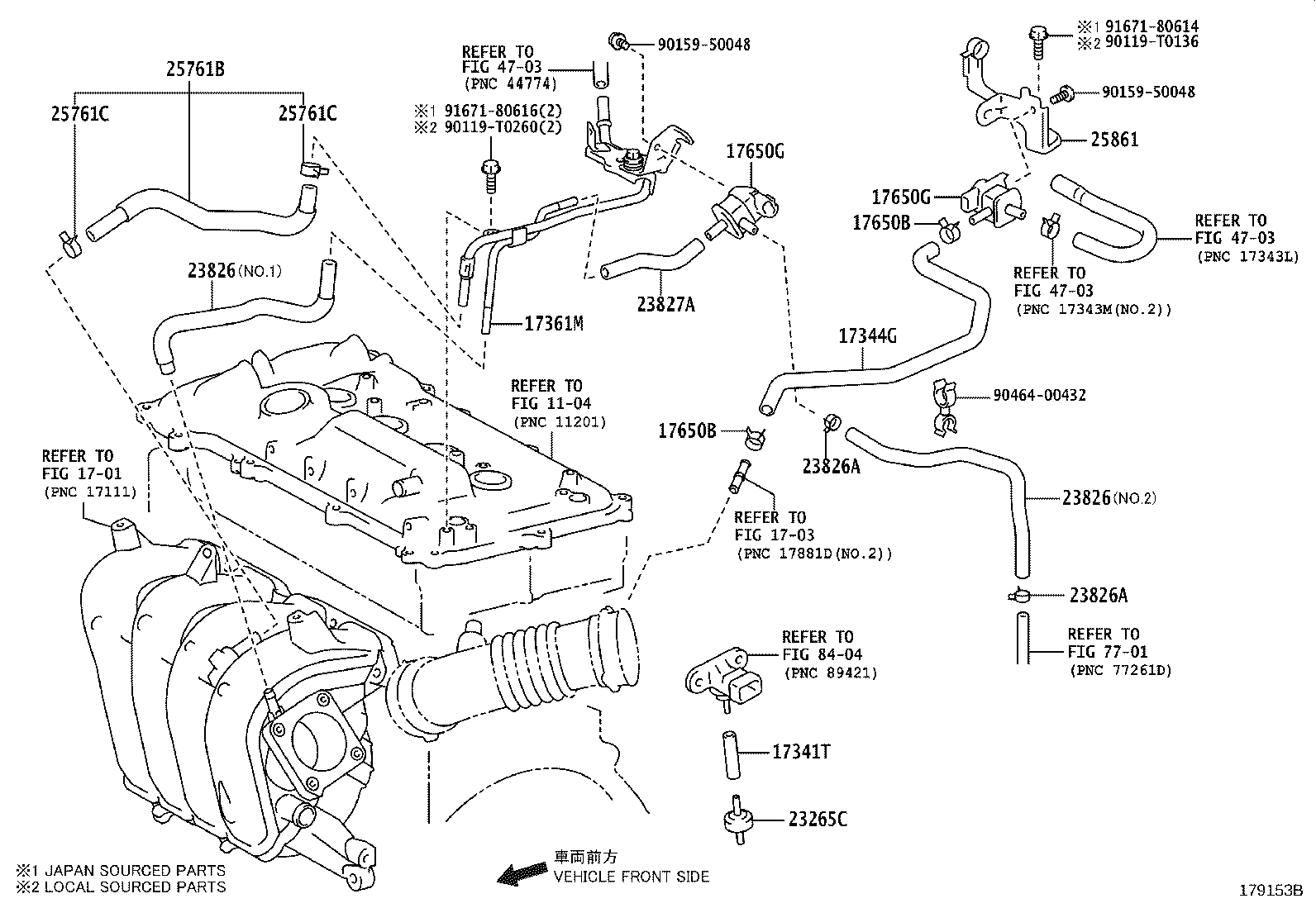

ZRE171L-GEXVKM (2013)
Toyota Corolla/Altis
(1310-1601)1ZRFE..6F..GCC ; (1310- )1ZRFE..4FC..GCC,PKN ; (1310- )1ZRFE..GEN,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37011 |
1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 17361-37090 |
1ZRF..ZRE171 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 90910-12276 |
1ZRF..ZRE171 (J) |
2 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37011 |
1ZR#..ZRE171..GEN,PHL,SGP,TH |
1 | ||
| 25761-37011 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 25761-0T080 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-37060 |
1ZRF..ZRE171 |
1 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(1512- )1ZRFE..LHD..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37011 |
1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 17361-37090 |
1ZRF..ZRE171 |
1 | ||
| 17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE) | ||||
| 96136-41801 |
1ZRF..ZRE171 NO.1 |
1 | ||
| 96132-41500 |
1ZRF..ZRE171 NO.2 |
3 | ||
| 17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE) | ||||
| 96136-41801 |
1ZRF..ZRE171 NO.1 |
1 | ||
| 96132-41500 |
1ZRF..ZRE171 NO.2 |
3 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 90910-12276 |
1ZRF..ZRE171 (J) |
2 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 90910-12276 |
1ZRF..ZRE171 (J) |
2 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37011 |
1ZR#..ZRE171..GEN,PHL,SGP,TH |
1 | ||
| 25761-37011 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 25761-0T080 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-37060 |
1ZRF..ZRE171 |
1 | ||
| Common parts | ||||
| 90119-T0136 | ||||
| 90119-T0260 | ||||
| 90159-50048 | ||||
| 90464-00432 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 1703 | ||||
| 4703 | ||||
| 7701 | ||||
| 8404 | ||||
