Toyota Corolla/altis ZRE171 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZRE171L-GEXNKV (2015)
5201 - FRONT BUMPER & BUMPER STAY

ZRE171L-GEXNKV (2015)

Toyota Corolla/Altis

Production Nov 2015 - Sep 2016

Engine 1ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1310-1610)GCC,SGP,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1405-1703)IND ; (1407

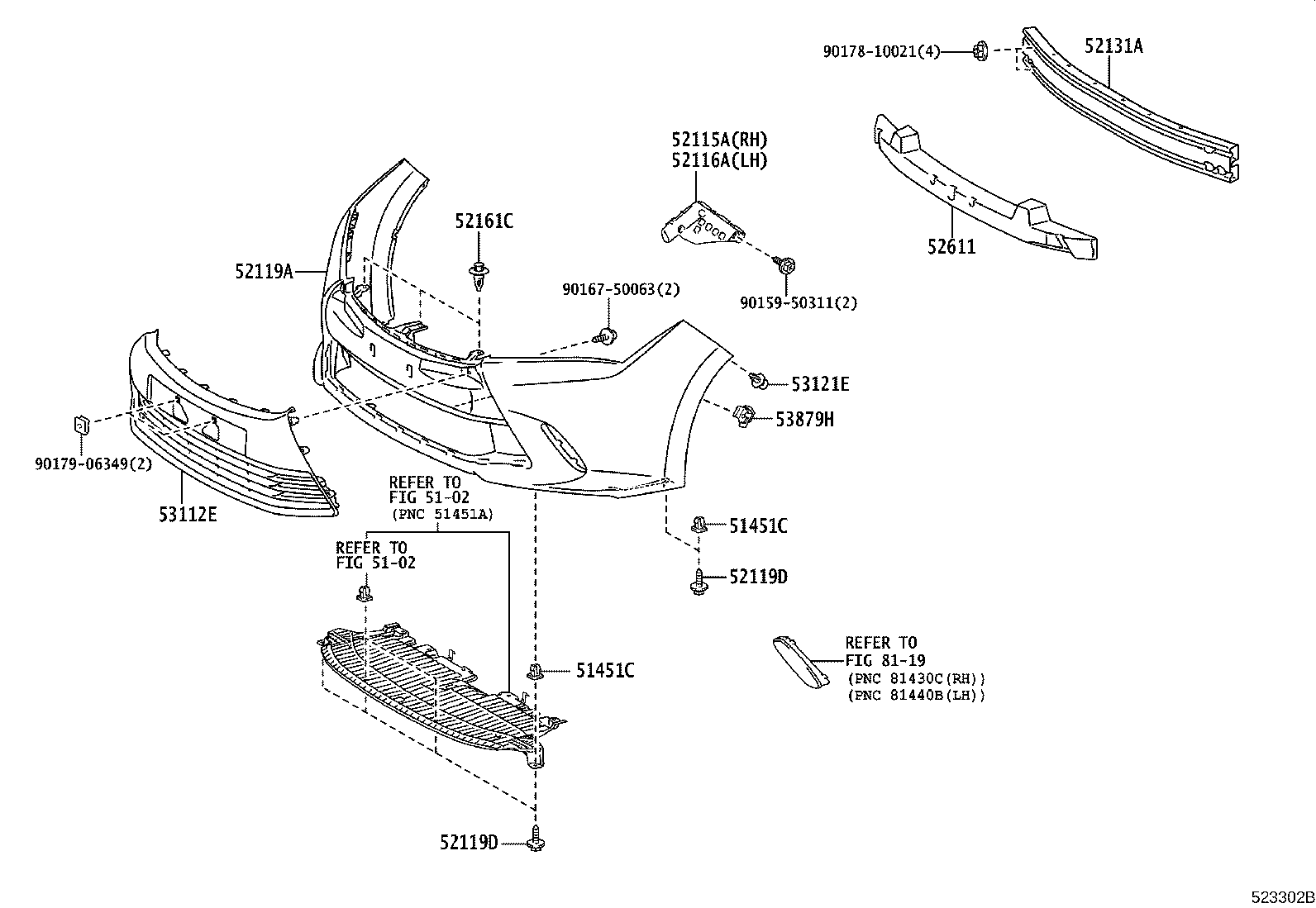

Click highlighted areas on diagram

Part #	Description	Period	Qty
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237	ZRE171,173..CVT..GCC	12/2015 - 09/2016	4
90189-06193	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	4
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237	ZRE171,173..CVT..GCC	12/2015 - 09/2016	4
90189-06193	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	4
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52119A - COVER, FRONT BUMPER
52119-0Z978	ZRE172..TAIW;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
52119-0Z944	ZRE171,173..CVT..GCC PAINT REQ.	12/2015 - 09/2016	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-02250	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52161C - PIECE, FRONT BUMPER
52161-0K060	ZRE171,173..GLI..GCC	12/2015 - 09/2016	3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02490	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
52611-02330	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02520	ZRE171,173..CVT..GCC NO PAINT REQ.	12/2015 - 09/2016	1
53112-02A10	ZRE172..TAIW;ZRE171,173..GLI..GCC NO PAINT REQ.,X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05170	ZRE171,173..CVT..GCC	12/2015 - 09/2016	2
53879H - RETAINER, FRONT FENDER LINER
53879-0K010	ZRE171,173..CVT..GCC	12/2015 - 09/2016	2
81481E - COVER, FOG LAMP, RH
81481-02450	ZRE171,173..GLI..GCC	12/2015 - 09/2016	1
81482C - COVER, FOG LAMP, LH
81482-02440	ZRE171,173..GLI..GCC	12/2015 - 09/2016	1
Common parts
52491-35010
90159-50311
90159-T0009
90167-50063
90178-10021
90178-T0011
90179-06349
Linked diagrams
5102
7601

(1601-1609)TAIW ; (1601-1609)GLI..GCC

Click highlighted areas on diagram

X PACKAGE

Part #	Description	Period	Qty
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237	ZRE171,173..CVT..GCC	12/2015 - 09/2016	4
90189-06193	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	4
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237	ZRE171,173..CVT..GCC	12/2015 - 09/2016	4
90189-06193	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	4
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02270	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52119A - COVER, FRONT BUMPER
52119-0Z978	ZRE172..TAIW;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
52119-0Z944	ZRE171,173..CVT..GCC PAINT REQ.	12/2015 - 09/2016	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-02250	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
52161C - PIECE, FRONT BUMPER
52161-0K060	ZRE171,173..GLI..GCC	12/2015 - 09/2016	3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02490	ZRE172..TAIW;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
52611-02330	ZRE171,173..CVT..GCC	12/2015 - 09/2016	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02520	ZRE171,173..CVT..GCC NO PAINT REQ.	12/2015 - 09/2016	1
53112-02A10	ZRE172..TAIW;ZRE171,173..GLI..GCC NO PAINT REQ.,X PACKAGE(REAR EMBLEM "X")	01/2016 - 09/2016	1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05170	ZRE171,173..CVT..GCC	12/2015 - 09/2016	2
53879H - RETAINER, FRONT FENDER LINER
53879-0K010	ZRE171,173..CVT..GCC	12/2015 - 09/2016	2
Common parts
90159-50311
90167-50063
90178-10021
90179-06349
Linked diagrams
5102
8119

ZRE171L-GEXNKV (2015)

(1310-1610)GCC,SGP,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1405-1703)IND ; (1407

(1601-1609)TAIW ; (1601-1609)GLI..GCC
