ZRE171L-GEXNKV (2016)

Toyota Corolla/Altis

Production Oct 2016 - Mar 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

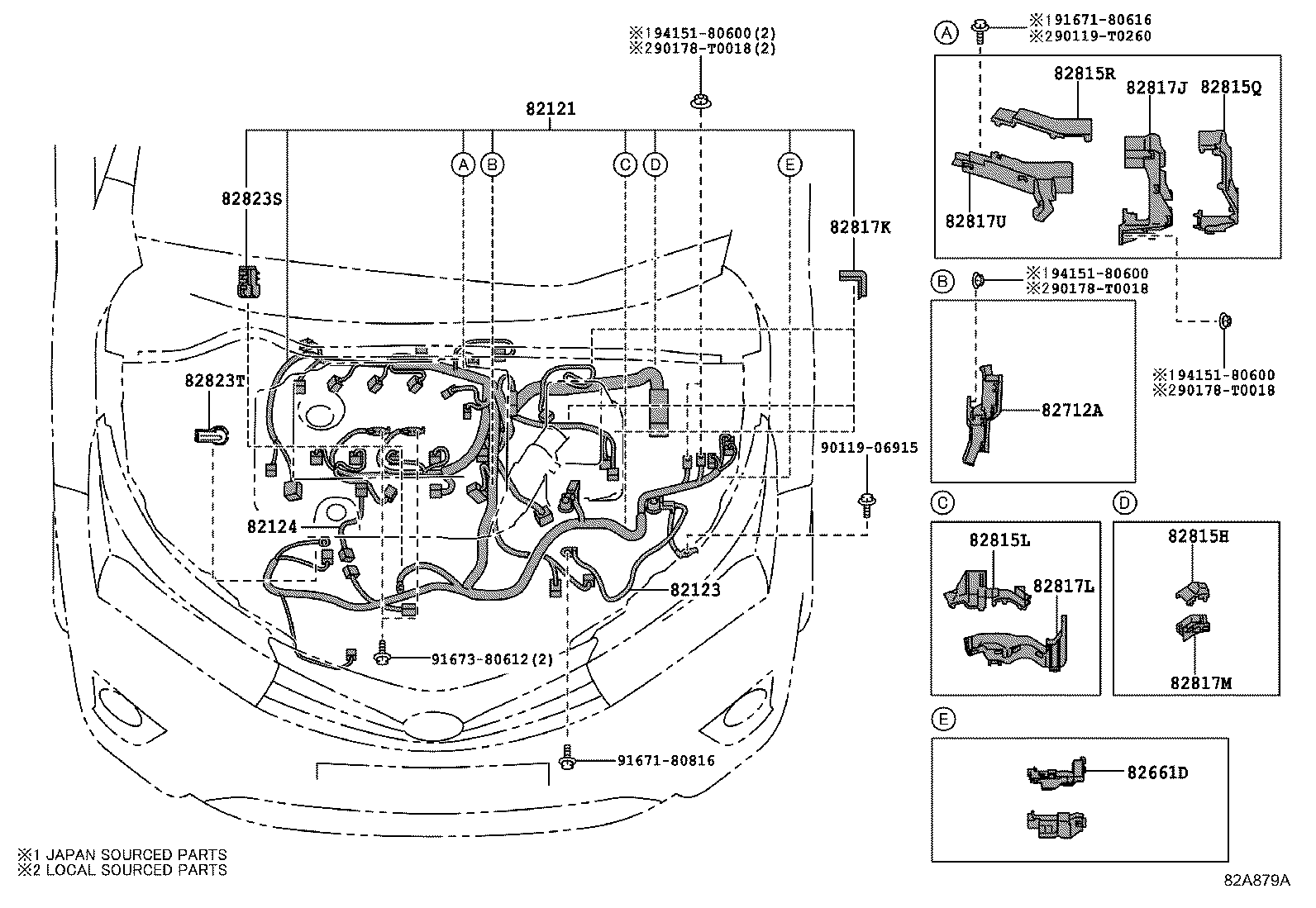

ILLUST NO. 2 OF11(1611- )ZRE171..G

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82124 82661D 82712A 82815H 82815L 82815Q 82815R 82817J 82817K 82817L 82817M 82817U 82823S 82823T 9011906915 90119T0260 90178T0018 90178T0018 90178T0018 9167180616 9167180816 9167380612 9415180600 9415180600 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0ZF60

ZRE171..G

 1
82123 - WIRE, ENGINE, NO.3
82123-02D00

ZRE171,172..CVT..(ARL,GCC,IDN,IND,MA,PHL,SGP,TAIW,TH,VN)

 1
82124 - WIRE, ENGINE, NO.4
82124-02120

ZRE171..G

 1
82124-02120

ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12300

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82712A - SUPPORT, WIRING HARNESS
82712-12070

ZRE171..N

 1
82712-12070

ZRE171..N

 1
82712-12070

ZRE171..GCC

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-12180

ZRE172..CVT..VN;ZRE171,172..(HTWC,HTWCF,HTWVM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH)

 1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-12360

ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-12860

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82817-12860

ZRE171..N

 3
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-12G40

ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-12B60

ZRE172..CVT..VN;ZRE171,172..(HTWC,HTWCF,HTWVM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH)

 1
82823S - CAP, STARTER TERMINAL
82823-12110

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
Common parts
90119-06915
90119-T0260
90178-T0018
91671-80616
91671-80816
91673-80612
94151-80600
