ZRE171L-GEXNKV (2016)
Toyota Corolla/Altis
(1610- )GCC

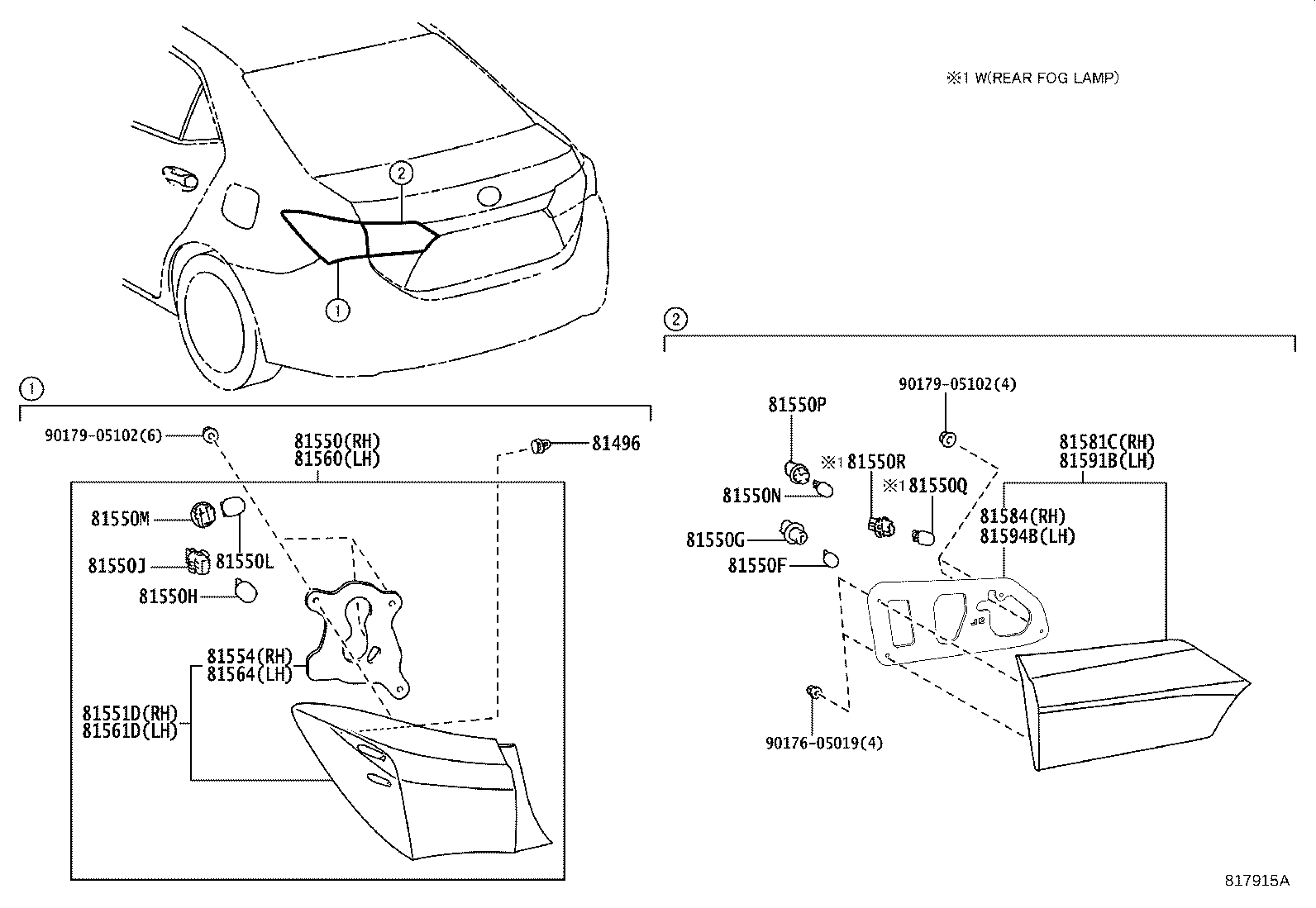

STOP LAMP(BULB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81550-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 12V 21W,AMBER |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90075-60088 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
2 | ||
| 90075-60026 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-60001 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81551-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81564-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81560-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81561-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81581-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81591-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81584-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90176-05019 | ||||
| 90179-05102 | ||||
(1610- )GCC,TAIW

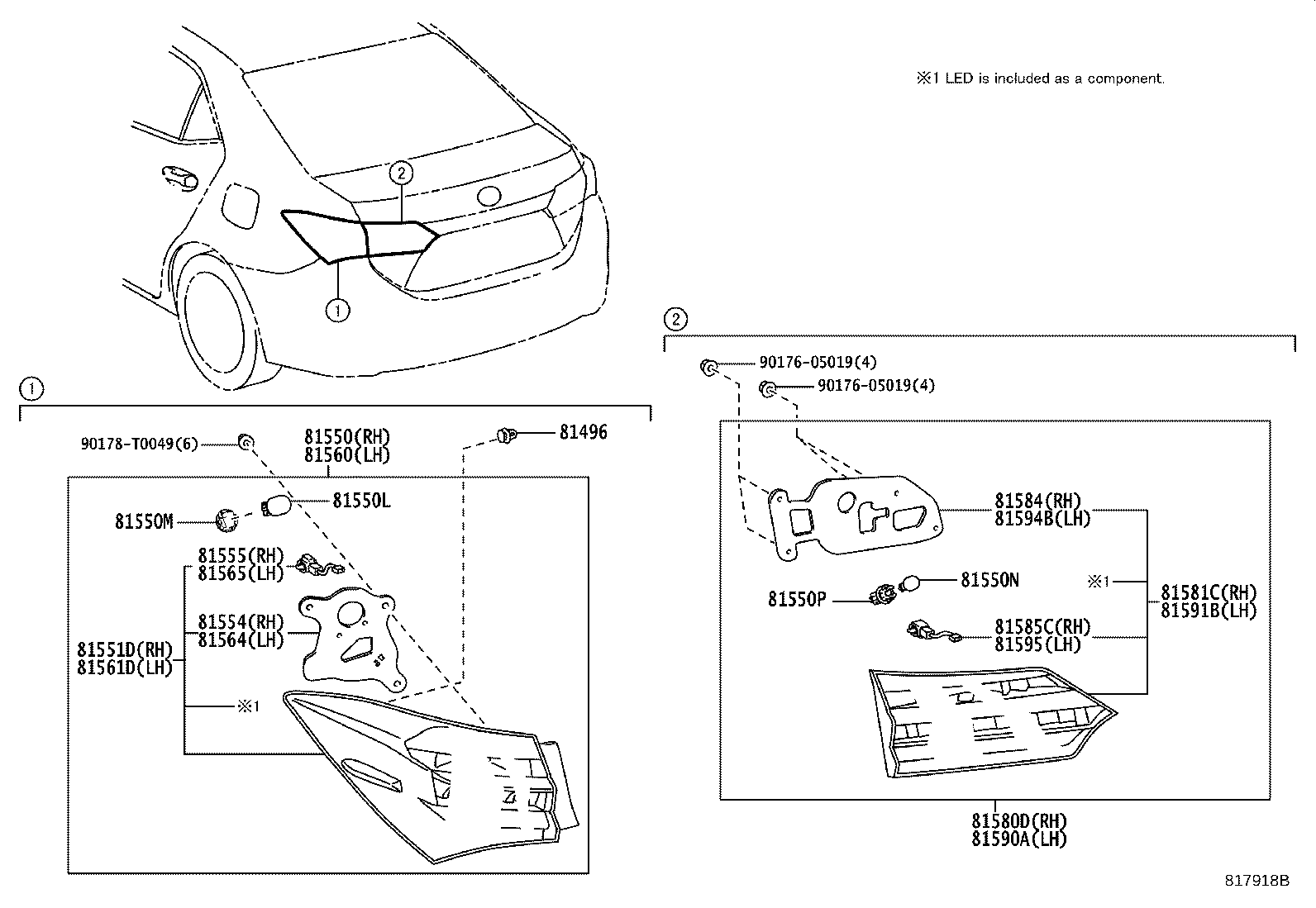

STOP LAMP(LED)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81550-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 12V 21W,AMBER |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90075-60088 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
2 | ||
| 90075-60026 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-60001 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81551-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81564-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81560-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81561-02D60 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-02B40 |
ZRE17#..GCC,TAIW |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81580-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81581-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81590-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81591-02D00 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81584-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81595-02A90 |
ZRE17#..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90176-05019 | ||||
| 90178-T0049 | ||||
