ZRE171L-GEXNKV (2016)

Toyota Corolla/Altis

Production Oct 2016 - Mar 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )GCC,TAIW

Click highlighted areas on diagram

HALOGEN HEADLAMP

diagram 53181E 53182E 81110 81110B 81110D 81135 81139 81139 81150 81175 81195 81510D 9010906382 9010906382 9015950388 90189T0007
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-02020

ZRE17#..GCC,TAIW

 1
53182E - COVER, HEADLAMP, LH
53182-02020

ZRE17#..GCC,TAIW

 1
81110 - HEADLAMP ASSY, RH
81110-02R60

ZRE171,173..GLI..GCC

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZRE172..TAIW..E;ZRE172..(ARL,TAIW)..(D,G,N);NZE170,ZRE171..CNG,HTWC,HTWCF;NDE170,ZRE172,173..(18E,18G,20G,G,GLI,J,XLI)..(GCC,IDN,IND,MA,TH)

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ZRE17#..GCC,TAIW

12V 55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81145-02R60

ZRE171,173..GLI..GCC

 1
81139 - COVER, HEADLAMP SOCKET
81139-02G90

ZRE17#..GCC,TAIW

 4
81139 - COVER, HEADLAMP SOCKET
81139-02G90

ZRE17#..GCC,TAIW

 4
81150 - HEADLAMP ASSY, LH
81150-02R60

ZRE171,173..GLI..GCC

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-02R60

ZRE171,173..GLI..GCC

 1
81195 - SCREW, HEADLAMP
90168-40059

ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,TAIW,TH;NDE170,NZE170,ZRE171,173..GCC,GEN,IND,MA,PHL,PKN,SGP,TH

 8
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

12V 21W,AMBER

 2
Common parts
90109-06382
90159-50388
90189-T0007

(1610- )GCC,TAIW

Click highlighted areas on diagram

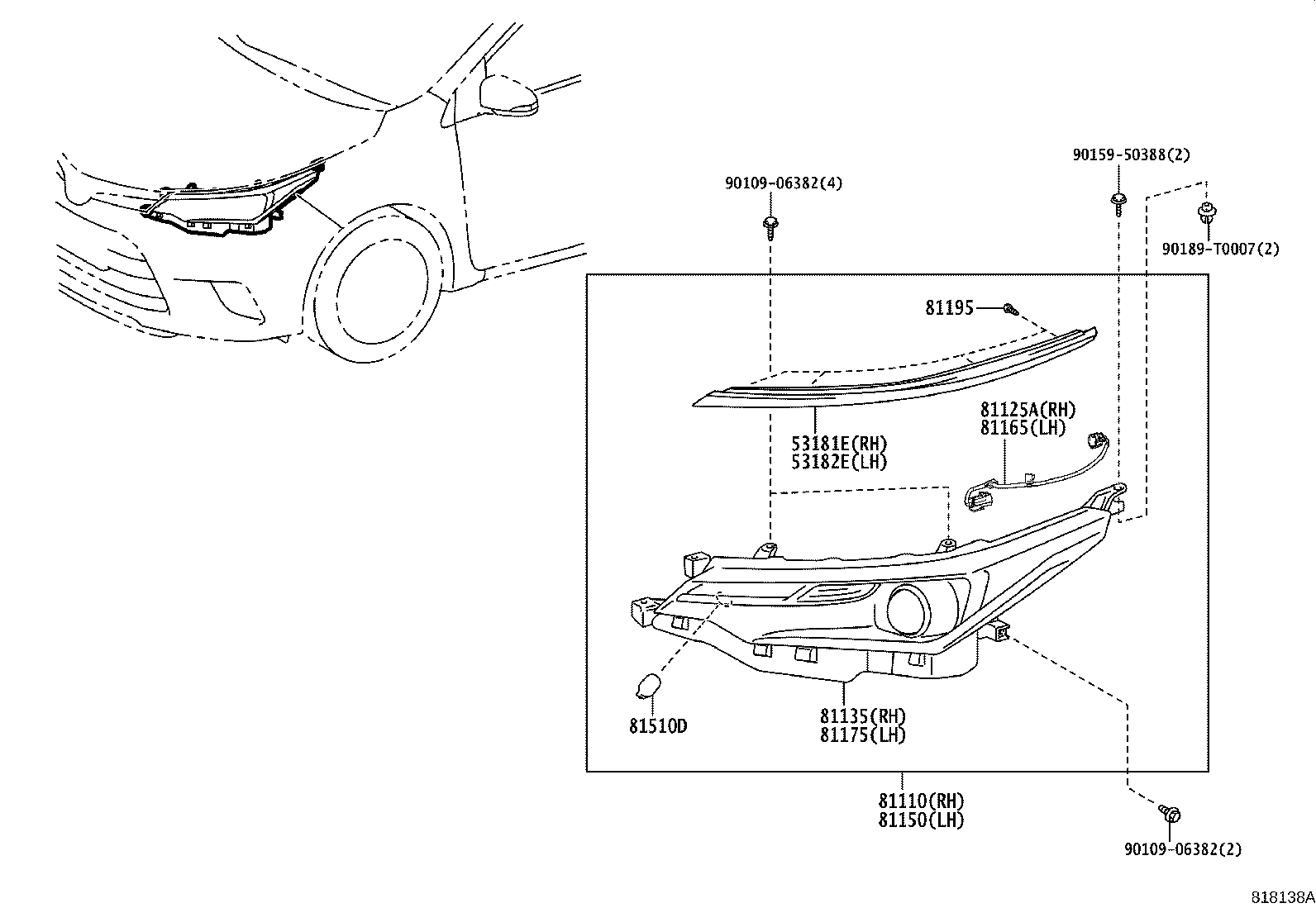

LED HEADLAMP

diagram 53181E 53182E 81110 81125A 81135 81150 81165 81175 81195 81510D 9010906382 9010906382 9015950388 90189T0007
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-02020

ZRE17#..GCC,TAIW

 1
53182E - COVER, HEADLAMP, LH
53182-02020

ZRE17#..GCC,TAIW

 1
81110 - HEADLAMP ASSY, RH
81110-02R60

ZRE171,173..GLI..GCC

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-02R60

ZRE171,173..GLI..GCC

 1
81150 - HEADLAMP ASSY, LH
81150-02R60

ZRE171,173..GLI..GCC

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-02R60

ZRE171,173..GLI..GCC

 1
81195 - SCREW, HEADLAMP
90168-40059

ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,TAIW,TH;NDE170,NZE170,ZRE171,173..GCC,GEN,IND,MA,PHL,PKN,SGP,TH

 8
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

12V 21W,AMBER

 2
Common parts
90109-06382
90159-50388
90189-T0007
