ZRE171L-GEXNKV (2016)
Toyota Corolla/Altis
(1610- )GCC,TAIW ; (1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703- )IND ; (1707
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02390 |
ZRE17#..GCC,TAIW |
1 | ||
| 52115-02390 |
ZRE17#..GCC,TAIW |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02380 |
ZRE17#..GCC,TAIW |
1 | ||
| 52116-02380 |
ZRE17#..GCC,TAIW |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2906 |
ZRE172..G;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52119-F2906 |
ZRE172..G;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52119-0Z980 |
ZRE17#..GCC,TAIW PAINT REQ. |
1 | ||
| 52119-0Z980 |
ZRE17#..GCC,TAIW PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02570 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52127-02570 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02560 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128-02560 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-02250 |
ZRE17#..GCC,TAIW |
1 | ||
| 52131-02250 |
ZRE17#..GCC,TAIW |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K060 |
ZRE17#..GCC,TAIW |
3 | ||
| 52161-0K060 |
ZRE17#..GCC,TAIW |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02420 |
ZRE17#..GCC,TAIW |
1 | ||
| 52611-02420 |
ZRE17#..GCC,TAIW |
1 | ||
| 52611-02600 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52611-02600 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02540 |
ZRE17#..GCC,TAIW |
1 | ||
| 53112-02540 |
ZRE17#..GCC,TAIW |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-05170 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| 90467-05170 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02720 |
ZRE172..TAIW;ZRE171,173..GLI..GCC |
1 | ||
| 81481-02720 |
ZRE172..TAIW;ZRE171,173..GLI..GCC |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02710 |
ZRE172..TAIW;ZRE171,173..GLI..GCC |
1 | ||
| 81482-02710 |
ZRE172..TAIW;ZRE171,173..GLI..GCC |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-T0009 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90178-T0011 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5102 | ||||

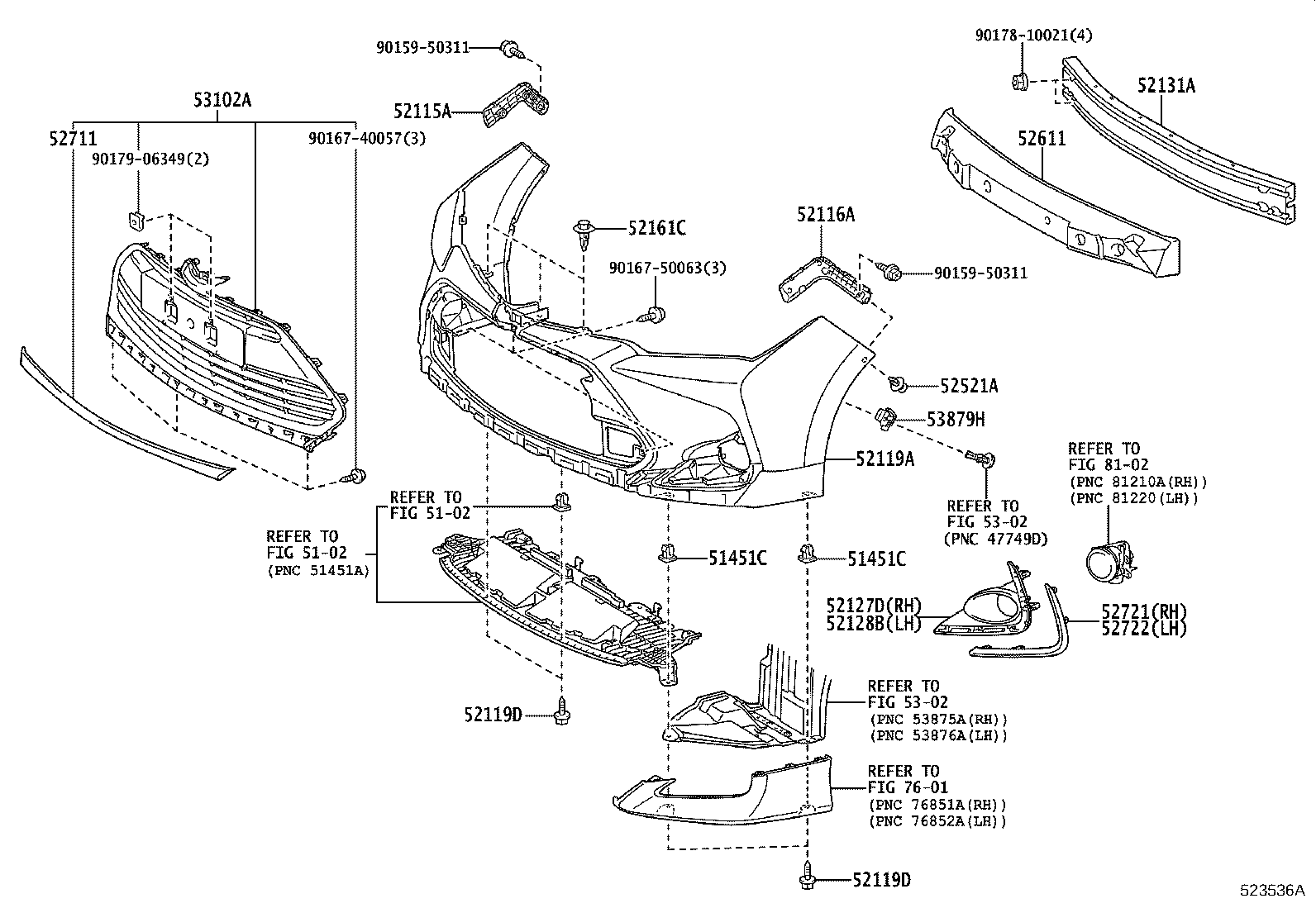

(1709- )GLI..GCC ; (1709- )ZRE172..G
X PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
NDE170,ZRE17#..GCC,IND,TAIW |
4 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02390 |
ZRE17#..GCC,TAIW |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02380 |
ZRE17#..GCC,TAIW |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2906 |
ZRE172..G;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52119-0Z980 |
ZRE17#..GCC,TAIW PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NZE170,ZRE17#..GCC,PKN,TAIW |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02570 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02560 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-02250 |
ZRE17#..GCC,TAIW |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K060 |
ZRE17#..GCC,TAIW |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02420 |
ZRE17#..GCC,TAIW |
1 | ||
| 52611-02600 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02270 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-02390 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7601 | ||||
| 8102 | ||||
