ZRE171L-GEXDKV (2016)

Toyota Corolla/Altis

Production Oct 2016 - Mar 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ZRE171..G

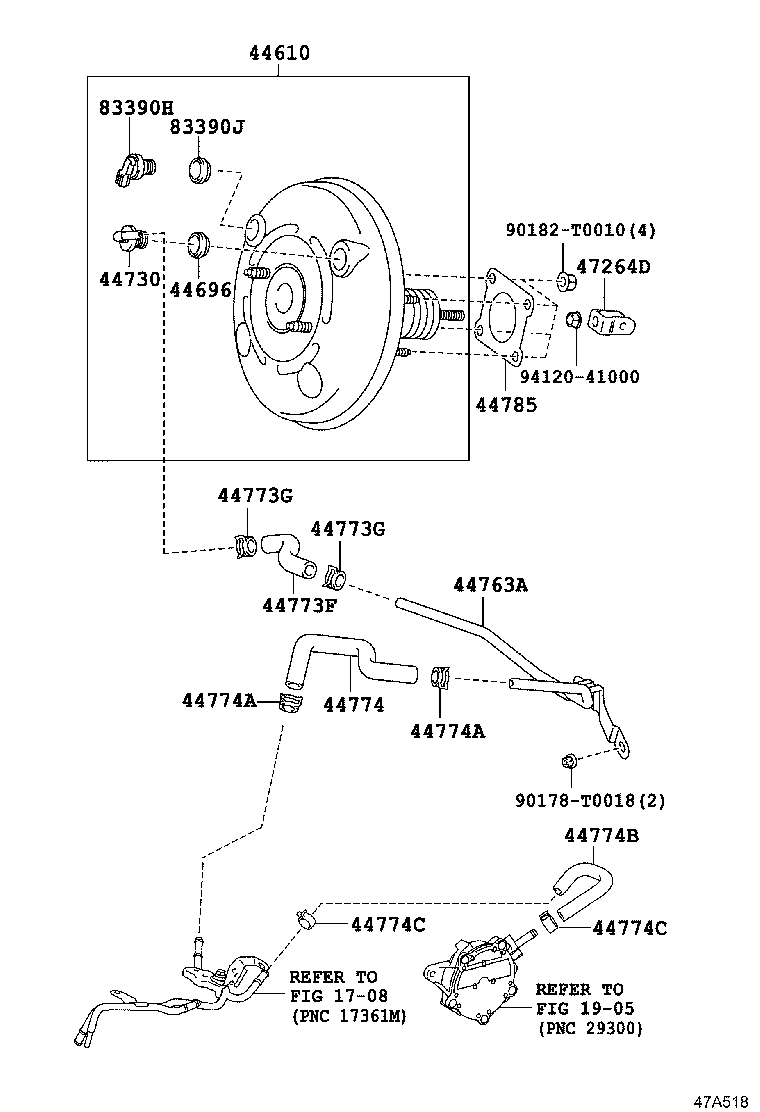

Click highlighted areas on diagram

diagram 1708 1905 44610 44696 44730 44763A 44773F 44773G 44773G 44774 44774A 44774A 44774B 44774C 44774C 44785 47264D 83390H 83390J 90178T0018 90182T0010 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02D00

ZRE171..CVT..GCC

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZRE171..CVT..GCC

 2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02260

ZRE171..CVT..GCC

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TAIW,TH

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02120

ZRE17#..GCC,TAIW

 1
Common parts
90178-T0018
90182-T0010
94120-41000
Linked diagrams
1708
1905
