Toyota Corolla/altis ZRE171 PARKING BRAKE & CABLE

ZRE171L-GEXDKV (2016)

Toyota Corolla/Altis

Production Oct 2016 - Mar 2019

Engine 1ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1610- )GCC,TAIW ; (1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703- )IND ; (1707

Click highlighted areas on diagram

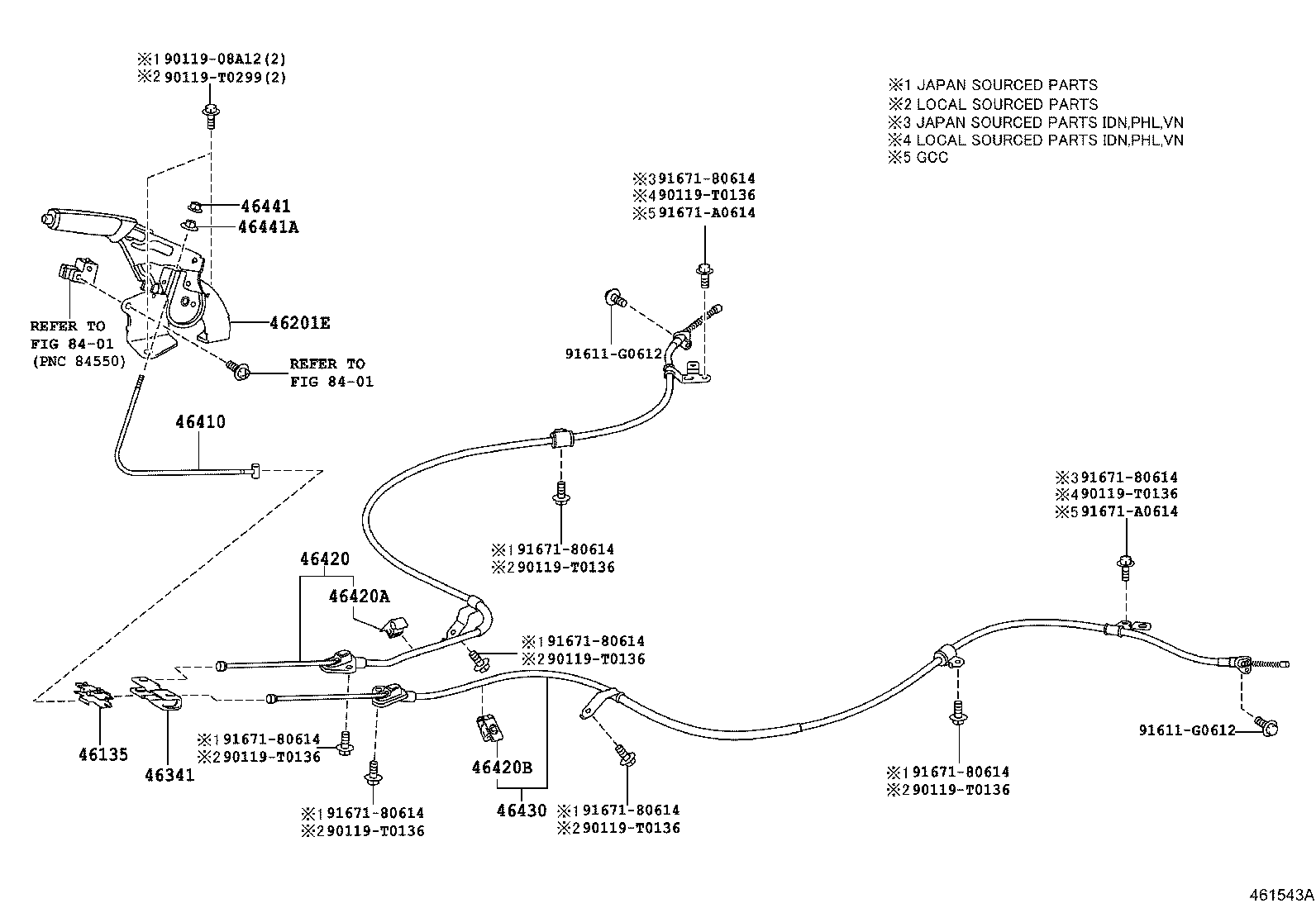

REAR DISC BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02400C0	ZRE171,173..XLI..GCC BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-12430C0	ZRE171..CVT..XLI LOW FLEET PACKAGE,BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-12430C0	ZRE171..CVT..XLI XLI LOW PLUS,BLACK,TRIM0#,1#	08/2018 - 03/2019	1
46201-12430C0	ZRE171..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-02391C0	ZRE171..G;ZRE172..PKN;ZRE172..18E..TH BLACK,TRIM0#,2#	11/2016 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12300	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46410-12300	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46410-02130	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46410-12300	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02320	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46420-12830	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46420-12830	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46420-12830	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-12020	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46402-12020	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46402-12020	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46402-02050	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-12020	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46402-12020	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46402-12020	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46402-02050	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12720	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46430-12720	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46430-12720	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46430-02330	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	ZRE172..CVT..VN;ZRE171,173..LHD..(16E,16G,16V,20V,XLI)..(GCC,GEN,PHL)	10/2016 - 12/2999	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91671-A0614
Linked diagrams
8401

(1610- )ZRE171..XLI..GCC ; (1611- )16E,16G,18G..IDN,PHL ; (1709- )18E..VN

Click highlighted areas on diagram

REAR DRUM BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02400C0	ZRE171,173..XLI..GCC BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-12430C0	ZRE171..CVT..XLI LOW FLEET PACKAGE,BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-12430C0	ZRE171..CVT..XLI XLI LOW PLUS,BLACK,TRIM0#,1#	08/2018 - 03/2019	1
46201-12430C0	ZRE171..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1#	10/2016 - 03/2019	1
46201-02391C0	ZRE171..G;ZRE172..PKN;ZRE172..18E..TH BLACK,TRIM0#,2#	11/2016 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12300	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46410-12300	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46410-02130	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46410-12300	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02320	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46420-12830	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46420-12830	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46420-12830	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-12020	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46402-12020	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46402-12020	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46402-02050	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-12020	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46402-12020	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46402-12020	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46402-02050	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12720	ZRE171..XLI..GCC LOW GRADE PACKAGE	10/2016 - 03/2019	1
46430-12720	ZRE171..CVT..XLI LOW FLEET PACKAGE	10/2016 - 03/2019	1
46430-12720	ZRE171..CVT..XLI XLI LOW PLUS	08/2018 - 03/2019	1
46430-02330	ZRE17#..GCC,TAIW	10/2016 - 03/2019	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	ZRE172..CVT..VN;ZRE171,173..LHD..(16E,16G,16V,20V,XLI)..(GCC,GEN,PHL)	10/2016 - 12/2999	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91611-G0612
91671-80614
91671-A0614
Linked diagrams
8401
