ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..6F ; (1310- )ZRE171..GCC

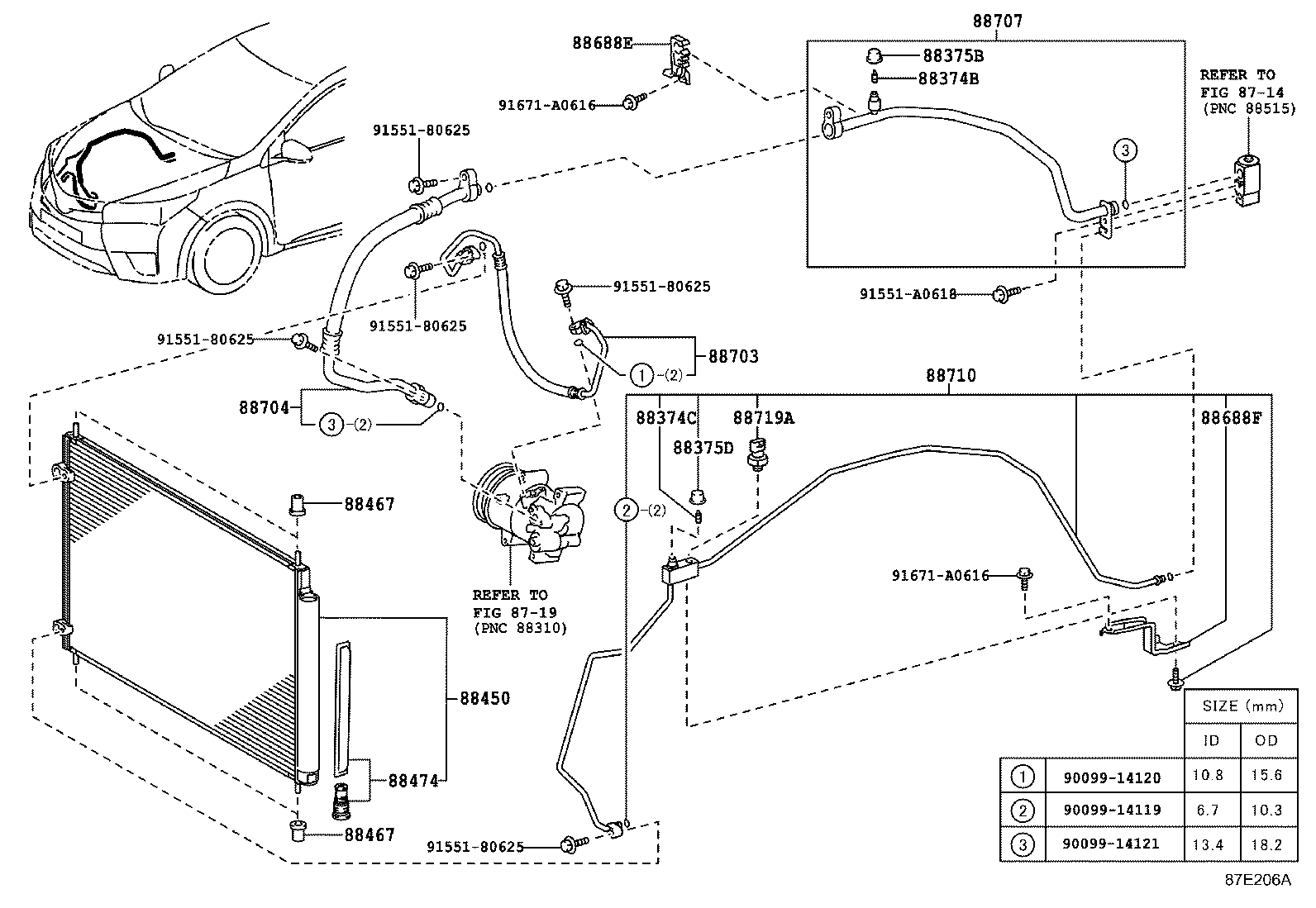

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88474 88688E 88688F 88703 88704 88707 88710 88719A 9009914119 9009914120 9009914121 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 91671A0616 91671A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02360

ZRE171,173..4FC..GCC

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
88474 - DRYER, COOLER
88474-17010

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-02840

ZRE171,173..4FC..GCC

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-02A00

ZRE171,173..4FC..GCC

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02A10

ZRE171,173..4FC..GCC

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02A20

ZRE171..4FC..GCC

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-02340

ZRE171..4FC..GCC

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02830

ZRE171..4FC..GCC

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
Common parts
90099-14119
90099-14120
90099-14121
91551-80625
91551-A0618
91671-A0616
Linked diagrams
8714
8719
