ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1409)ZZE172 ; (1310- )GCC,TAIW

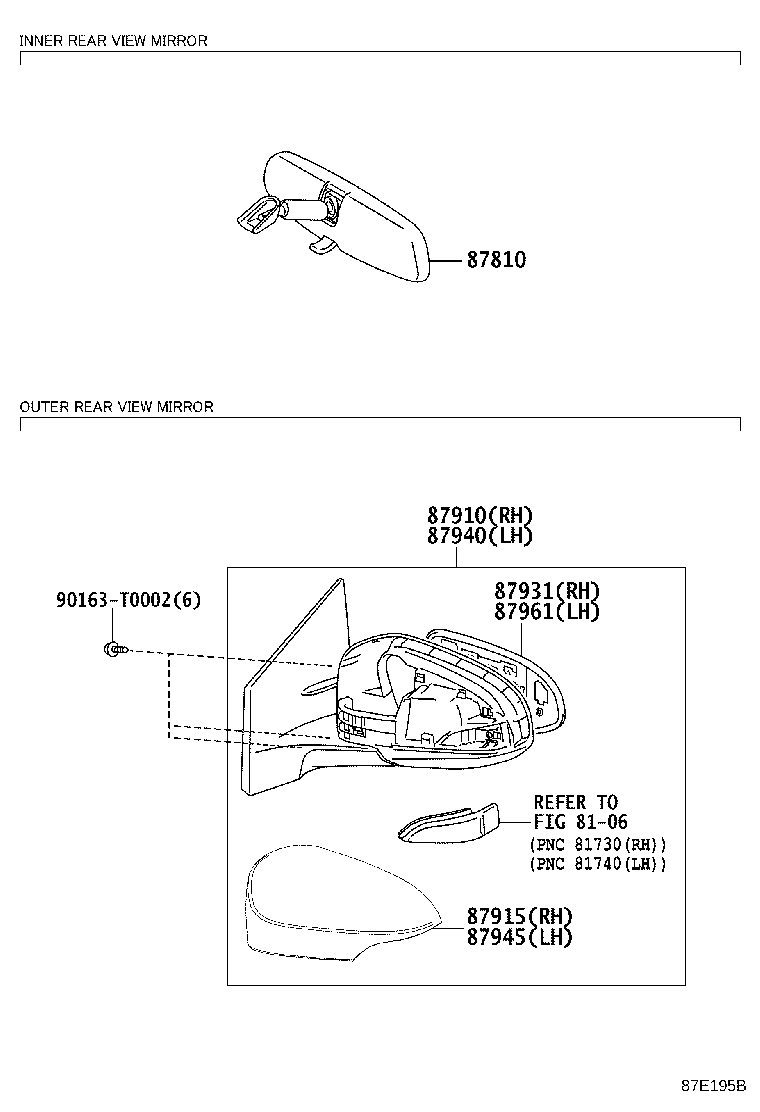

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 87931 87940 87945 87961 90163T0002
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-02908

ZRE171..(4FC,6F)..XLI..GCC

PAINT REQ.,IRAQ SPEC

 1
87910-02910

ZRE171,173..4FC..XLI..GCC

PAINT REQ.

 1
87910-02908

ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC

PAINT REQ.,IRAN SPEC

 1
87915 - COVER, OUTER MIRROR, RH
87915-06911

ZRE171,173..4FC..GCC

PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-02K00

ZRE173..4FC;ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC

IRAN SPEC

 1
87931-02K00

ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC

IRAQ SPEC

 1
87931-02K20

ZRE171,173..4FC..GCC

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-02908

ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC

PAINT REQ.,IRAN SPEC

 1
87940-02908

ZRE171..(4FC,6F)..XLI..GCC

PAINT REQ.,IRAQ SPEC

 1
87940-02910

ZRE171,173..4FC..XLI..GCC

PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-06911

ZRE171,173..4FC..GCC

PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-02J40

ZRE173..4FC;ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC

IRAN SPEC

 1
87961-02J40

ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC

IRAQ SPEC

 1
87961-02J60

ZRE171,173..4FC..GCC

 1
Common parts
90163-T0002
Linked diagrams
8106
