ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )4FC..N ; (1310- )ZRE171..GCC,GEN,PHL,SGP,TH ; (1310- )NDE170,NZE17

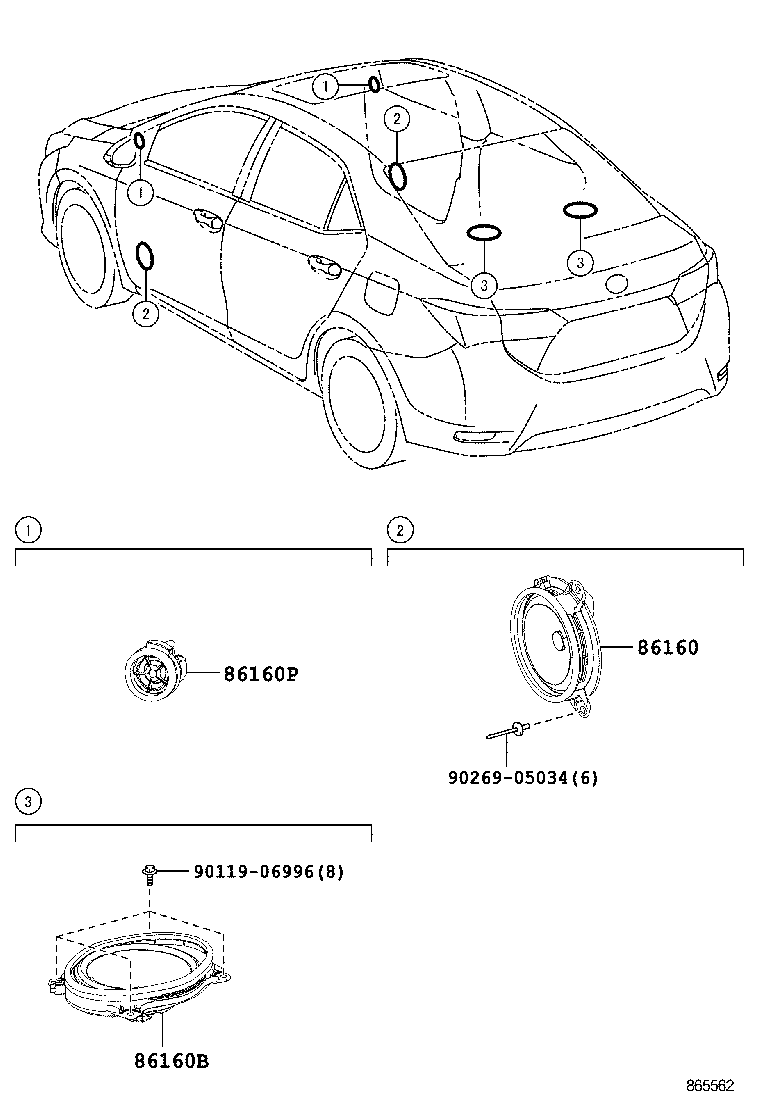

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9011906996 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0K350

ZZE172;ZRE171..XLI..GCC;ZRE172..TAIW..(D,E)

 2
86160B - SPEAKER ASSY, REAR
86160-02C90

ZRE172,ZZE172..GEN,TAIW;ZRE171,173..(4FC,6F)..GCC

 2
Common parts
90119-06996
90269-05034
