ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1310-1610)GCC,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,SGP,TH ; (1405-1703)IND ; (1407

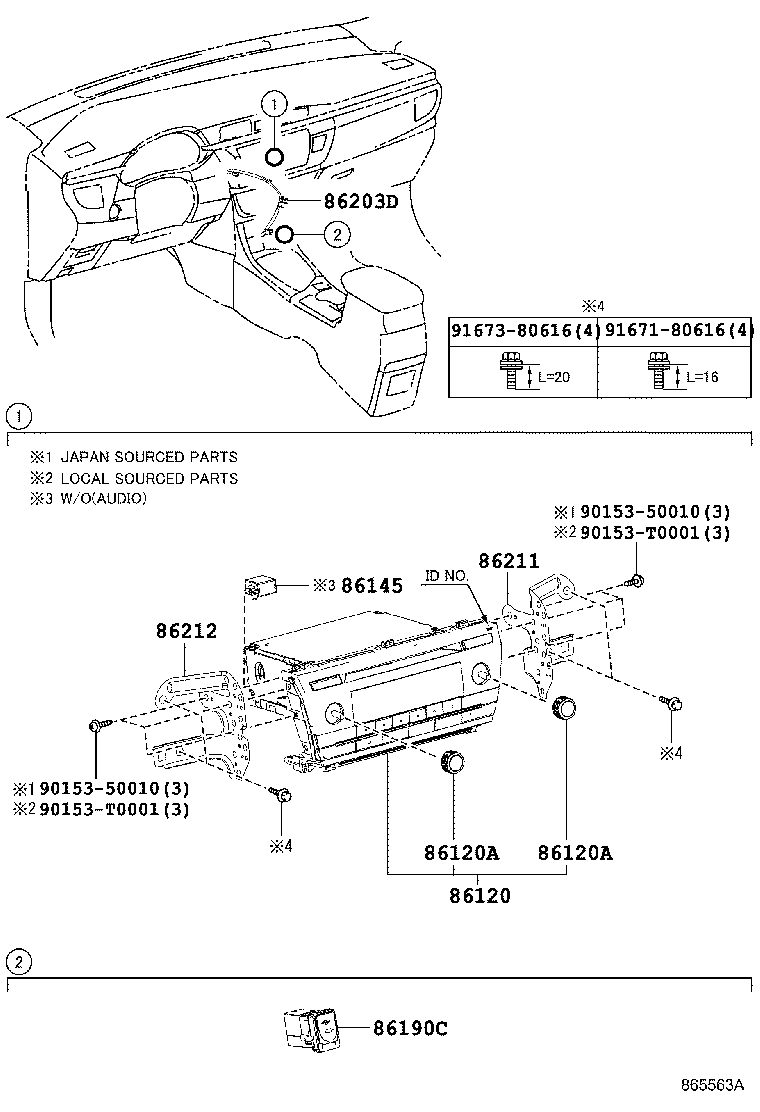

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86145 86190C 86203D 86211 86212 9015350010 9015350010 90153T0001 90153T0001 9167180616 9167380616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02G30

ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC

PANASONIC,ID=528CE,AUDIO-AM/FM & CD & USB & 4SPEAKER

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25217

ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC

AUDIO-AM/FM & CD & USB & 4SPEAKER

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25217

ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC

AUDIO-AM/FM & CD & USB & 4SPEAKER

 2
86145 - CONNECTOR, ANTENNA MALE
86145-52010

ZRE171,173..4FC..GCC

 1
86211 - BRACKET, RADIO, NO.1
86211-02340

ZRE171,173..4FC..GCC

 1
86212 - BRACKET, RADIO, NO.2
86212-02330

ZRE171,173..4FC..GCC

 1
Common parts
90153-50010
90153-T0001
91671-80616
91673-80616

ILLUST NO. 2 OF 3(1310- )

Click highlighted areas on diagram

CONDENSER

diagram 86011V 9011906915 90119T0130
Part # Description Qty Price
86011V - CONDENSER, RADIO SETTING
90980-04204

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
Common parts
90119-06915
90119-T0130

ILLUST NO. 3 OF 3(1310- )

Click highlighted areas on diagram

I-POD/VTR CABLE

diagram 86723C
Part # Description Qty Price
