ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )NZE170,ZRE171,ZZE172..4FC

Click highlighted areas on diagram

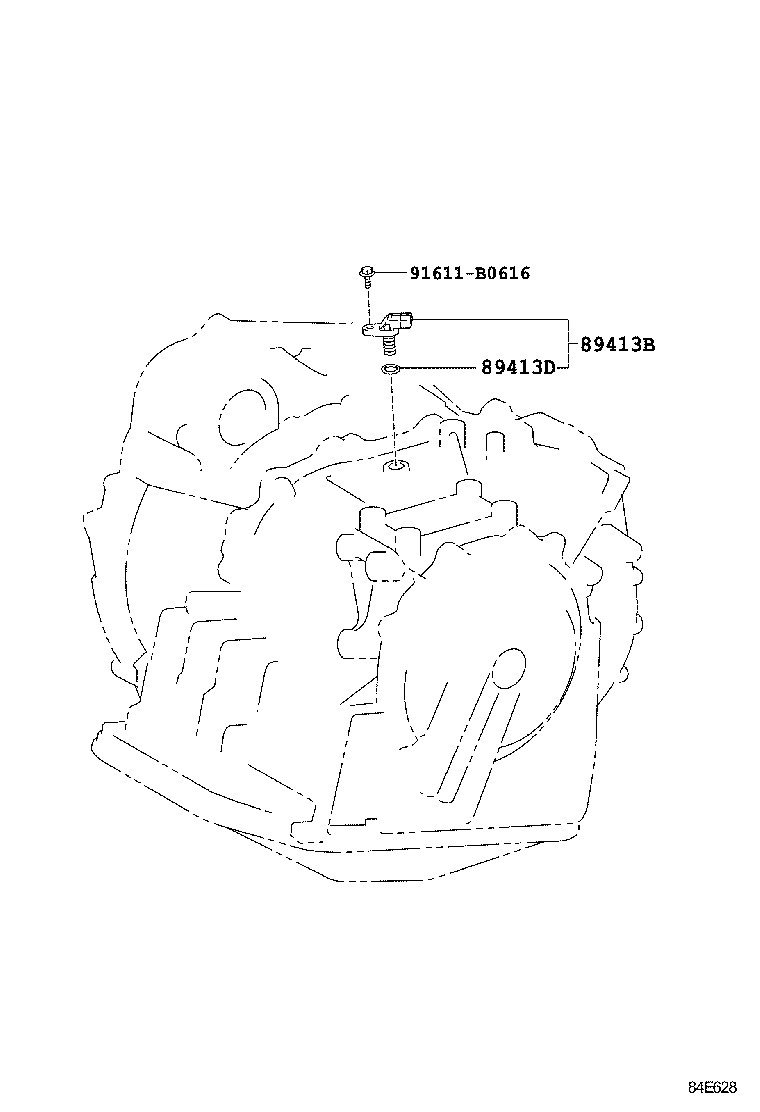

U340E,U341E,U441E

diagram 89413B 89413D 91611B0616
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

NZE170,ZRE171,ZZE172..4FC

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZE170,ZRE171,ZZE172..4FC

 1
Common parts
91611-B0616

(1507- )ZRE172..CVT ; (1507- )ZRE171..CVT..CNG,HTWCF,HTWVM ; (1507- )ZRE17

Click highlighted areas on diagram

K313

diagram 89413D 89413D 89413M 89413N 89413P 89637K 9155180616 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZE170,ZRE171,ZZE172..4FC

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZE170,ZRE171,ZZE172..4FC

 1
Common parts
91551-80616
91611-B0616
