Toyota Corolla/altis ZRE171 REAR COMBINATION LAMP

ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015

Engine 1ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

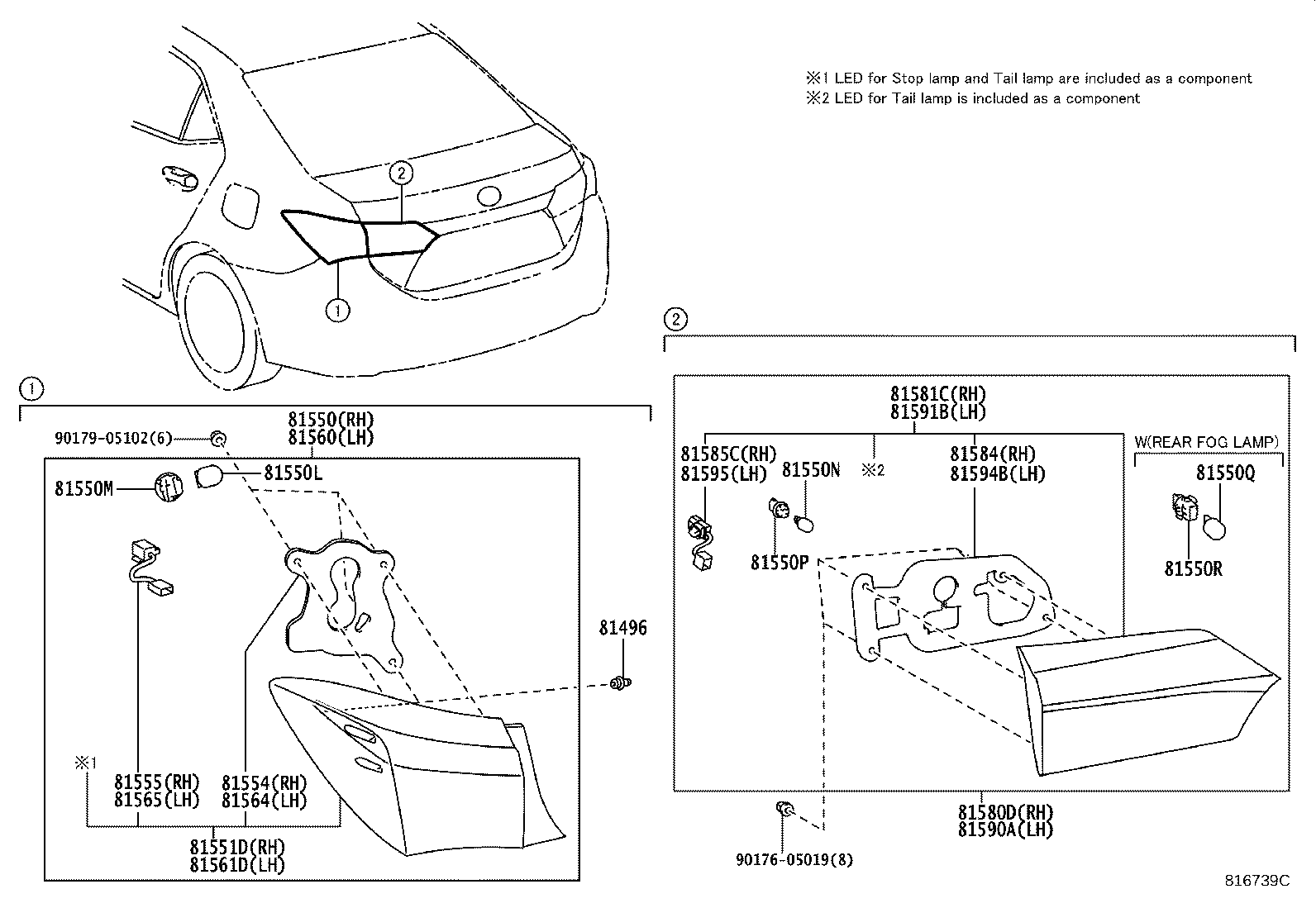

(1310-1610)GCC,TAIW

Click highlighted areas on diagram

STOP LAMP(LED)

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 21W,AMBER	10/2013 - 12/2015	2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60026	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550N - BULB, BACK UP LAMP
90981-11059	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 16W	10/2013 - 12/2015	2
81550P - SOCKET, BACK UP LAMP
90075-60001	ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81564-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81580D - LAMP ASSY, REAR, RH
81580-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81584 - PACKING, REAR LAMP RH
81584-02570	ZRE172..TAIW;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81590A - LAMP ASSY, REAR, LH
81590-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81594B - PACKING, REAR LAMP LH
81584-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
Common parts
90176-05019
90179-05102

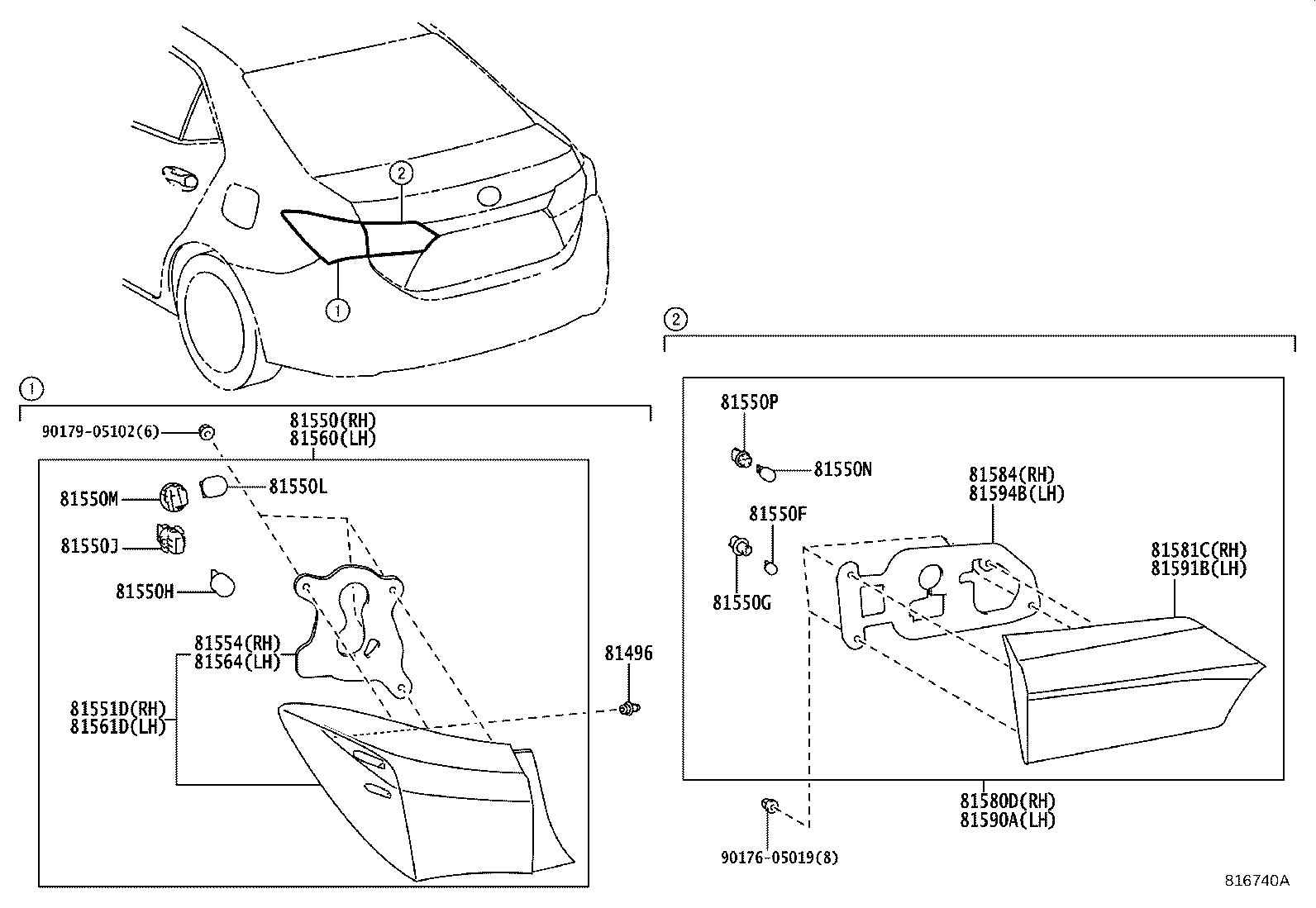

(1310-1409)ZZE172 ; (1310-1610)GCC

Click highlighted areas on diagram

STOP LAMP(BULB)

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81550F - BULB, TAIL LAMP
99132-12050	ZRE171,173..4FC..GCC 12V 5W	10/2013 - 12/2015	2
81550G - SOCKET, TAIL LAMP
90075-60077	ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550H - BULB, TAIL & STOP LAMP
90981-13044	ZRE171,173..4FC..GCC 12V 21/5W	10/2013 - 12/2015	2
81550J - SOCKET, TAIL & STOP LAMP
90075-60079	ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 21W,AMBER	10/2013 - 12/2015	2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60026	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81550N - BULB, BACK UP LAMP
90981-11059	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 16W	10/2013 - 12/2015	2
81550P - SOCKET, BACK UP LAMP
90075-60001	ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81564-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-02790	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81580D - LAMP ASSY, REAR, RH
81580-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81584 - PACKING, REAR LAMP RH
81584-02570	ZRE172..TAIW;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81590A - LAMP ASSY, REAR, LH
81590-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81594B - PACKING, REAR LAMP LH
81584-02570	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
Common parts
90176-05019
90179-05102
