Toyota Corolla/altis ZRE171 HEADLAMP

ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015

Engine 1ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

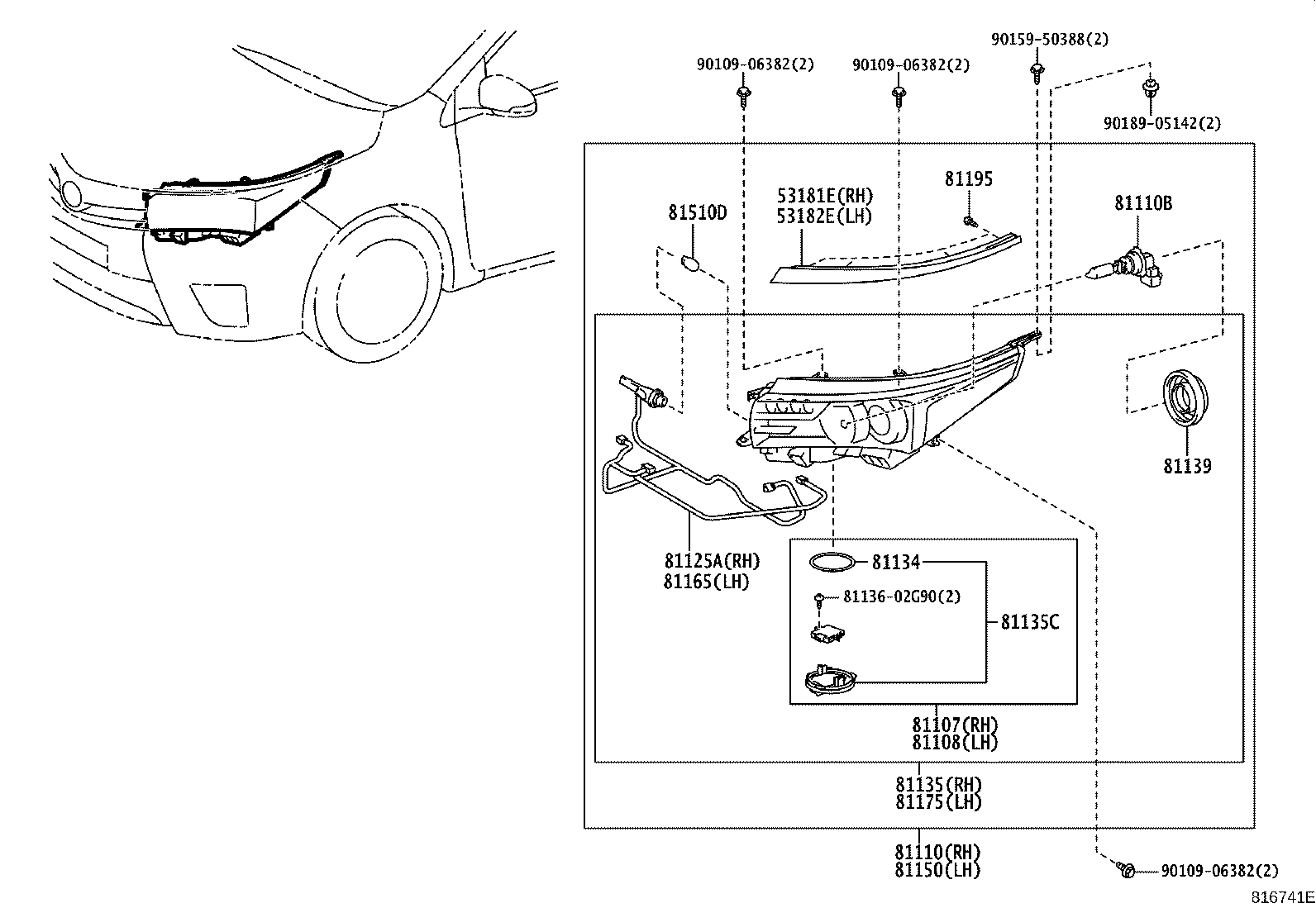

LED HEADLAMP

Part #	Description	Period	Qty
53181E - COVER, HEADLAMP, RH
53181-02020	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
53182E - COVER, HEADLAMP, LH
53182-02020	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81110 - HEADLAMP ASSY, RH
81110-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V65W(SAE),60W(ECE)	10/2013 - 12/2015	2
81125A - CORD, HEADLAMP, RH
81125-02G80	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81135 - UNIT ASSY, HEADLAMP, RH
81145-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81139 - COVER, HEADLAMP SOCKET
81139-02G90	ZRE171,173..4FC..GCC	10/2013 - 12/2015	4
81150 - HEADLAMP ASSY, LH
81150-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81165 - CORD, HEADLAMP, LH
81125-02G80	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81175 - UNIT ASSY, HEADLAMP, LH
81185-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81195 - SCREW, HEADLAMP
90168-40059	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	8
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 21W,AMBER	10/2013 - 12/2015	2
Common parts
81136-02G90
90109-06382
90159-50388
90189-05142

Click highlighted areas on diagram

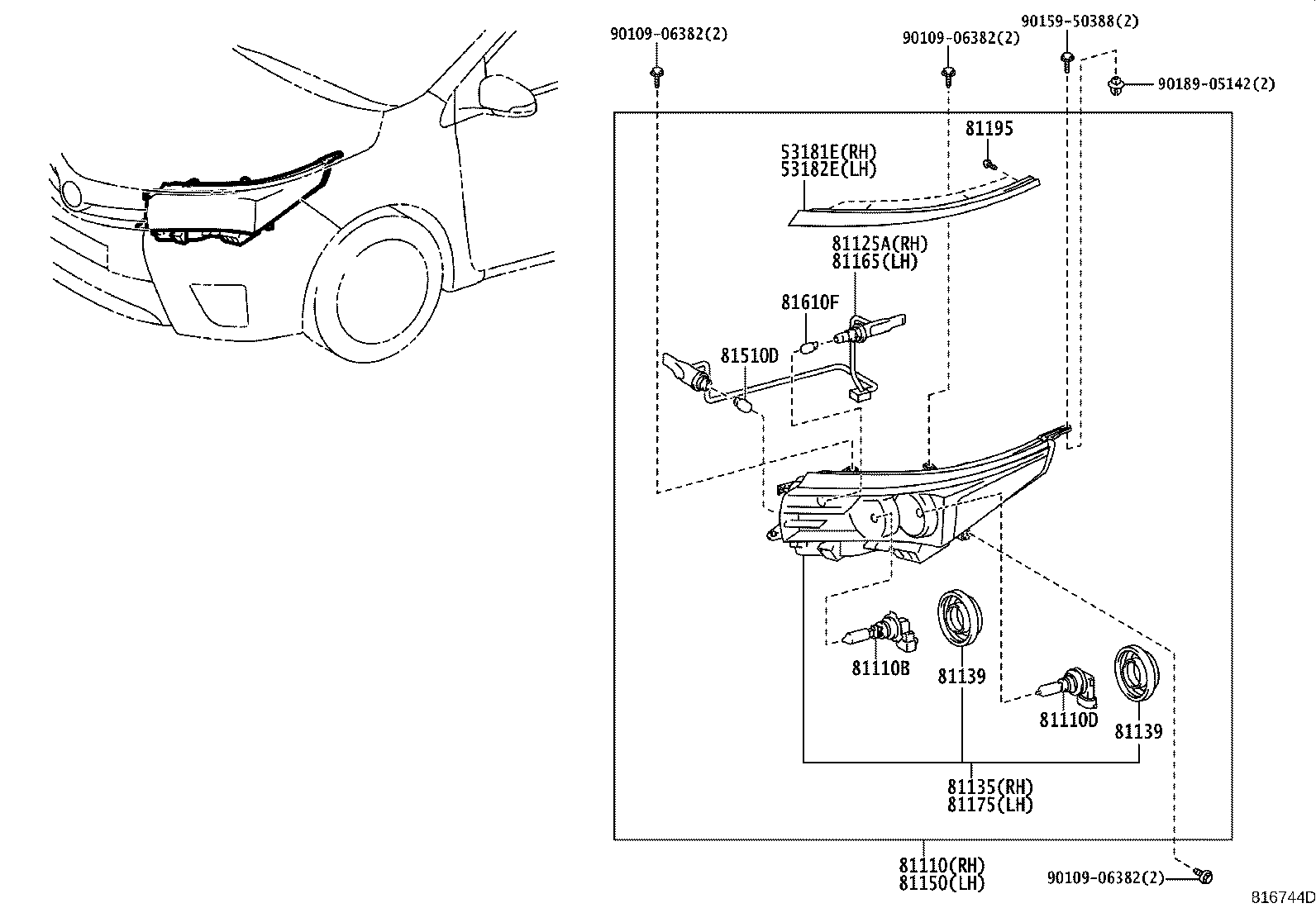

HALOGEN HEADLAMP

Part #	Description	Period	Qty
53181E - COVER, HEADLAMP, RH
53181-02020	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
53182E - COVER, HEADLAMP, LH
53182-02020	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81110 - HEADLAMP ASSY, RH
81110-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V65W(SAE),60W(ECE)	10/2013 - 12/2015	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 55W,HALOGEN	10/2013 - 12/2015	2
81125A - CORD, HEADLAMP, RH
81125-02G80	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81135 - UNIT ASSY, HEADLAMP, RH
81145-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81139 - COVER, HEADLAMP SOCKET
81139-02G90	ZRE171,173..4FC..GCC	10/2013 - 12/2015	4
81139 - COVER, HEADLAMP SOCKET
81139-02G90	ZRE171,173..4FC..GCC	10/2013 - 12/2015	4
81150 - HEADLAMP ASSY, LH
81150-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81165 - CORD, HEADLAMP, LH
81125-02G80	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
81175 - UNIT ASSY, HEADLAMP, LH
81185-02E50	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
81195 - SCREW, HEADLAMP
90168-40059	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	8
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 21W,AMBER	10/2013 - 12/2015	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069	ZRE171..16J..CNG;ZRE171,173..4FC..GCC 12V 5W	10/2013 - 12/2015	2
Common parts
90109-06382
90159-50388
90189-05142
