ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis
ILLUST NO. 2 OF 3(1310- )HTWC,HTWCF,HTWVM
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02730 |
ZRE171,173..4FC..GCC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02530 |
ZRE171,173..4FC..GCC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-02040 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
ZRE171,173..4FC..GCC |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
ZRE171,173..4FC..GCC |
5 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1310- )DCR,HTWC,HTWCF,HTWVM
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02460 |
ZRE171,173..4FC..GCC |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02460 |
ZRE171,173..4FC..GCC |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
ZRE171,173..4FC..GCC |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
ZRE171,173..4FC..GCC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02160 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-06030 |
ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90269-06017 | ||||
| 90469-06005 | ||||
| 90469-T0003 | ||||
| 91673-80620 | ||||

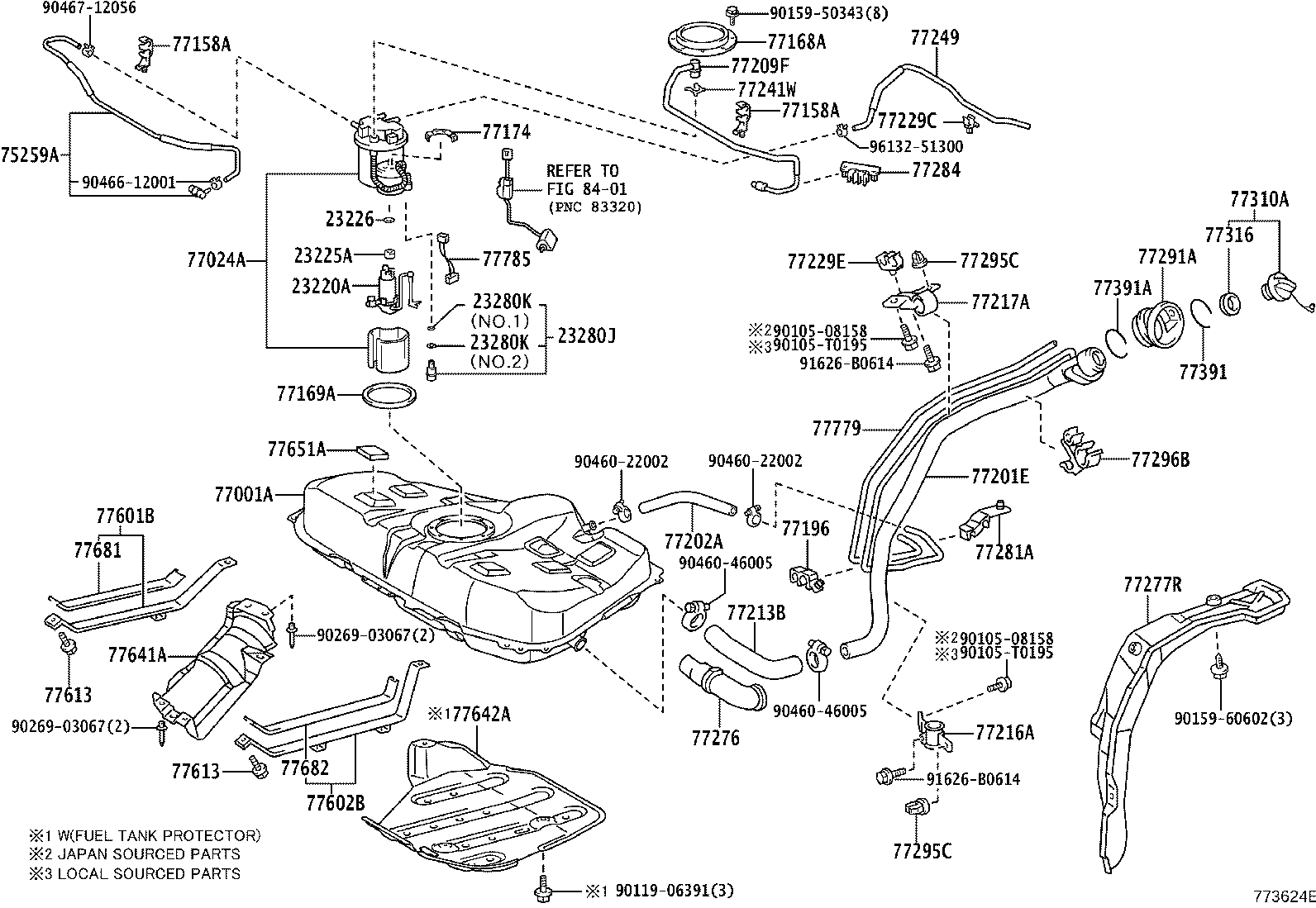

ILLUST NO. 1 OF 3(1310- )ZZE172 ; (1310- )GCC,TAIW
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0T230 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0V030 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 23225-0V030 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-08020 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 23280-21010 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1:REFER ILLUST. |
1 | ||
| 90301-04013 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.2:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1:REFER ILLUST. |
1 | ||
| 90301-04013 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.2:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2:REFER ILLUST. |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-02060 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-02430 |
ZRE171,173..4FC..GCC |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02270 |
ZRE171,173..4FC..GCC |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-02020 |
ZRE171,173..4FC..GCC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
ZRE171,173..4FC..GCC |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-02140 |
ZRE171,173..4FC..GCC |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12060 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02430 |
ZRE171,173..4FC..GCC |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC L=340 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02200 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02140 |
ZRE171,173..4FC..GCC |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02100 |
ZRE171,173..4FC..GCC |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12110 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-12100 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-02030 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12120 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02200 |
ZRE171,173..4FC..GCC |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12110 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-52100 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02190 |
ZRE171,173..4FC..GCC |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12070 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ZRE171,173..4FC..GCC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-06110 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-02120 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(L) |
1 | ||
| 77601-12400 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(J) |
1 | ||
| 77601-02090 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02090 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77602-02150 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(L) |
1 | ||
| 77602-12310 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(J) |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-02100 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(L) |
1 | ||
| 77642-12041 |
ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC,(J) |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZRE171,173..4FC..GCC |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77616-68010 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC (J) |
1 | ||
| 77616-02050 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC (L) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02060 |
NDE170,NZE170,ZRE17# (L) |
1 | ||
| 77681-12070 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC (J) |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-02140 |
ZRE171,173..4FC..GCC |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02110 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90119-06391 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-03067 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
