ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

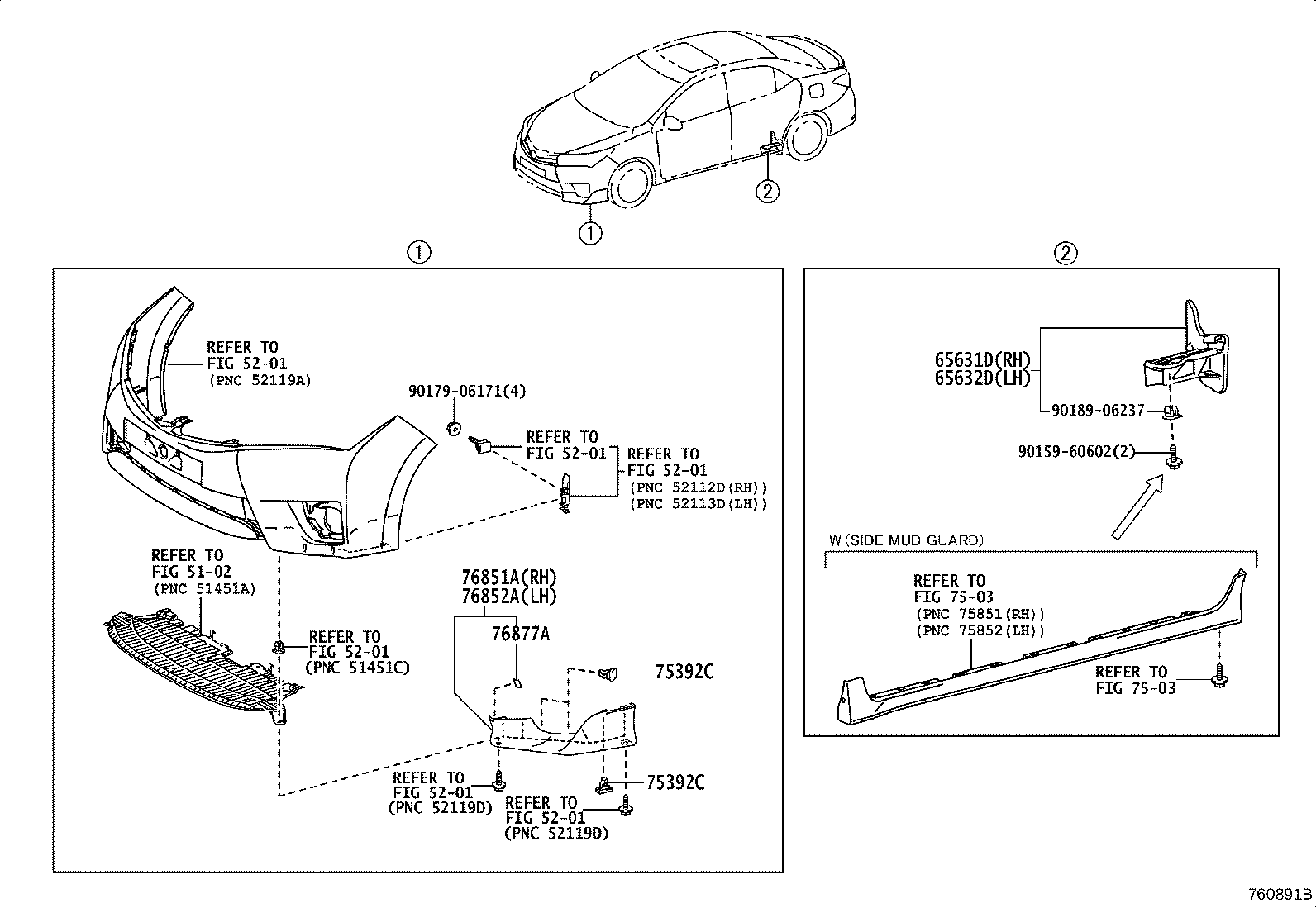

ILLUST NO. 1 OF 2(1310-1610)GCC,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1312-1610)ZRE171..G ; (14

Click highlighted areas on diagram

FRONT & SIDE

diagram 5102 5201 5201 5201 5201 5201 5201 65631D 65632D 7503 7503 75392C 75392C 76851A 76852A 76877A 9015960602 9017906171 9018906237
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-02260

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-02260

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
Common parts
90159-60602
90179-06171
90189-06237
Linked diagrams
5102
5201
7503

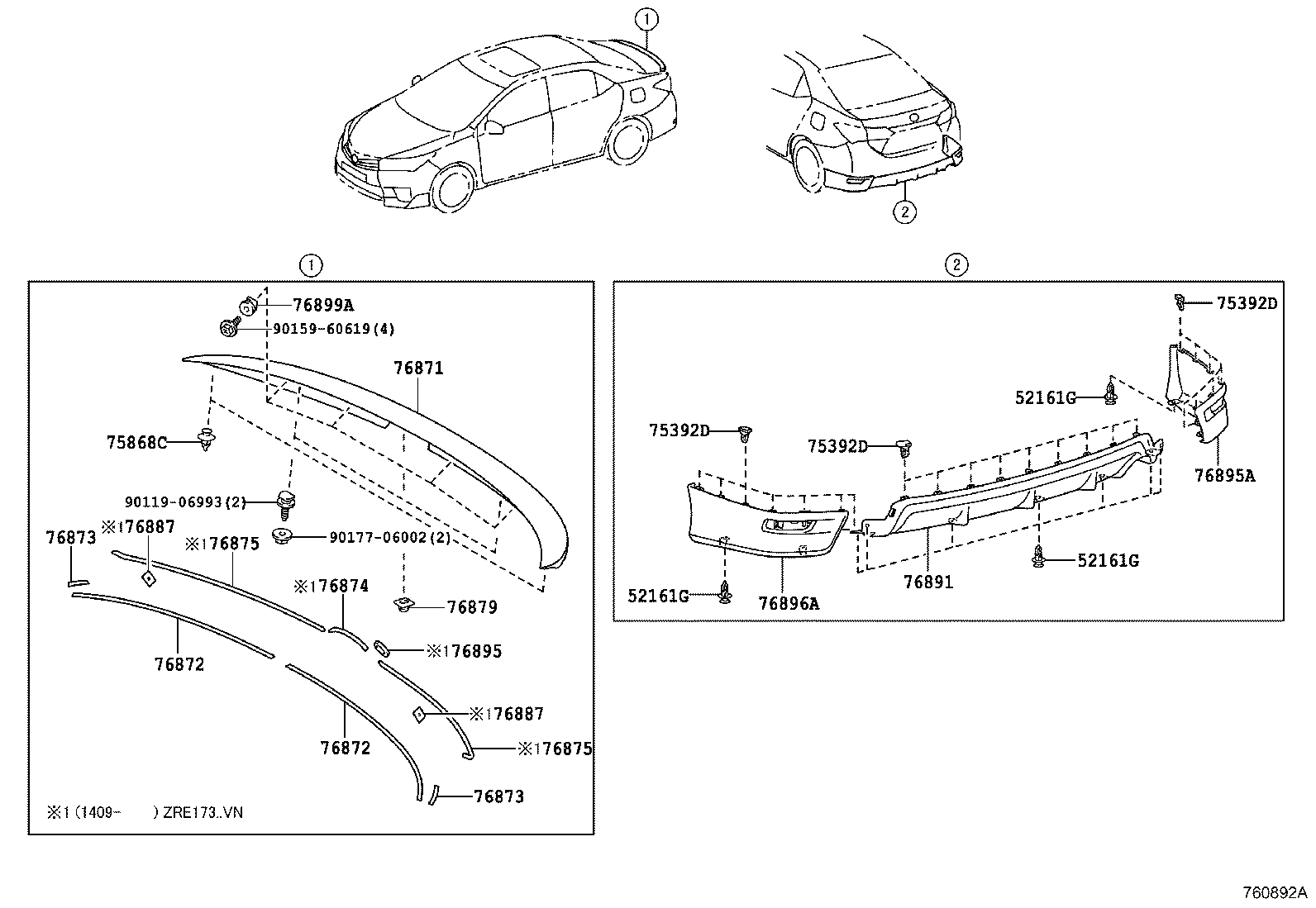

ILLUST NO. 2 OF 2(1310- )4FC..N ; (1310- )ZRE171..GCC,GEN,PHL,SGP,TH ; (1310- )NDE170,NZE17

Click highlighted areas on diagram

REAR

diagram 52161G 52161G 52161G 75392D 75392D 75392D 75868C 76871 76872 76872 76873 76873 76874 76875 76875 76879 76887 76887 76891 76895 76895A 76896A 76899A 9011906993 9015960619 9017706002
Part # Description Qty Price
Common parts
90119-06993
90159-60619
90177-06002
