ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis

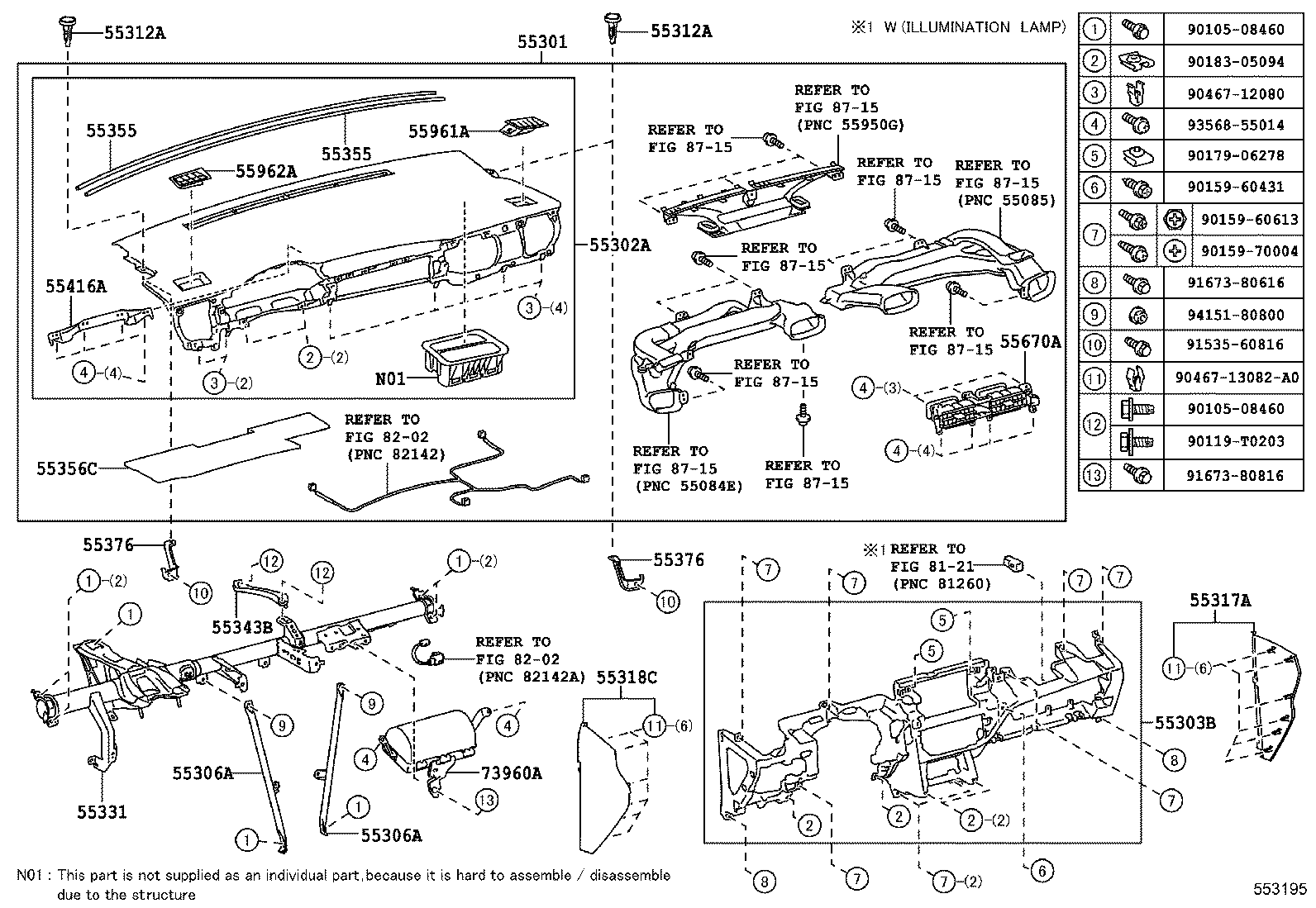

ILLUST NO. 1 OF 2(1310-1409)ZZE172 ; (1310- )GCC,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-02080C0 |
ZRE171,173..XLI..GCC LOW FLEET PACKAGE&AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55301-02080C0 |
ZRE171..XLI..GCC LOW GRADE PACKAGE&AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55301-02100C0 |
ZRE171..XLI..GCC LOW FLEET PACKAGE,BLACK,TRIM0#,1# |
1 | ||
| 55301-02120C0 |
ZRE171,173..GCC BLACK,TRIM0#,1# |
1 | ||
| 55301-02110C0 |
ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55301-02101C0 |
ZRE171..4FC..XLI..GCC LOW FLEET PACKAGE,BLACK,TRIM0#,1# |
1 | ||
| 55301-02101C0 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1# |
1 | ||
| 55301-02121C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55301-02081C0 |
ZRE171,173..(4FC,6F)..XLI..GCC LOW FLEET PACKAGE&AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55301-02100C0 |
ZRE171..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1# |
1 | ||
| 55301-02081C0 |
ZRE171..(4FC,6F)..XLI..GCC LOW GRADE PACKAGE&AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02700C0 |
ZRE171,173..LHD..(16E,GLI,XLI) BLACK,TRIM0#,1# |
1 | ||
| 55302-02701C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55302-02700C0 |
ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02421C0 |
ZRE171,173..GCC BLACK,TRIM0#,1# |
1 | ||
| 55303-02420C0 |
ZRE171,173..GCC BLACK,TRIM0#,1# |
1 | ||
| 55303-02430C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02600 |
ZRE171,173..4FC..GCC LH |
1 | ||
| 55307-02140 |
ZRE171,173..4FC..GCC RH |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02600 |
ZRE171,173..4FC..GCC LH |
1 | ||
| 55307-02140 |
ZRE171,173..4FC..GCC RH |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K060 |
ZRE171,173..4FC..GCC |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K060 |
ZRE171,173..4FC..GCC |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02420C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02190C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02700 |
ZRE171,173..4FC..GCC |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02140 |
ZRE171,173..4FC..GCC |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02310 |
ZRE171,173..4FC..GCC |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02310 |
ZRE171,173..4FC..GCC |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02270 |
ZRE171,173..4FC..GCC |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02110 |
ZRE171,173..4FC..GCC RH |
1 | ||
| 55377-02090 |
ZRE171,173..4FC..GCC LH |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02110 |
ZRE171,173..4FC..GCC RH |
1 | ||
| 55377-02090 |
ZRE171,173..4FC..GCC LH |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-02210 |
ZRE171,173..4FC..GCC |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02430 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 55670-02430 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 55670-02440 |
ZRE171,173..4FC..GCC |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-02120C0 |
ZRE173..GCC;ZRE171..GLI..GCC;ZRE171..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-02160C0 |
ZRE173..GCC;ZRE171..GLI..GCC;ZRE171..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02210 |
ZRE171,173..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 73960-02210 |
ZRE171..16J..CNG;ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 73960-02210 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90119-T0203 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 91535-60816 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8715 | ||||

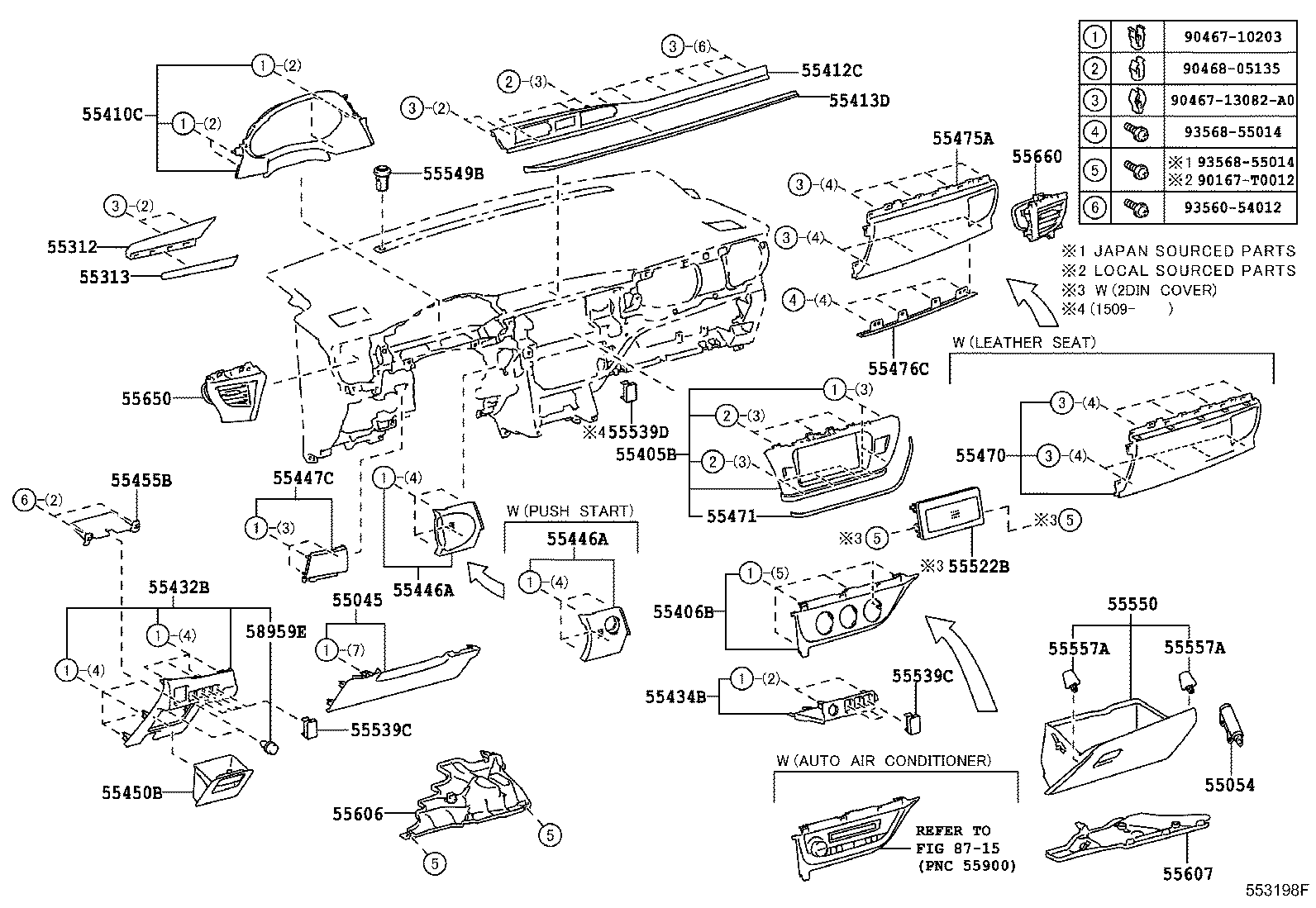

ILLUST NO. 2 OF 2(1310-1409)ZZE172 ; (1310-1610)GCC,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02430C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
ZRE171,173..4FC..GCC |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-02100 |
ZRE171,173..4FC..GCC |
1 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55313-02080B0 |
ZRE171,173..4FC..GCC MD.SILVER,TRIM0#,1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02611C7 |
ZRE171..4FC..GCC;ZRE173..4FC..XLI BLACK MC/IVORY,TRIM0# |
1 | ||
| 55405-02710C7 |
ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK MC/IVORY,TRIM0# |
1 | ||
| 55405-02611C8 |
ZRE171..4FC..GCC;ZRE173..4FC..XLI BLACK MC/GRAY,TRIM1# |
1 | ||
| 55405-02710C8 |
ZRE173..4FC..XLI;ZRE171..(4FC,6F)..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK MC/GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02530 |
ZRE171,173..4FC..GCC |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02180C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-02320 |
ZRE171,173..4FC..GCC |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02300B0 |
ZRE171,173..4FC..GCC MD.SILVER,TRIM0#,1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02520C0 |
ZRE171,173..LHD..(GCC,GEN) BLACK,TRIM0#,1# |
1 | ||
| 55432-02521C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02270C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02410C0 |
ZRE171,173..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02410C0 |
ZRE171,173..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02160C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02180C0 |
ZRE173..GCC;ZRE171..GLI..GCC;ZRE171..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 55450-02180C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02180C0 |
ZRE173..GCC;ZRE171..GLI..GCC;ZRE171..4FC..XLI..GCC BLACK,TRIM0#,1# |
1 | ||
| 55455-02180C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-02250 |
ZRE171,173..4FC..GCC |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02040B0 |
ZRE171,173..4FC..GCC GRAY,TRIM11 |
1 | ||
| 55475-02040A0 |
ZRE171,173..4FC..GCC IVORY,TRIM01 |
1 | ||
| 55475-02040C0 |
ZRE171,173..4FC..GCC BLACK,TRIM01,11 |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-02340B0 |
ZRE171,173..LHD..(16E,GLI,XLI) GRAY,TRIM11 |
1 | ||
| 55476-02340C0 |
ZRE171,173..LHD..(GCC,GEN) BLACK,TRIM01,11 |
1 | ||
| 55476-02320A0 |
ZRE171..G;ZRE171,172..RHD..(16E,18E,18G,GLI,GXLI,XLI)..(GEN,IDN,TH) IVORY,TRIM01 |
1 | ||
| 55476-02320C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM01,2# |
1 | ||
| 55476-02340A0 |
ZRE172..6F..VN;ZRE171,173..LHD..(16E,16G,16V,GLI,XLI) IVORY,TRIM01 |
1 | ||
| 55476-02340 |
ZRE171,173..4FC..GCC |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZRE171,173..4FC..GCC |
1 | ||
| 55522-52020 |
ZRE171,173..4FC..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55539-0D090C0 |
ZRE171,173..4FC..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55539-0D090C0 |
ZRE171,173..4FC..XLI..GCC AUDIO-AM/FM & CD & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-33160C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02450C0 |
ZRE171,173..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02190 |
ZRE171,173..4FC..GCC DRIVER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02370B1 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 55650-02370A1 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,IVORY,TRIM0# |
1 | ||
| 55650-02380A1 |
ZRE171,173..4FC..GCC IVORY,TRIM0# |
1 | ||
| 55650-02370A1 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,IVORY,TRIM0# |
1 | ||
| 55650-02380B1 |
ZRE171,173..4FC..GCC GRAY,TRIM1# |
1 | ||
| 55650-02370B1 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02290A0 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,IVORY,TRIM0# |
1 | ||
| 55660-02290A0 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,IVORY,TRIM0# |
1 | ||
| 55660-02290B0 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 55660-02300A0 |
ZRE171,173..4FC..GCC IVORY,TRIM0# |
1 | ||
| 55660-02300B0 |
ZRE171,173..4FC..GCC GRAY,TRIM1# |
1 | ||
| 55660-02290B0 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,GRAY,TRIM1# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
2 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
