ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1610)GCC,SGP,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1405-1703)IND ; (1407

Click highlighted areas on diagram

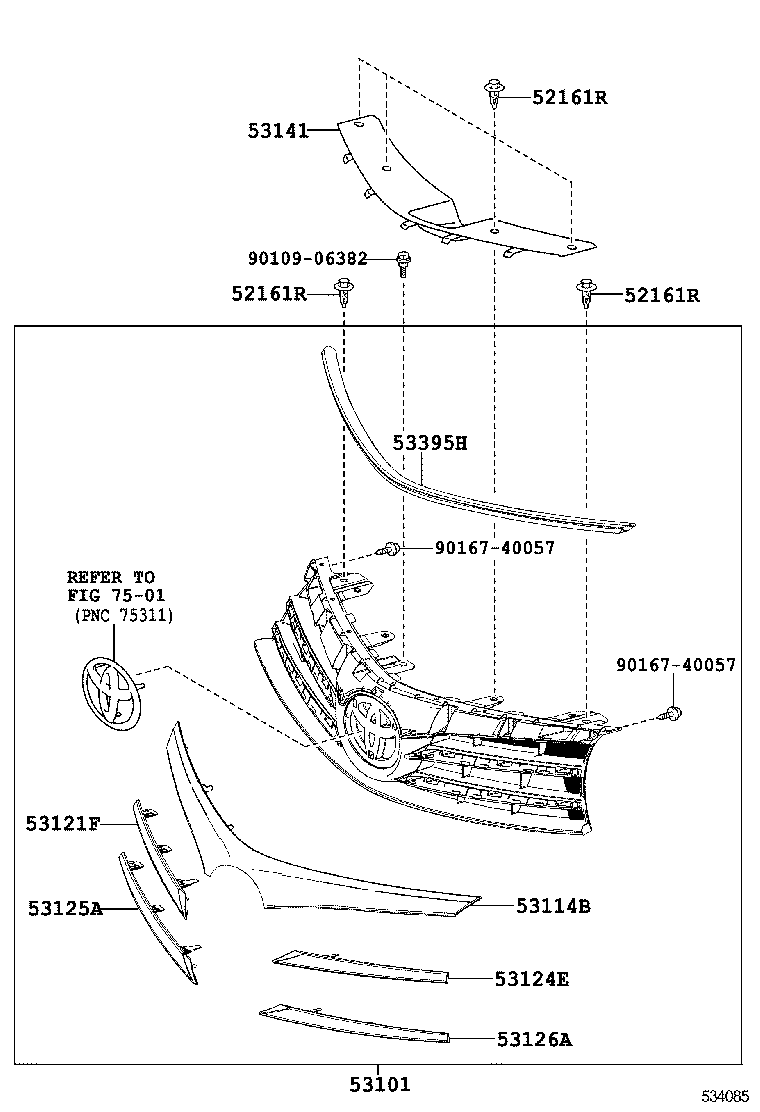

diagram 52161R 52161R 52161R 53101 53114B 53121F 53124E 53125A 53126A 53141 53395H 7501 9010906382 9016740057 9016740057
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

NDE170,ZRE17#..GCC,IND,TAIW

(J)

 6
52161-0K040

ZRE171,173..4FC..GCC

 6
52161-0K060

NDE170,ZRE17#..GCC,IND,TAIW

(L)

 6
52161R - PIECE, FRONT BUMPER
52161-16010

NDE170,ZRE17#..GCC,IND,TAIW

(J)

 6
52161-0K040

ZRE171,173..4FC..GCC

 6
52161-0K060

NDE170,ZRE17#..GCC,IND,TAIW

(L)

 6
52161R - PIECE, FRONT BUMPER
52161-16010

NDE170,ZRE17#..GCC,IND,TAIW

(J)

 6
52161-0K040

ZRE171,173..4FC..GCC

 6
52161-0K060

NDE170,ZRE17#..GCC,IND,TAIW

(L)

 6
53101 - GRILLE SUB-ASSY, RADIATOR
53100-02650

ZRE171,173..4FC..XLI..GCC

PLATED

 1
53114B - GRILLE, RADIATOR, UPPER
53114-02310

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-02220

ZRE171,173..4FC..XLI..GCC

 1
53124E - MOULDING, RADIATOR GRILLE, LOWER LH
53124-02210

ZRE171,173..4FC..XLI..GCC

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53125-02070

ZRE171,173..4FC..XLI..GCC

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53126-02100

ZRE171,173..4FC..XLI..GCC

 1
53141 - COVER, RADIATOR
53141-02110

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-02120

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
Common parts
90109-06382
90167-40057
Linked diagrams
7501
