ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1610)GCC,SGP,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1405-1703)IND ; (1407

Click highlighted areas on diagram

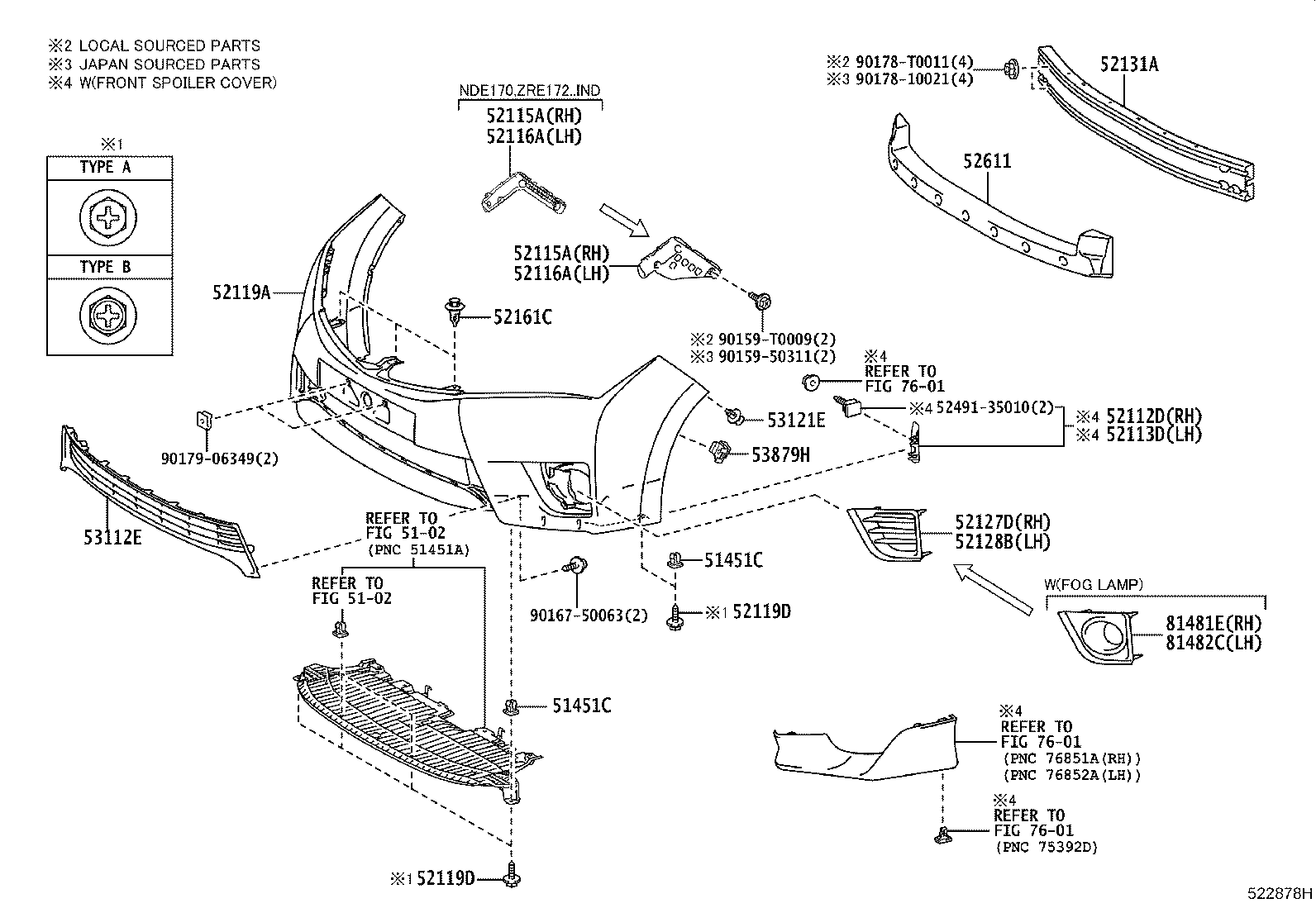

diagram 5102 5102 51451C 51451C 52112D 52113D 52115A 52115A 52116A 52116A 52119A 52119D 52119D 52127D 52128B 52131A 52161C 5249135010 52611 53112E 53121E 53879H 7601 7601 7601 81481E 81482C 9015950311 90159T0009 9016750063 9017810021 90178T0011 9017906349
Part # Description Qty Price
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 4
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02270

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02270

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02270

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02270

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 1
52119A - COVER, FRONT BUMPER
52119-0Z944

ZRE171,173..4FC..GCC

PAINT REQ.

 1
52119D - SCREW, NO.1
90159-60488

ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW

 6
52119D - SCREW, NO.1
90159-60488

ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW

 6
52127D - COVER, FRONT BUMPER HOLE, RH
81481-02440

ZRE171..16J..CNG;ZRE171,173..4FC..XLI..GCC

 1
52128B - COVER, FRONT BUMPER HOLE, LH
81482-02430

ZRE171..16J..CNG;ZRE171,173..4FC..XLI..GCC

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-02250

ZRE171,173..4FC..GCC

 1
52161C - PIECE, FRONT BUMPER
52161-0K060

ZRE171,173..4FC..XLI..GCC

(L)

 3
52161-16010

ZRE171,173..4FC..XLI..GCC

(J)

 3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02330

ZRE171,173..4FC..GCC

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02520

ZRE171,173..4FC..GCC

NO PAINT REQ.

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05170

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

 2
53879H - RETAINER, FRONT FENDER LINER
53879-0K010

ZRE171,173..4FC..GCC

 2
Common parts
52491-35010
90159-50311
90159-T0009
90167-50063
90178-10021
90178-T0011
90179-06349
Linked diagrams
5102
7601
