5102 - SUSPENSION CROSSMEMBER & UNDER COVER

ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015

Engine 1ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310- )

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02170	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-02120	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51204-12130	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
51963B - HOOK, TRANSPORT, FRONT RH
51960-02110	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
Common parts
90119-10636
90119-10904
90119-14101
90119-14125
90119-T0366
90119-T0374
91622-B1018
91674-L1270

ILLUST NO. 2 OF 2(1310-1404)

Click highlighted areas on diagram

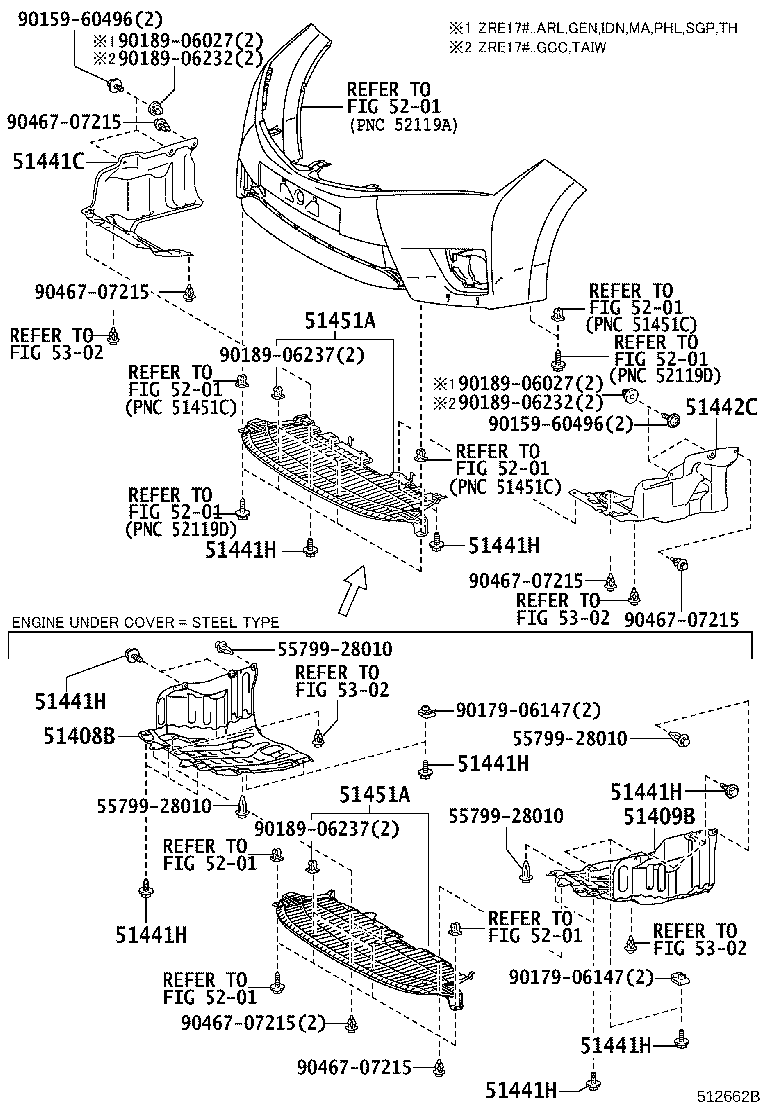

ENGINE UNDER COVER

Part #	Description	Period	Qty
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-02080	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-02050	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
51441C - COVER, ENGINE UNDER, RH
51441-02440	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51442C - COVER, ENGINE UNDER, LH
51442-02530	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451A - COVER, ENGINE UNDER, CENTER
51451-02090	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451-02140	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
51451A - COVER, ENGINE UNDER, CENTER
51451-02090	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451-02140	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
Common parts
55799-28010
90159-60496
90179-06147
90189-06027
90189-06232
90189-06237
90467-07215
Linked diagrams
5201
5302

ILLUST NO. 2 OF 2(1404- )

Click highlighted areas on diagram

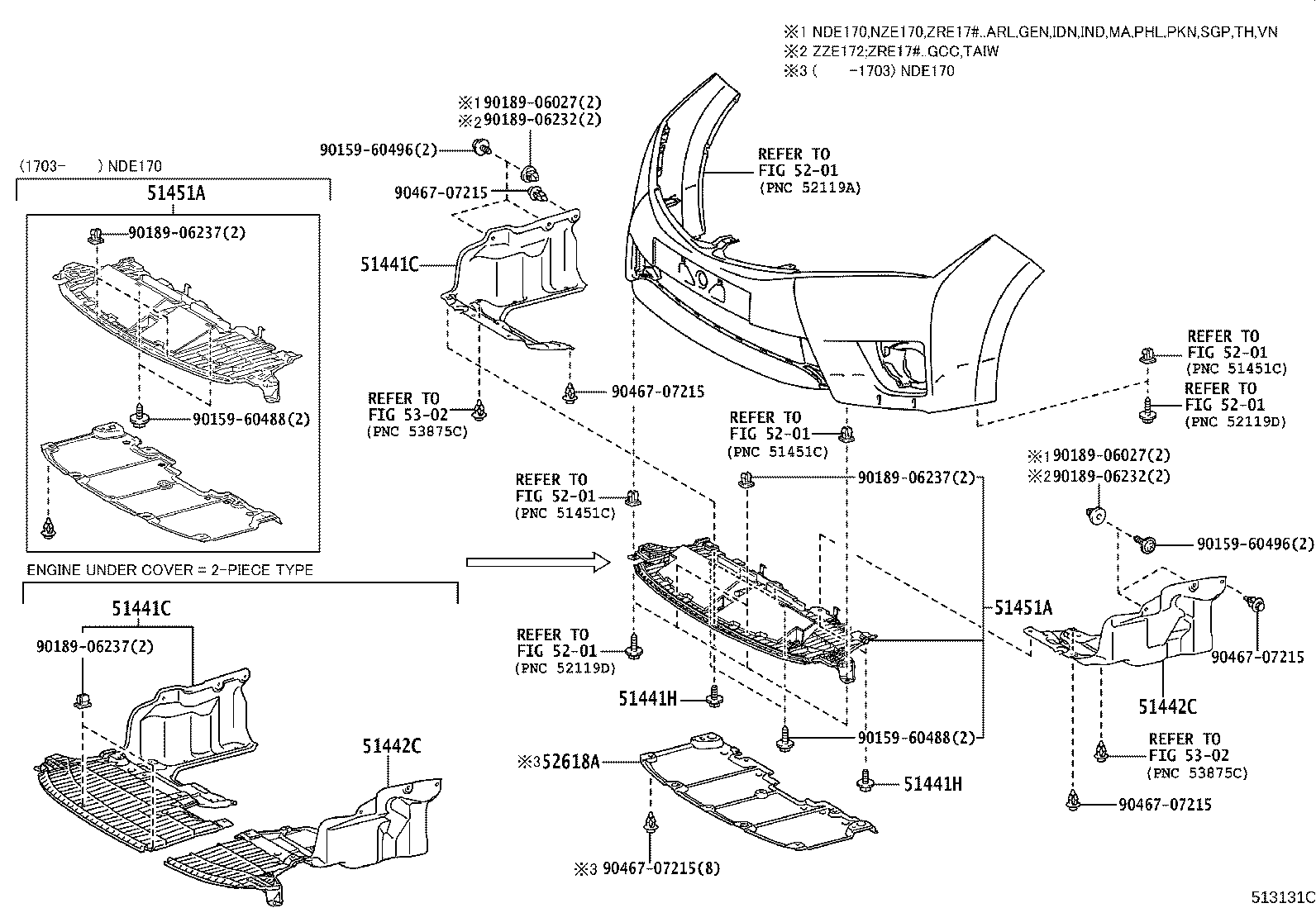

ENGINE UNDER COVER

Part #	Description	Period	Qty
51441C - COVER, ENGINE UNDER, RH
51441-02440	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51441C - COVER, ENGINE UNDER, RH
51441-02440	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ZZE172;ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC	10/2013 - 04/2014	13
51442C - COVER, ENGINE UNDER, LH
51442-02530	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51442C - COVER, ENGINE UNDER, LH
51442-02530	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451A - COVER, ENGINE UNDER, CENTER
51451-02090	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451-02140	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
51451A - COVER, ENGINE UNDER, CENTER
51451-02090	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
51451-02140	ZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC IRAQ SPEC	10/2013 - 04/2014	1
Common parts
90159-60488
90159-60496
90189-06027
90189-06232
90189-06237
90467-07215
Linked diagrams
5201
5302
