ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis

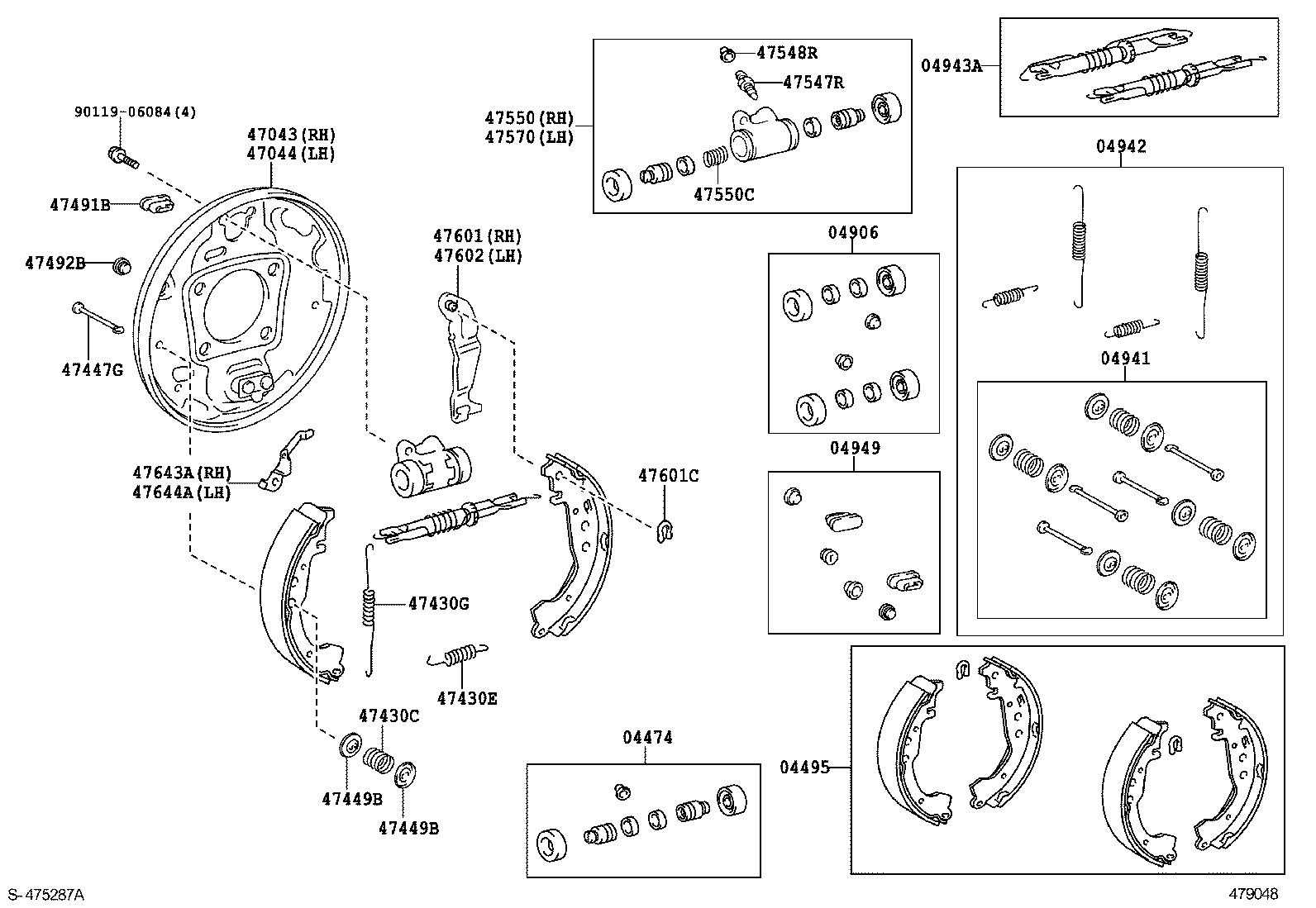

(1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G,XLI..GCC,IDN,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-12050 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 04474-12050 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-52120 |
ZRE171,173..XLI..GCC MARK NBK LN521,LOW FLEET PACKAGE |
1 | ||
| 04495-52120 |
ZRE171..XLI..GCC MARK NBK LN521,LOW GRADE PACKAGE |
1 | ||
| 04495-52121 |
ZRE171..4FC..XLI..GCC MARK NBK LN521,LOW GRADE PACKAGE |
1 | ||
| 04495-52121 |
ZRE171,173..4FC..XLI..GCC MARK NBK LN521,LOW FLEET PACKAGE |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-33030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04906-33030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-28010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04941-28010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-13030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04942-13030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-12040 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04943-12040 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04949-13010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-12490 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47043-12490 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-12490 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47044-12490 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
4 | ||
| 90501-20756 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18076 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90506-18076 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-18087 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90506-18087 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
4 | ||
| 47447-20030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
8 | ||
| 47449-30020 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
8 | ||
| 47449-30020 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47491-20011 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47492-28010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47547-27030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 31478-30010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47550-12120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90501-09079 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47550-12120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-12480 |
ZRE171..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47601-12480 |
ZRE171,173..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ZRE171..XLI..GCC T=1.2,LOW GRADE PACKAGE |
2 | ||
| 90213-06013 |
ZRE171,173..XLI..GCC T=1.2,LOW FLEET PACKAGE |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-12480 |
ZRE171..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47602-12480 |
ZRE171,173..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-52120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47643-52120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-52120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47644-52120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||

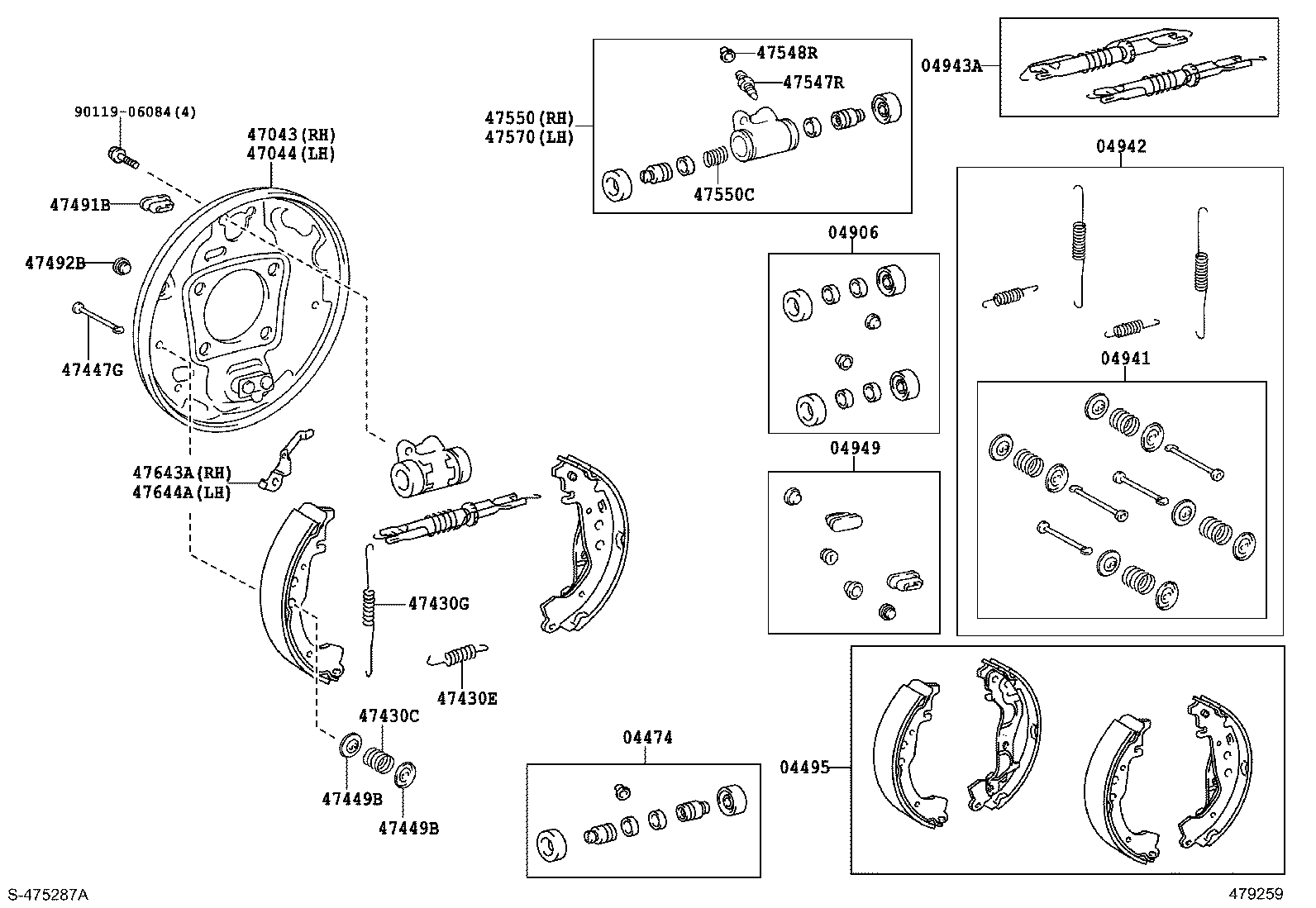

(1404- )16E,16G,18E,XLI..GCC,PHL,VN ; (1404-)ZRE172,ZZE172..18G,XLI..GEN,IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-12050 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 04474-12050 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-52120 |
ZRE171,173..XLI..GCC MARK NBK LN521,LOW FLEET PACKAGE |
1 | ||
| 04495-52120 |
ZRE171..XLI..GCC MARK NBK LN521,LOW GRADE PACKAGE |
1 | ||
| 04495-52121 |
ZRE171..4FC..XLI..GCC MARK NBK LN521,LOW GRADE PACKAGE |
1 | ||
| 04495-52121 |
ZRE171,173..4FC..XLI..GCC MARK NBK LN521,LOW FLEET PACKAGE |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-33030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04906-33030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-28010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04941-28010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-13030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04942-13030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-12040 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 04943-12040 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 04949-13010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-12490 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47043-12490 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-12490 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47044-12490 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
4 | ||
| 90501-20756 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18076 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90506-18076 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-18087 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90506-18087 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
4 | ||
| 47447-20030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
8 | ||
| 47449-30020 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
8 | ||
| 47449-30020 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47491-20011 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47492-28010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27030 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47547-27030 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 31478-30010 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47550-12120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
2 | ||
| 90501-09079 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47550-12120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-52120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 47643-52120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-52120 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 47644-52120 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
