ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZZE172 ; (1310- )GCC,PKN,TAIW ; (1405-1703)IND

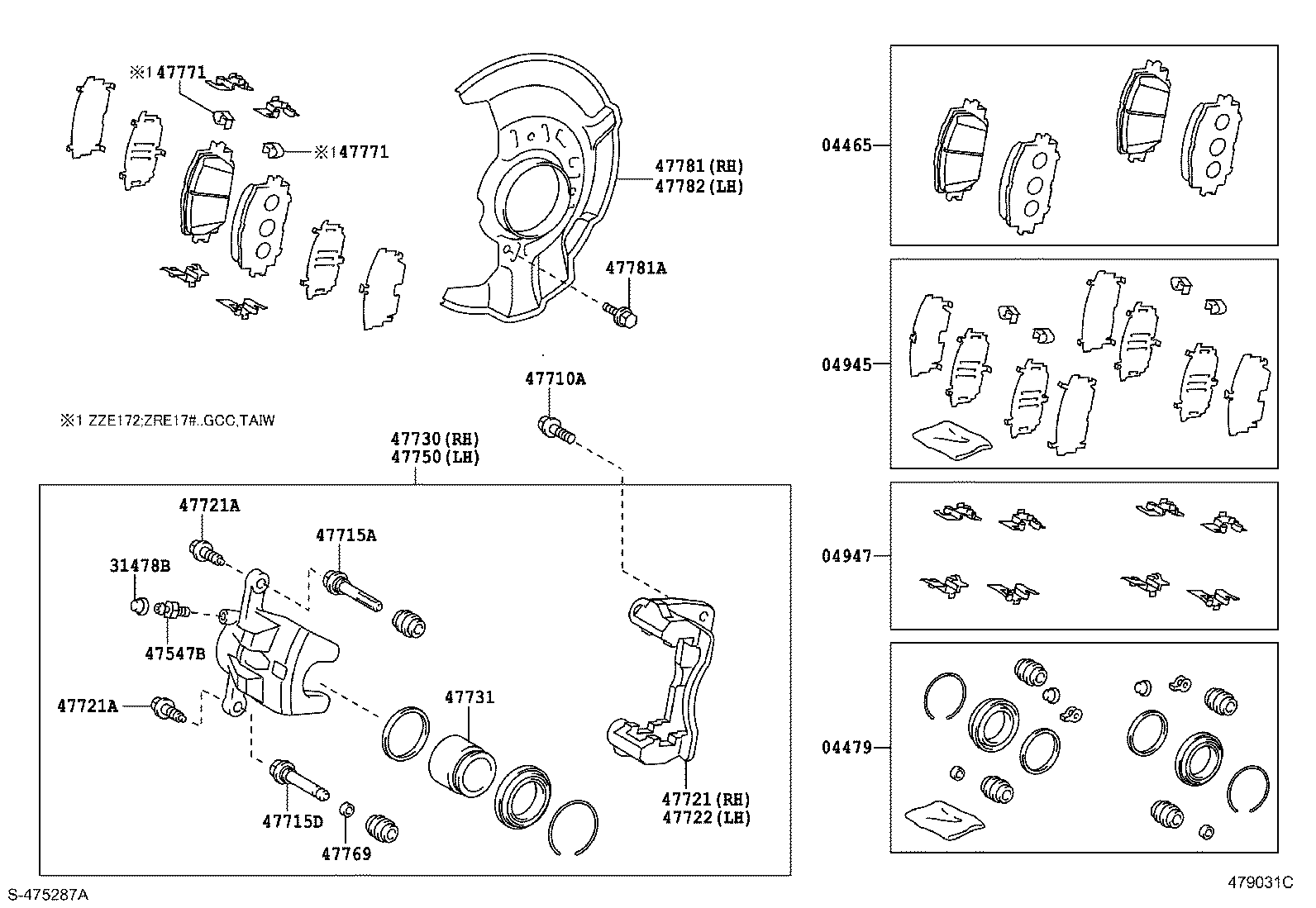

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47771 47771 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02220

ZRE171,173..4FC..GCC

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02310

ZRE171,173..4FC..GCC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02190

ZRE171,173..4FC..GCC

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

ZRE171,173..4FC..GCC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ZRE171,173..4FC..GCC

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ZRE171,173..4FC..GCC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ZRE171..16J..CNG;ZRE171,173..4FC..GCC

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-06250

ZRE171,173..4FC..GCC

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-06250

ZRE171,173..4FC..GCC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-02460

ZRE171,173..4FC..GCC

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-10247

ZRE171,173..4FC..GCC

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-10247

ZRE171,173..4FC..GCC

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-02460

ZRE171,173..4FC..GCC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02460

ZRE171,173..4FC..GCC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12A10

ZRE171,173..4FC..GCC

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02460

ZRE171,173..4FC..GCC

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-06030

ZRE171,173..4FC..GCC

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ZRE171,173..4FC..GCC

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ZRE171,173..4FC..GCC

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02170

ZRE171,173..4FC..GCC

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ZRE171,173..4FC..GCC

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02170

ZRE171,173..4FC..GCC

 1
