ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis

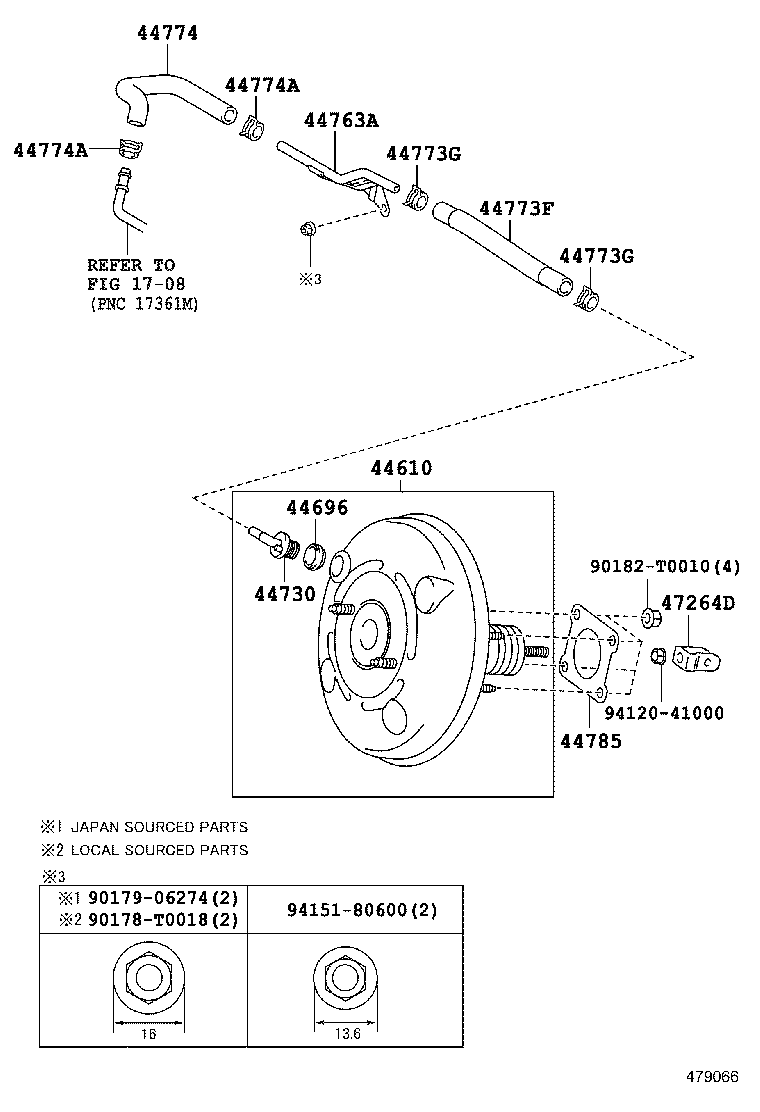

(1310-1610)ZRE171..CVT..PHL ; (1310- )ZRE172,173..LHD ; (1310- )ZRE171..LHD..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-02B50 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 44610-02760 |
ZRE171,173..4FC..GCC |
1 | ||
| 44610-02B50 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZRE171,173..4FC..GCC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-02150 |
ZRE171,173..4FC..GCC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-02170 |
ZRE171,173..4FC..GCC |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-02190 |
ZRE171,173..4FC..GCC |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-02120 |
ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90182-T0010 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||

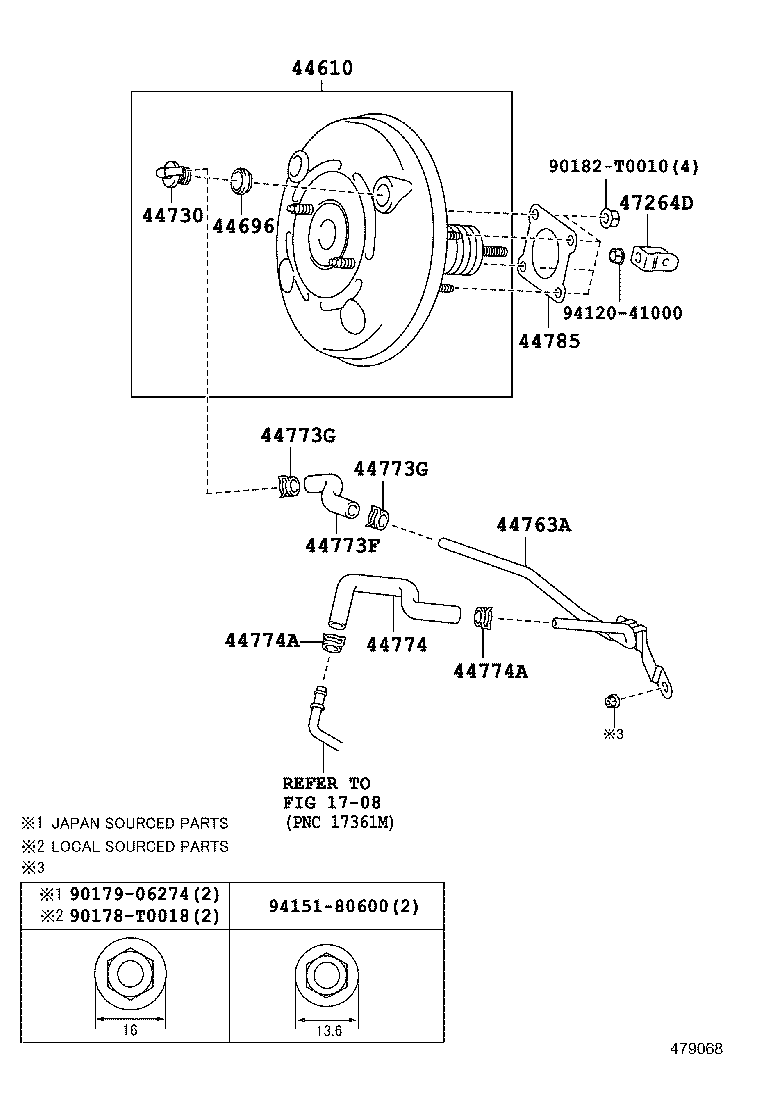

(1312- )ZRE171..RHD..CVT..HTWC ; (1312- )ZRE172,173..ARL,IDN,MA,PKN,TH ; (131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-02B50 |
ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE |
1 | ||
| 44610-02760 |
ZRE171,173..4FC..GCC |
1 | ||
| 44610-02B50 |
ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZRE171,173..4FC..GCC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-02150 |
ZRE171,173..4FC..GCC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-02170 |
ZRE171,173..4FC..GCC |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-02190 |
ZRE171,173..4FC..GCC |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE171,173..4FC..GCC |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
ZRE171..16J..CNG;ZRE171,173..4FC..GCC |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-02120 |
ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90182-T0010 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
