Toyota Corolla/altis ZRE171 PARKING BRAKE & CABLE

ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015

Engine 1ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1310-1609)GCC,TAIW ; (1310-1610)ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN ; (1610-1703)

Click highlighted areas on diagram

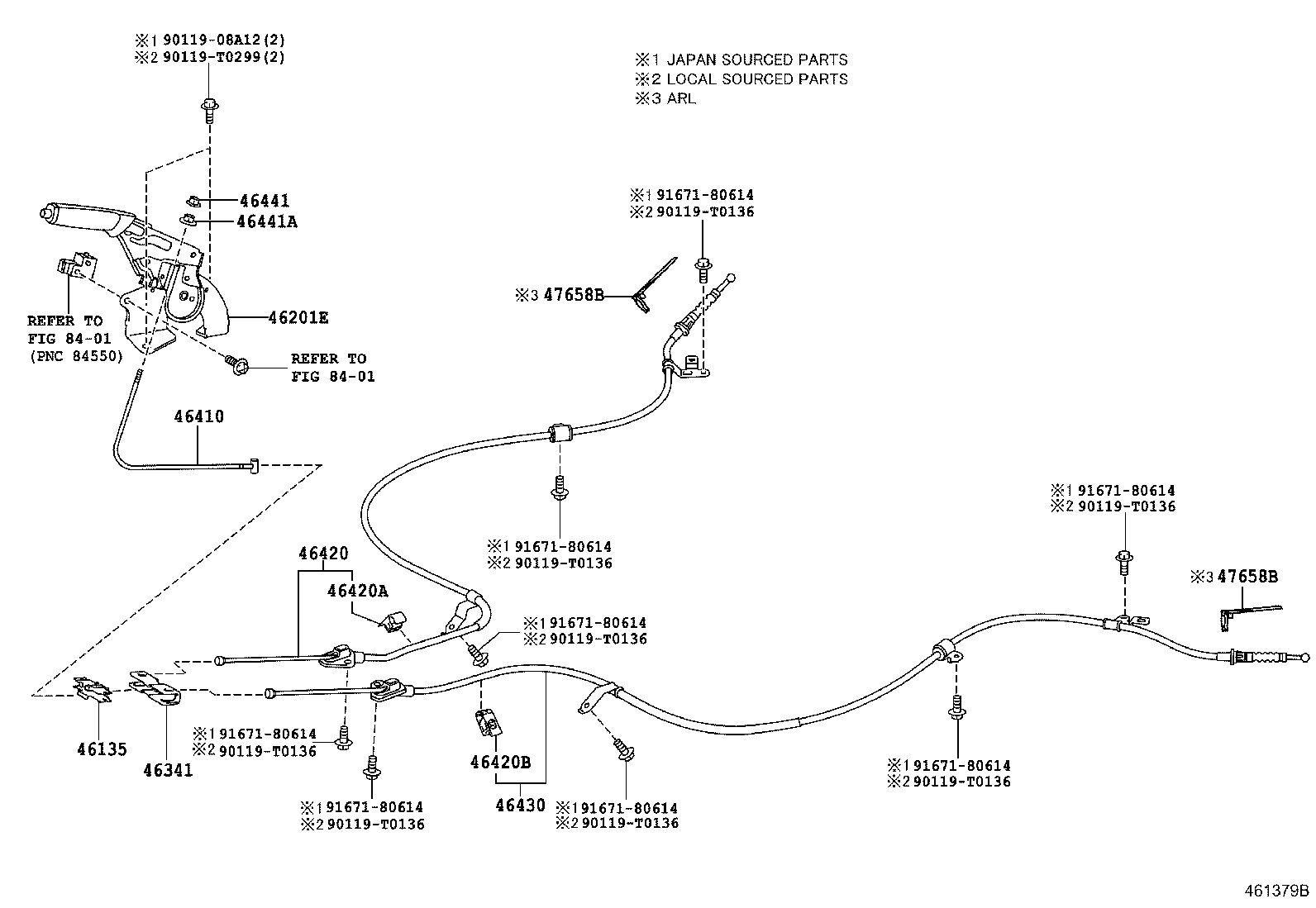

REAR DISC BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02400C0	ZRE171,173..4FC..XLI..GCC BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46201-12430C0	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46201-12430C0	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12300	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46410-02130	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46410-12300	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02320	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46420-12830	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46420-12830	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-02050	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46402-12020	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46402-12020	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-02050	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46402-12020	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46402-12020	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12720	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46430-12720	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46430-02330	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91671-80614
Linked diagrams
8401

(1310-1409)ZZE172..XLI ; (1310-1609)XLI..GCC ; (1310-1610)16E,16G,18G..IDN,PHL

Click highlighted areas on diagram

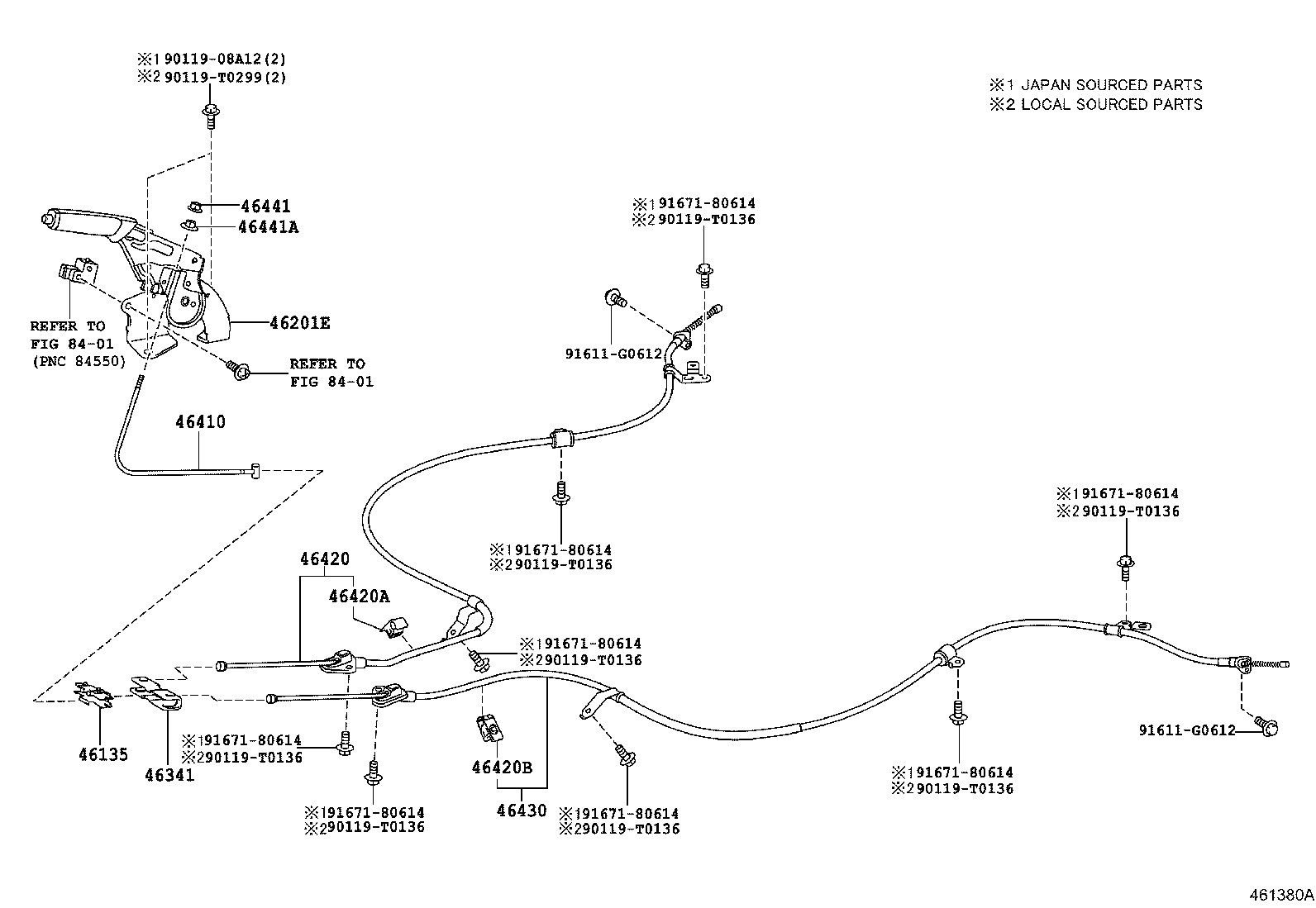

REAR DRUM BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02400C0	ZRE171,173..4FC..XLI..GCC BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46201-12430C0	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE,BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46201-12430C0	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE,BLACK,TRIM0#,1#	10/2013 - 12/2015	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12300	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46410-02130	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46410-12300	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02320	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46420-12830	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46420-12830	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-02050	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46402-12020	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46402-12020	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-02050	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46402-12020	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46402-12020	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12720	ZRE171,173..4FC..XLI..GCC LOW FLEET PACKAGE	10/2013 - 12/2015	1
46430-12720	ZRE171..4FC..XLI..GCC LOW GRADE PACKAGE	10/2013 - 12/2015	1
46430-02330	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE171..16J..CNG;ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	ZRE171,173..4FC..XLI..GCC	10/2013 - 12/2015	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91611-G0612
91671-80614
Linked diagrams
8401
