ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis
ILLUST NO. 3 OF 3(1310- )
| Part # | Description | Qty | Price |
|---|

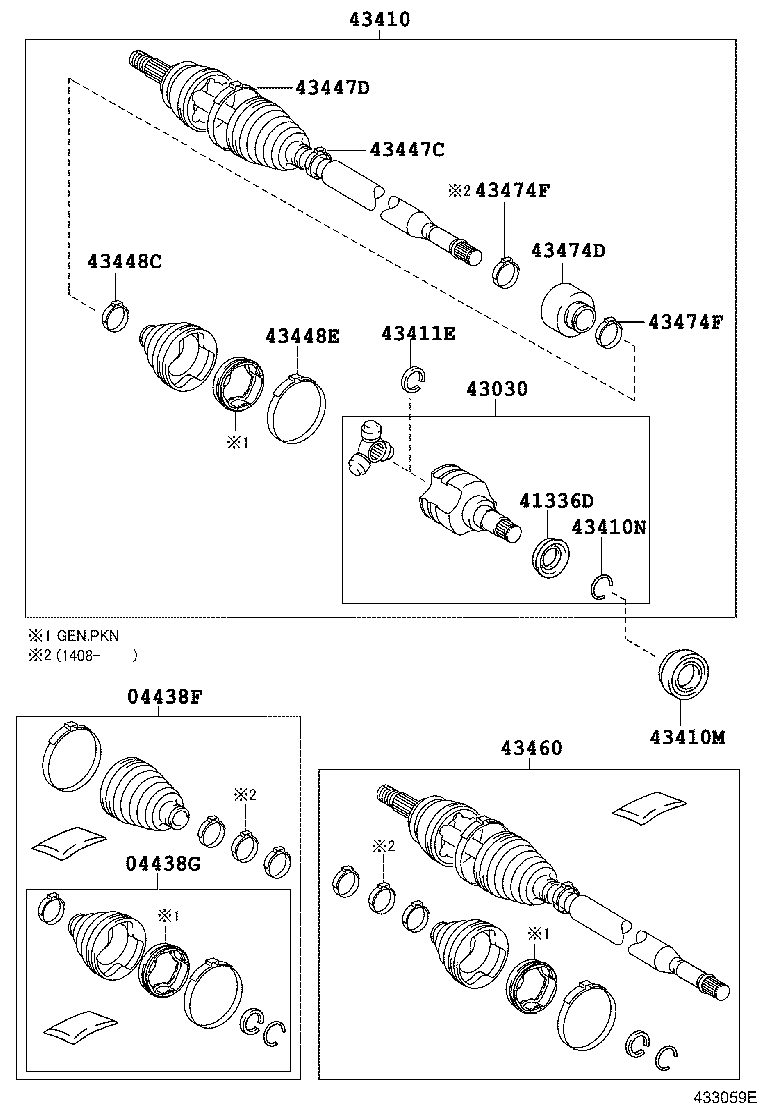

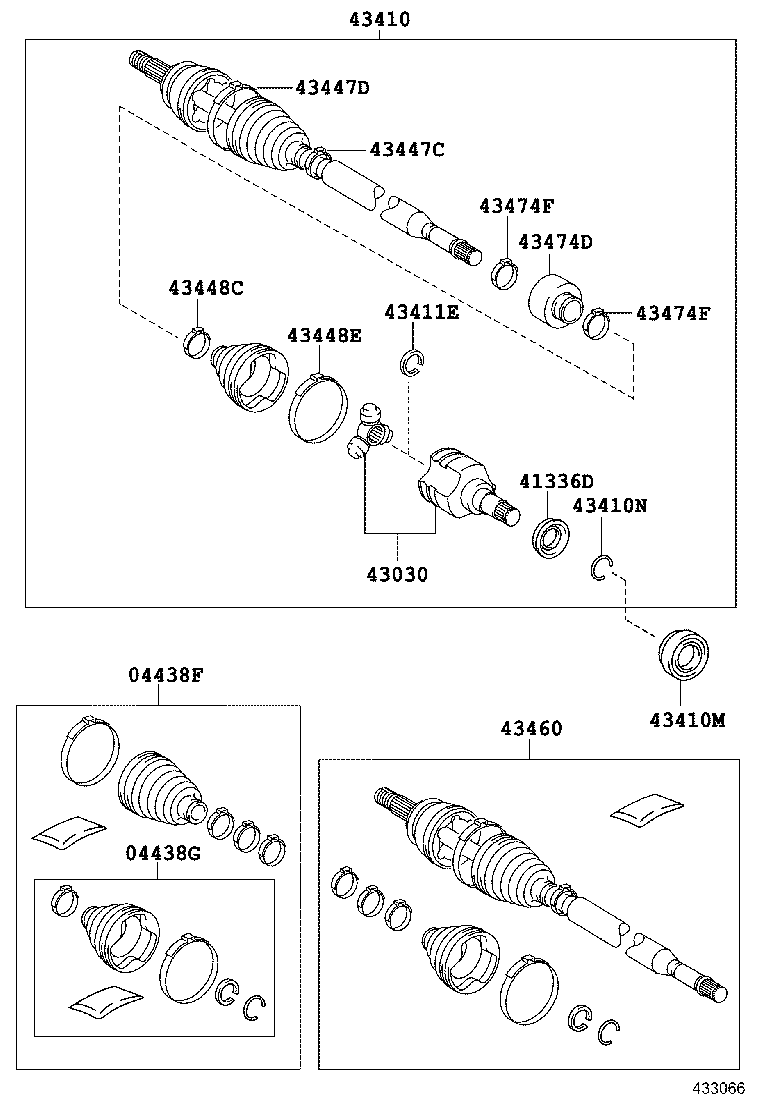

ILLUST NO. 1 OF 3(1310- )ZRE171..4FC..GCC ; (1310- )NZE170,ZRE171,172..ARL,GEN,IDN,MA,PHL,PKN,
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-12681 |
ZRE171..4FC..GCC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04427-12682 |
ZRE171..4FC..GCC |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-02470 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04437-12400 |
ZRE171..4FC..GCC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
ZRE171..4FC..GCC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-02210 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43403-12040 |
ZRE171..4FC..GCC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-02A70 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43410-02A70 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43410-02A70 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43410-12A80 |
NZE170,ZRE171..(4FC,5F)..(GLI,XLI)..(GCC,PKN) |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34045 |
ZRE171..4FC..GCC |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
ZRE171..4FC..GCC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 90520-22005 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12190 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12190 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 90949-01078 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09T00 |
ZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH) |
1 | ||
| 43460-80126 |
ZRE171..4FC..GCC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43460-80157 |
ZRE171..4FC..GCC |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-12120 |
NZE170,ZRE171,172..GCC,PKN |
1 | ||
| 43474-02440 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43474-02440 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 43474-02440 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 43474-12210 |
ZRE171..4FC..GCC |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
2 | ||
| 42345-14010 |
ZRE171..4FC..GCC MARK 35.4 OR 35.75M |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GCC YEMEN SPEC |
2 | ||
| 90949-01947 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M |
1 | ||
| 42345-14010 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
2 | ||
| 42345-14010 |
ZRE171..4FC..GCC MARK 35.4 OR 35.75M |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GCC YEMEN SPEC |
2 | ||
| 90949-01947 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M |
1 | ||
| 42345-14010 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M |
1 | ||

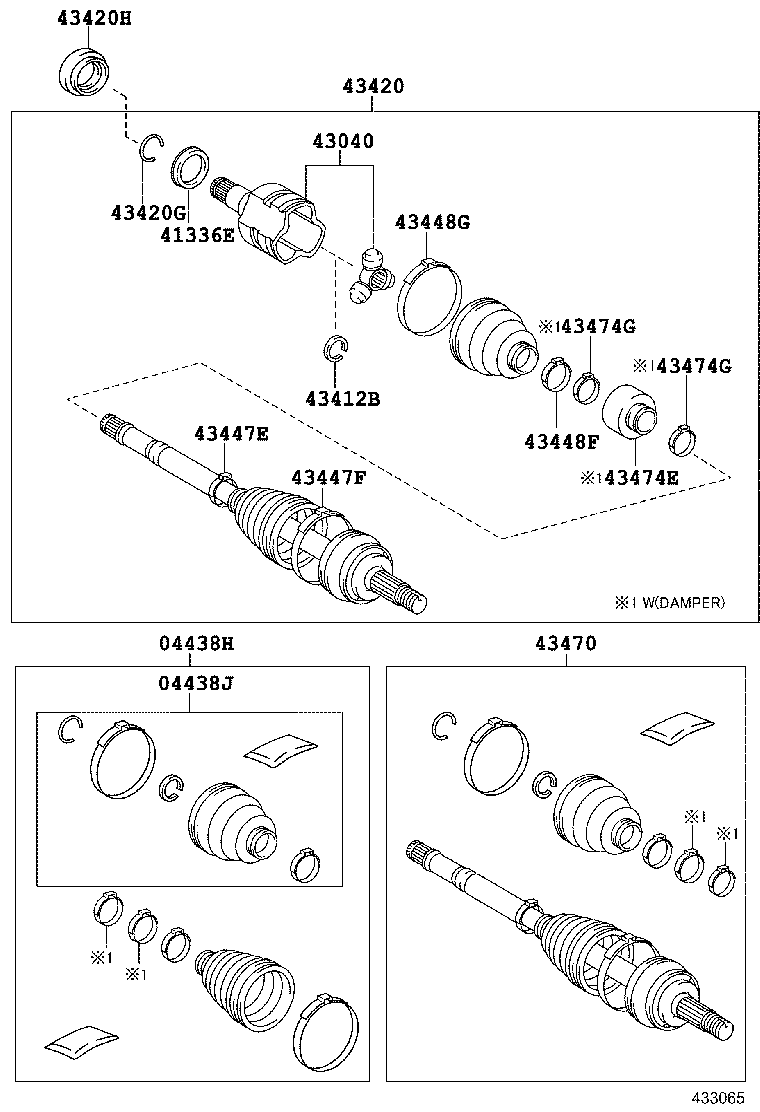

ILLUST NO. 2 OF 3(1310- )NZE170,ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TH,VN
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-12681 |
ZRE171..4FC..GCC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-02470 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04437-12400 |
ZRE171..4FC..GCC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D060 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336-12010 |
ZRE171..4FC..GCC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-02210 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43403-12040 |
ZRE171..4FC..GCC |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-06300 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 90520-22005 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02C30 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420-12A10 |
ZRE171..4FC..GCC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
ZRE171..4FC..GCC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34044 |
ZRE171..4FC..GCC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12190 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12190 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-06590 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12160 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80293 |
ZRE171..4FC..GCC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||

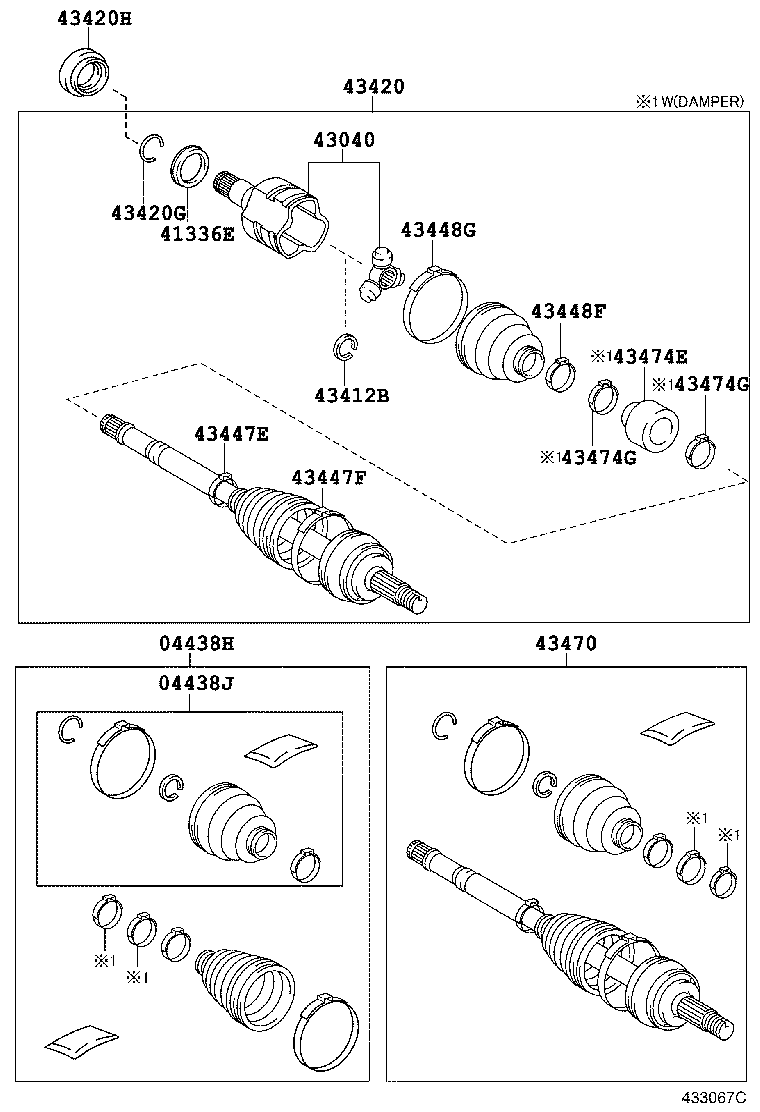

ILLUST NO. 2 OF 3(1310- )ZRE173..ATM,CVT..GCC ; (1310- )ZRE172,ZZE172..GEN,TAIW ; (1405- )Z
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-12681 |
ZRE171..4FC..GCC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-02470 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04437-12400 |
ZRE171..4FC..GCC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D060 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336-12010 |
ZRE171..4FC..GCC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-02210 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43403-12040 |
ZRE171..4FC..GCC |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-06300 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 90520-22005 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02C30 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420-12A10 |
ZRE171..4FC..GCC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
ZRE171..4FC..GCC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34044 |
ZRE171..4FC..GCC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12190 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12190 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-06590 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12160 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80293 |
ZRE171..4FC..GCC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
ILLUST NO. 1 OF 3(1310- )ZRE171..GCC
RH(IRAN & IRAQ & YEMEN SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-12681 |
ZRE171..4FC..GCC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 04427-02620 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04427-12682 |
ZRE171..4FC..GCC |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-02470 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04437-12400 |
ZRE171..4FC..GCC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
ZRE171..4FC..GCC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-02210 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43403-12040 |
ZRE171..4FC..GCC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-02A70 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43410-02A70 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43410-02A70 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43410-12A80 |
NZE170,ZRE171..(4FC,5F)..(GLI,XLI)..(GCC,PKN) |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34045 |
ZRE171..4FC..GCC |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
ZRE171..4FC..GCC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 90520-22005 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12190 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12190 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 90949-01078 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09T00 |
ZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH) |
1 | ||
| 43460-80126 |
ZRE171..4FC..GCC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43460-09W80 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43460-80157 |
ZRE171..4FC..GCC |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-12120 |
NZE170,ZRE171,172..GCC,PKN |
1 | ||
| 43474-02440 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43474-02440 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 43474-02440 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 43474-12210 |
ZRE171..4FC..GCC |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
2 | ||
| 42345-14010 |
ZRE171..4FC..GCC MARK 35.4 OR 35.75M |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GCC YEMEN SPEC |
2 | ||
| 90949-01947 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M |
1 | ||
| 42345-14010 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
2 | ||
| 42345-14010 |
ZRE171..4FC..GCC MARK 35.4 OR 35.75M |
2 | ||
| 42345-02B60 |
ZRE171..4FC..GCC YEMEN SPEC |
2 | ||
| 90949-01947 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M |
1 | ||
| 42345-14010 |
NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M |
1 | ||
ILLUST NO. 2 OF 3(1310- )ZRE171..GCC
LH(IRAN & IRAQ & YEMEN SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-12681 |
ZRE171..4FC..GCC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 04428-02760 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-02470 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 04437-12400 |
ZRE171..4FC..GCC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 04437-02470 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D060 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 41336-12010 |
ZRE171..4FC..GCC |
1 | ||
| 41336-0D060 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-02210 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43040-02210 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43403-12040 |
ZRE171..4FC..GCC |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-06300 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 90520-22005 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43425-06300 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02C30 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420-12A10 |
ZRE171..4FC..GCC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43420-02C30 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
ZRE171..4FC..GCC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43425-0D160 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34044 |
ZRE171..4FC..GCC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12190 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12190 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02890 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12190 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-12180 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 42345-02A00 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-12180 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06710 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-06590 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAN SPEC |
1 | ||
| 42345-06590 |
ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC IRAQ SPEC |
1 | ||
| 42345-12160 |
ZRE171..16J..CNG;ZRE171..4FC..GCC |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80293 |
ZRE171..4FC..GCC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC YEMEN SPEC |
1 | ||
| 43470-8Z204 |
ZRE171..4FC..GCC IRAQ SPEC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
