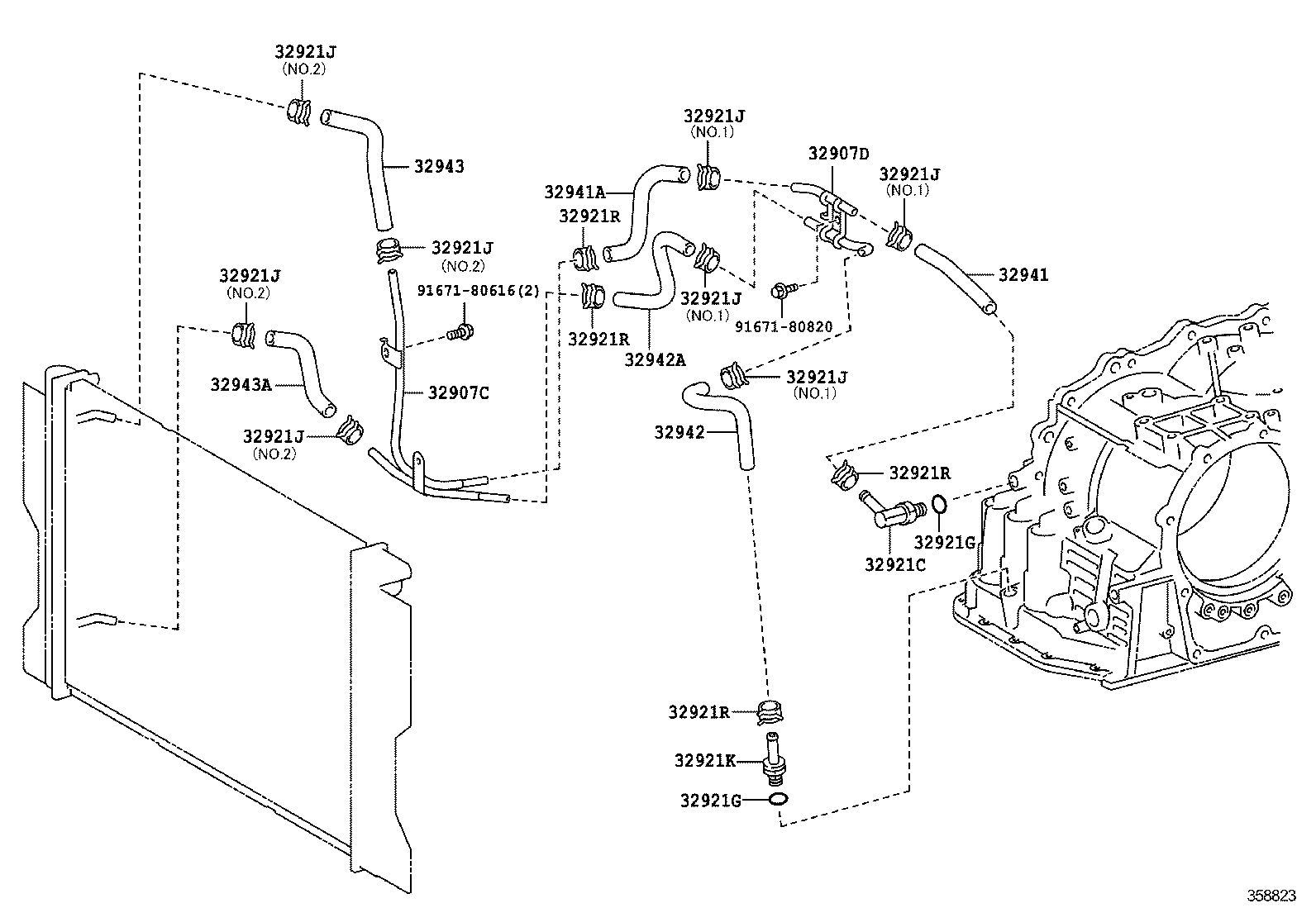

Toyota Corolla/altis ZRE171 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-02300	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32907-02250	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13005	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018	ZRE171..4FC..GCC	10/2013 - 12/2015	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018	ZRE171..4FC..GCC	10/2013 - 12/2015	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	ZRE171..4FC..GCC NO.2:REFER ILLUST.	10/2013 - 12/2015	4
96137-41501	ZRE171..4FC..GCC NO.1:REFER ILLUST.	10/2013 - 12/2015	4
32921K - UNION, NO.2(FOR OIL COOLER TUBE)
90404-13007	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96137-41501	ZRE171..4FC..GCC	10/2013 - 12/2015	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96137-41501	ZRE171..4FC..GCC	10/2013 - 12/2015	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96137-41501	ZRE171..4FC..GCC	10/2013 - 12/2015	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96137-41501	ZRE171..4FC..GCC	10/2013 - 12/2015	4
32941 - HOSE, OIL COOLER INLET, NO.1
32943-02540	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-T0020	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32943-02530	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32943-02550	ZRE171..4FC..GCC	10/2013 - 12/2015	1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-02420	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-02520	ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
Common parts
91671-80616
91671-80820

ZRE171L-GEPDKV (2013)

(1310- )ZRE171..4FC..GCC
