ZRE171L-GEPDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Dec 2015
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

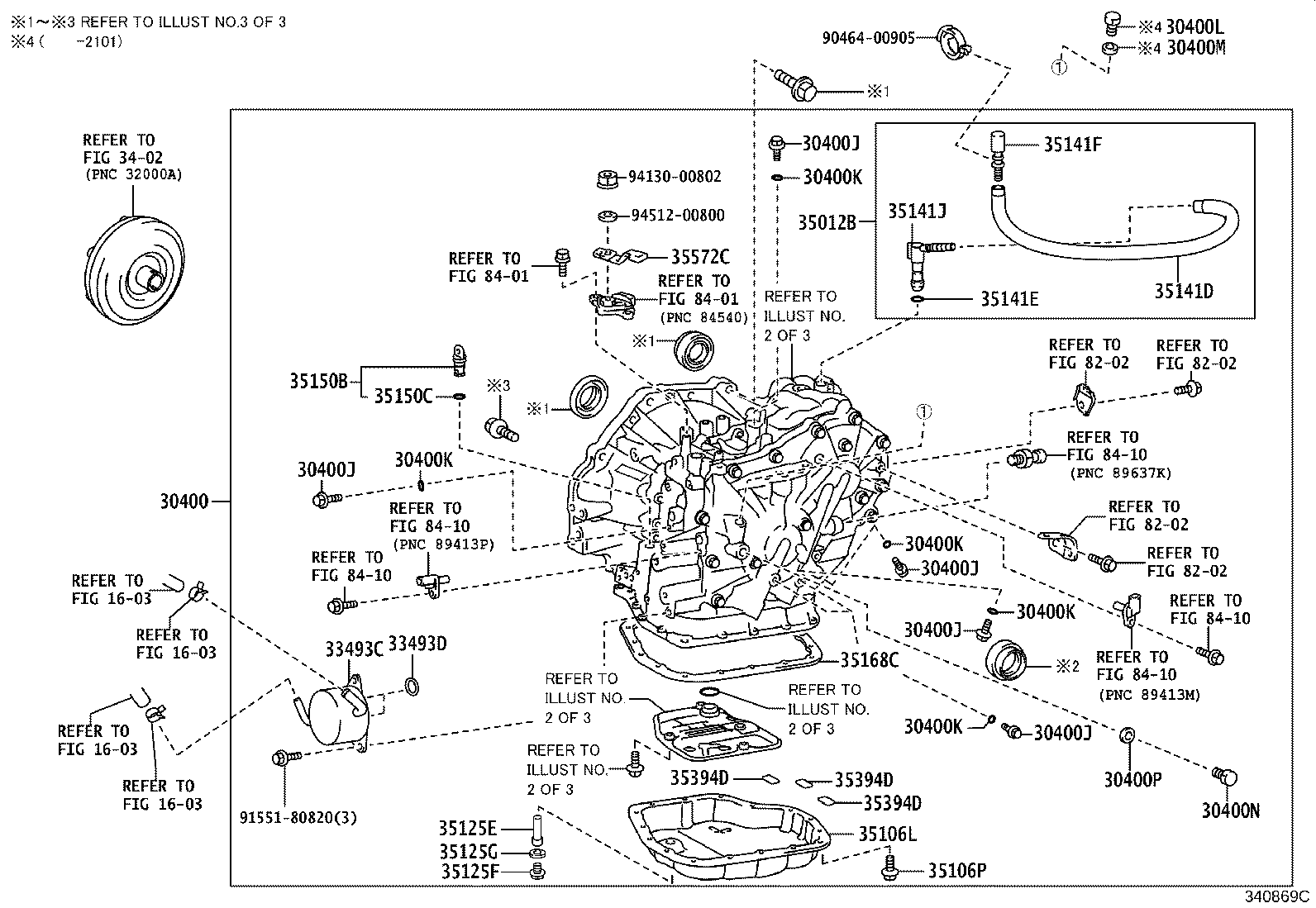

ILLUST NO. 1 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (

Click highlighted areas on diagram

K313

diagram 1603 1603 1603 1603 30400 30400J 30400J 30400J 30400J 30400J 30400K 30400K 30400K 30400K 30400K 30400L 30400M 30400N 30400P 33493C 33493D 3402 35012B 35106L 35106P 35125E 35125F 35125G 35141D 35141E 35141F 35141J 35150B 35150C 35168C 35394D 35394D 35394D 35572C 8202 8202 8202 8202 8401 8401 8410 8410 8410 8410 8410 9046400905 9155180820 9413000802 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-12190

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

K313,AISIN AW:REF.ILLUST

 1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
35012-12100

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-12210

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35125E - TUBE, OVERFLOW(CVT)
35125-12480

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03216

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35141J - PLUG, BREATHER, NO.2(CVT)
90930-03191

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-12170

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
Common parts
90464-00905
91551-80820
94130-00802
94512-00800
Linked diagrams
1603
3402
8202
8401
8410

ILLUST NO. 2 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (

Click highlighted areas on diagram

K313

diagram 30400J 30400J 30400K 30400K 3402 3402 3402 3402 35068E 35075D 35145D 35165B 35174B 35195C 35195D 35330D 35330E 35410J 35481C 35482C 35506L 35603E 35610A 35610F 35610F 35610G 35610G 35610G 35612D 35623L 35623M 35623M 35623N 35633H 35633H 35633H 35634M 35634M 35634M 35635G 35668C 35671D 35672D 35676L 35676M 35681B 35681B 35681B 35691B 35691B 35691B 35701L 35701M 35720M 35720N 35720N 35726A 35882E 35882E 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 82125M 82125Q 8410 8410 9025010017 9025010017 9030106004 9030106024 9155180612 9155180616 9155180625 9161140614 9161140614 91611B0616 9167180614 9167180614
Part # Description Qty Price
35330D - STRAINER ASSY, OIL
35330-12050

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
Common parts
90250-10017
90301-06004
90301-06024
91551-80612
91551-80616
91551-80625
91611-40614
91611-B0616
91671-80614
Linked diagrams
3402
4301
8410

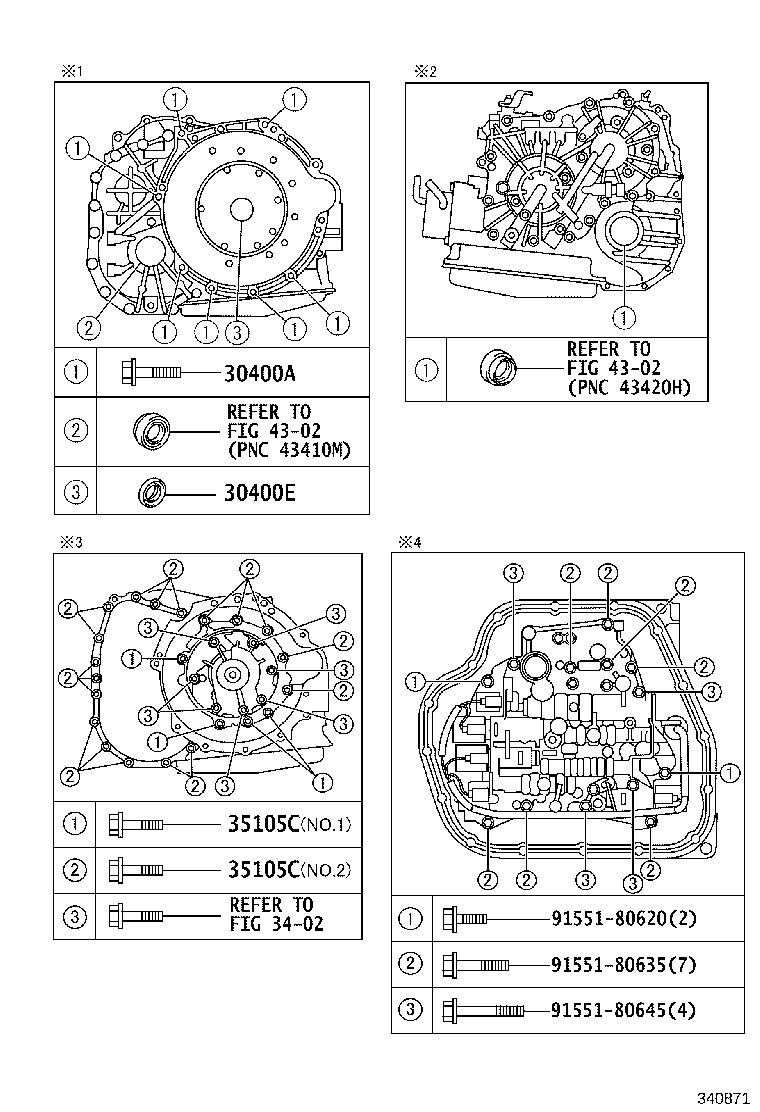

ILLUST NO. 3 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (

Click highlighted areas on diagram

K313

diagram 30400A 30400E 3402 35105C 35105C 4302 4302 9155180620 9155180635 9155180645
Part # Description Qty Price
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45027

ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)

AISIN AW:REF.ILLUST

 1
Common parts
91551-80620
91551-80635
91551-80645
Linked diagrams
3402
4302
