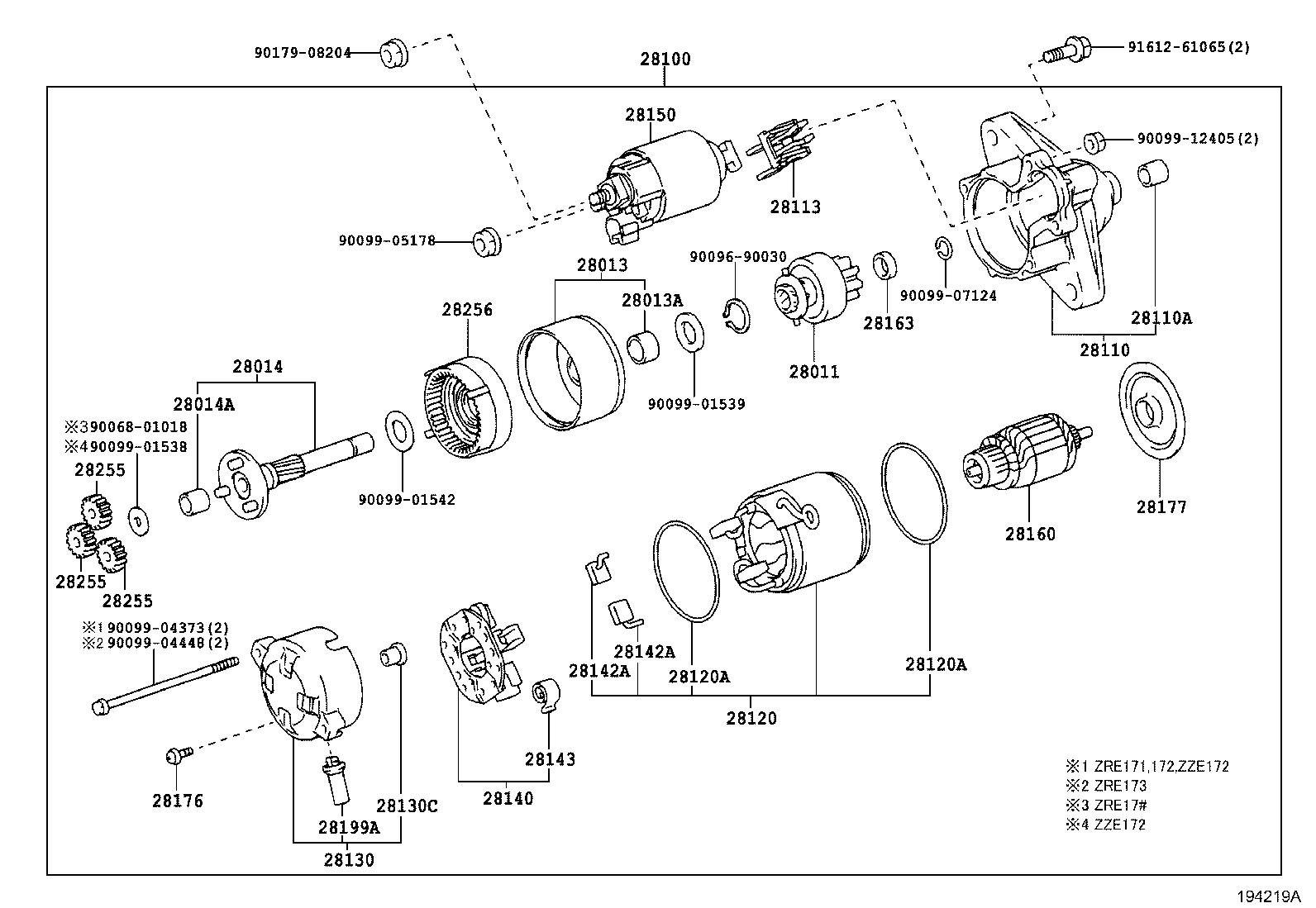

Toyota Corolla/altis ZRE171 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013-70030	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28100 - STARTER ASSY
28100-0T110	1ZRFE..ZRE171..4FC..GCC 12V 0.8KW	10/2013 - 12/2015	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28110A - BEARING(FOR STARTER HOUSING)
90068-10034	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28113 - LEVER, STARTER PINION DRIVE
28113-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28120 - YOKE ASSY, STARTER
28120-47120	1ZRFE..ZRE171..4FC..GCC	10/2013 - 12/2015	1
28120A - RING, O(FOR STARTER YOKE)
90099-14092	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
28120A - RING, O(FOR STARTER YOKE)
90099-14092	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28130C - BEARING, STARTER FLANGE
90099-10183	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28142A - STARTER KIT
28142-70020	1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
28142A - STARTER KIT
28142-70020	1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
28143 - SPRING, STARTER BRUSH
28143-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22100	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28160 - ARMATURE ASSY, STARTER
28160-70021	1ZRFE..ZRE171..4FC..GCC	10/2013 - 12/2015	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28176 - SCREW, STARTER
90099-00270	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	2
28177 - PLATE(FOR STARTER ARMATURE)
28177-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28199A - PROTECTOR, DUST STARTER
28199-87505	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
28255 - GEAR, PLANET
28255-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	3
28255 - GEAR, PLANET
28255-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	3
28255 - GEAR, PLANET
28255-70020	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	3
28256 - GEAR, STARTER INTERNAL
28256-0T080	1ZRFE,3ZRFE..ZRE171,173..4FC..GCC	10/2013 - 12/2015	1
Common parts
90068-01018
90096-90030
90099-01538
90099-01539
90099-01542
90099-04373
90099-04448
90099-05178
90099-07124
90099-12405
90179-08204
91612-61065

ZRE171L-GEPDKV (2013)

(1310- )1ZZFE ; (1310- )1ZRFE,2ZRFE,3ZRFE..GCC,TAIW
