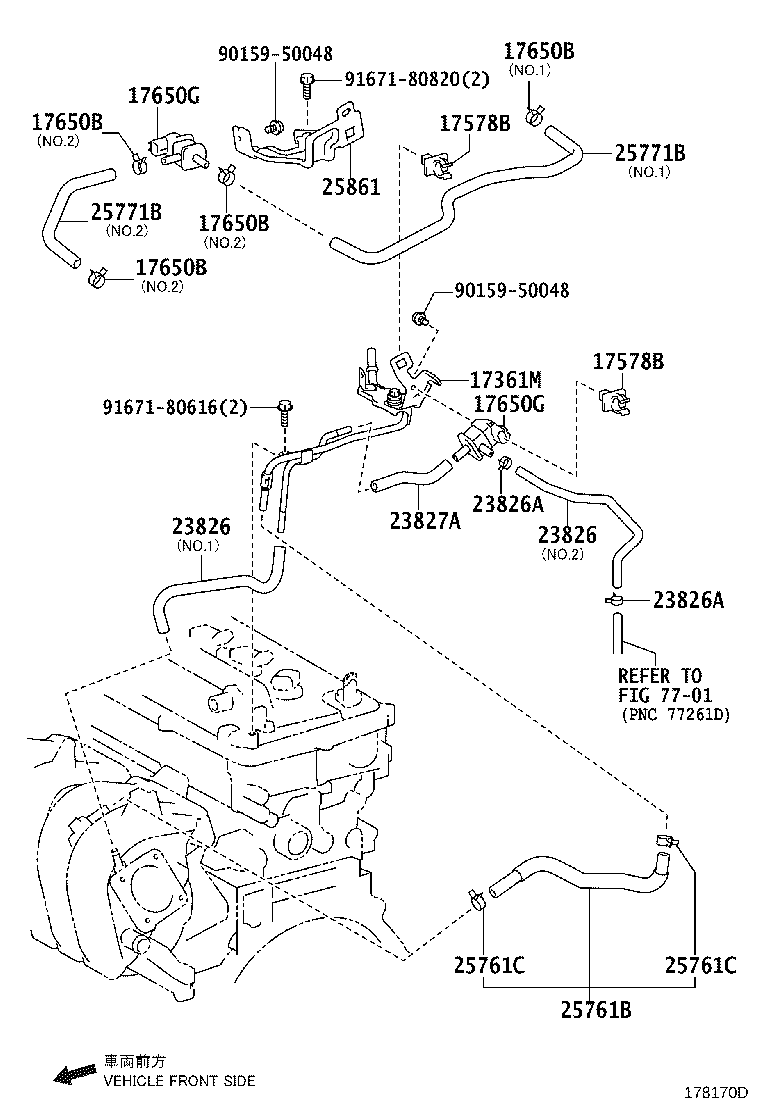

ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis
(1311- )1ZRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37011 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T120 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J),NO.1 |
1 | ||
| 23826-0T100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T120 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J),NO.1 |
1 | ||
| 23826-0T100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 23827-37020 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37011 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 25761-0T080 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
1 | ||
| 25761-37011 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(1310-1601)1ZRFE..6F..GCC ; (1310- )1ZRFE..4FC..GCC,PKN ; (1310- )1ZRFE..GEN,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37011 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T120 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J),NO.1 |
1 | ||
| 23826-0T100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T120 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J),NO.1 |
1 | ||
| 23826-0T100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 23826-0T120 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L),NO.1 |
1 | ||
| 23826-37021 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J),NO.1 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
1 | ||
| 23827-37020 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37011 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 25761-0T080 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
1 | ||
| 25761-37011 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
