ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis

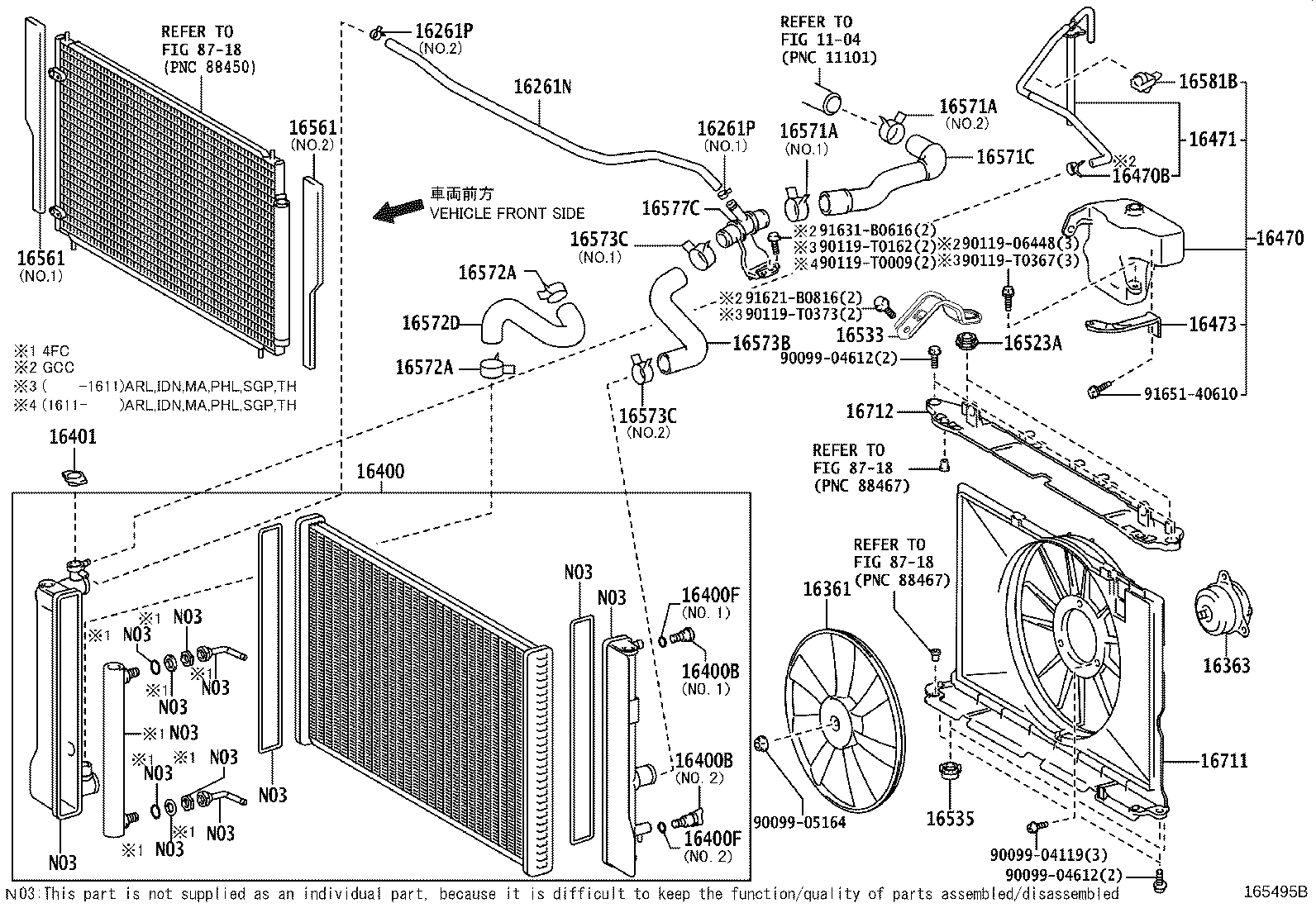

ILLUST NO. 1 OF 2(1310- )1ZRF,1ZRFE,2ZR#..ARL,GCC,IDN,MA,PHL,SGP,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0T160 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 90467-15022 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 90467-15022 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-0D270 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D160 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0D481 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16417-0C180 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16417-0C180 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16418-20290 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16418-20290 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-20353 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0D060 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11003 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D110 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-64260 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D070 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0T080 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D150 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T110 |
1ZZFE..ZZE172;1ZRFE..ZRE171..GCC NO.2 |
1 | ||
| 16561-0T100 |
1ZZFE..ZZE172;1ZRFE..ZRE171..GCC NO.1 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T110 |
1ZZFE..ZZE172;1ZRFE..ZRE171..GCC NO.2 |
1 | ||
| 16561-0T100 |
1ZZFE..ZZE172;1ZRFE..ZRE171..GCC NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 96136-43901 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 96136-43901 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T160 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T120 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0D080 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T080 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22130 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D321 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0D230 |
1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16712-0D200 |
1ZRFE,3ZRFE..ZRE171,173..GCC |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 90119-T0009 | ||||
| 90119-T0162 | ||||
| 90119-T0367 | ||||
| 90119-T0373 | ||||
| 91621-B0816 | ||||
| 91631-B0616 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(1310- )1ZRFE,2ZRFE..4FC,6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T111 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
1 | ||
| 16261-37022 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
1 | ||
| 16261-0T111 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 16261-37022 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-0T020 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (L) |
1 | ||
| 16262-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 16262-37010 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (L) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (L) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T071 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
1 | ||
| 16264-37022 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 16264-37022 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
1 | ||
| 16264-0T071 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC |
2 | ||
| 96137-41501 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC |
2 | ||
| 96137-41501 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T040 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
1 | ||
| 16267-37010 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
1 | ||
| 16267-37010 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L) |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37031 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37021 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (J),*264 |
1 | ||
| 16323-0T060 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GCC (L),*264 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 16325-28010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC TYPE A:REFER ILLUST. |
1 | ||
| 16325-0H020 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC TYPE B:REFER ILLUST. |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03144 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC *WAX 82-95,*264,KUZEH |
1 | ||
| 90916-03144 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC *WAX 82-95,*119,KUZEH |
1 | ||
| 90916-03145 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC *WAX 82-95,*264,FUJISEIKO |
1 | ||
| 90916-03145 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC *WAX 82-95,*119,FUJISEIKO |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37030 |
1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
3ZRFE..ZRE173..4FC;1ZRFE..ZRE171..CNG;1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| Common parts | ||||
| 16260-0T040 | ||||
| 16280-0T010 | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90339-16001 | ||||
| 90466-T0020 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 2603 | ||||
