ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis
Production
Oct 2013
-
Dec 2015
Engine
1ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1310- )2ZR#..ARL,IDN,IND,MA,PKN,TAIW,TH ; (1310- )3ZRFE..20G,20V;1ZRFAE,1ZRF

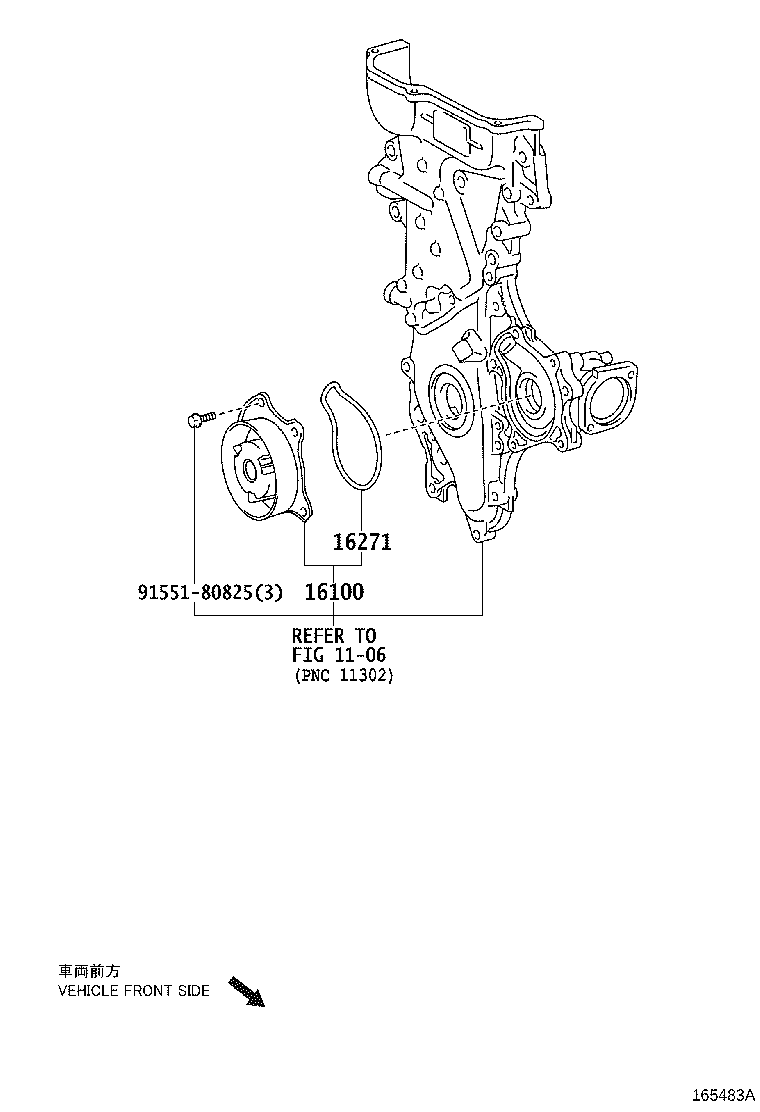

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39466 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16100-39466 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16271-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(1310-1512)3ZRFE..6F ; (1310-1601)1ZR#..CNG ; (1310-1601)1ZRFE..6F..GCC ; (1310-
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39466 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16100-39466 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| 16271-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
