ZRE171L-GEPDKV (2013)
Toyota Corolla/Altis
(1310- )1ZRFE..4FC

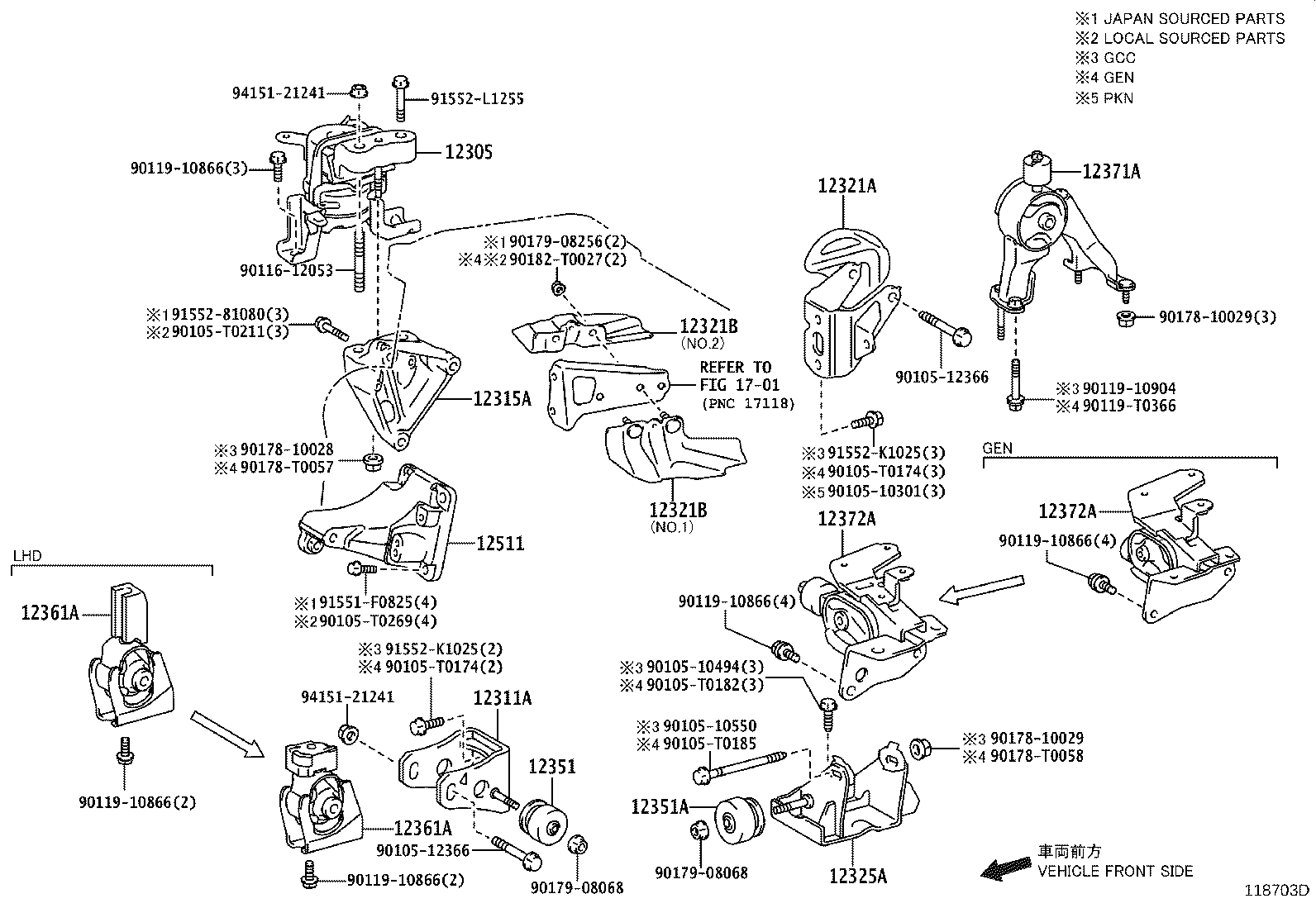

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T210 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T250 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 12315-37030 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| 12315-0T030 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (L) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T520 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE..ZRE171..4FC..GCC NO.1 |
1 | ||
| 43498-12051 |
1ZRFE..ZRE171..4FC..GCC NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE..ZRE171..4FC..GCC NO.1 |
1 | ||
| 43498-12051 |
1ZRFE..ZRE171..4FC..GCC NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T290 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-22080 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-11023 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T141 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T141 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T360 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T410 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T410 |
1ZRFE..ZRE171..4FC..GCC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0T050 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (L) |
1 | ||
| 12511-37010 |
1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC (J) |
1 | ||
| 12511-37010 |
1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-T0174 | ||||
| 90105-T0182 | ||||
| 90105-T0185 | ||||
| 90105-T0211 | ||||
| 90105-T0269 | ||||
| 90116-12053 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90119-T0366 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90178-T0057 | ||||
| 90178-T0058 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90182-T0027 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1255 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||
