Toyota Corolla/altis ZRE171 FRONT DRIVE SHAFT

ZRE171L-GEFNKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015

Engine 1ZRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1310- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

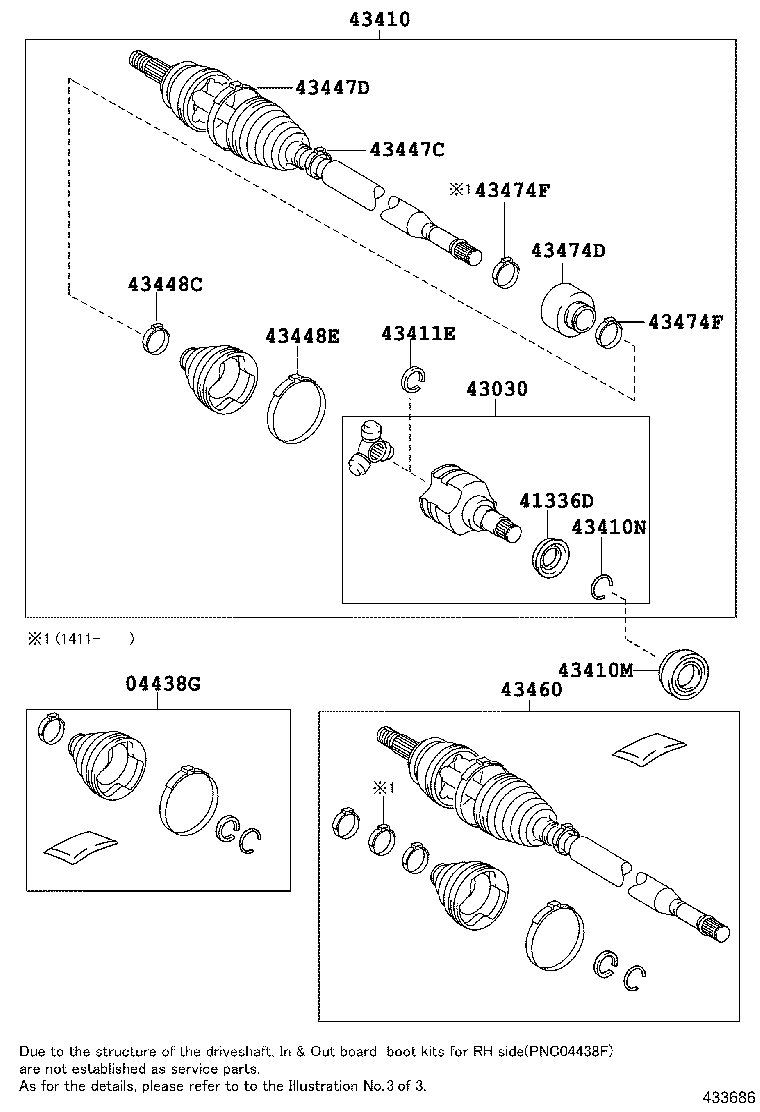

ILLUST NO. 1 OF 3(1310- )ZRE171..4FC..GCC ; (1310- )NZE170,ZRE171,172..ARL,GEN,IDN,MA,PHL,PKN,

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-02610	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04427-02610	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04427-12631	ZRE171..N	07/2014 - 08/2014	1
04427-12632	ZRE171..N	08/2014 - 09/2015	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02A60	ZRE171..6F..GCC IRAN SPEC	10/2013 - 12/2015	1
43410-12B00	ZRE171..6F..GCC	10/2013 - 09/2016	1
43410-02A60	ZRE171..6F..GCC YEMEN SPEC	10/2013 - 09/2016	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35065	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34045	ZRE171..N	10/2013 - 07/2017	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09T00	ZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH)	12/2013 - 08/2014	1
43460-80127	ZRE171..6F..GCC	10/2013 - 11/2014	1
43460-09W70	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43460-09W70	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460-80156	ZRE171..6F..GLI	11/2014 - 11/2015	1
43460-80151	ZRE171..N	07/2014 - 08/2014	1
43460-80162	ZRE171..N	08/2014 - 09/2015	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-02440	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43474-12120	NZE170,ZRE171,172..GCC,PKN	10/2013 - 10/2014	1
43474-12210	ZRE171..6F..GLI	11/2014 - 11/2015	1
43474-02440	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2

ILLUST NO. 2 OF 3(1310- )NZE170,ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TH,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-02750	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04428-02750	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04427-12631	ZRE171..N	07/2014 - 09/2015	1
04428-42101	ZRE171..6F..GLI	10/2013 - 11/2015	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42091	ZRE171..6F..GLI	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35066	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34044	ZRE171..N	10/2013 - 07/2017	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49586	ZRE171..6F..GLI	10/2013 - 11/2015	1
43470-80315	ZRE171..N	07/2014 - 09/2015	1
43470-8Z203	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43470-8Z203	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1

ILLUST NO. 2 OF 3(1310- )ZRE173..ATM,CVT..GCC ; (1310- )ZRE172,ZZE172..GEN,TAIW ; (1405- )Z

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-02750	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04428-02750	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04427-12631	ZRE171..N	07/2014 - 09/2015	1
04428-42101	ZRE171..6F..GLI	10/2013 - 11/2015	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42091	ZRE171..6F..GLI	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35066	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34044	ZRE171..N	10/2013 - 07/2017	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49586	ZRE171..6F..GLI	10/2013 - 11/2015	1
43470-80315	ZRE171..N	07/2014 - 09/2015	1
43470-8Z203	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43470-8Z203	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1

ILLUST NO. 1 OF 3(1310- )ZRE171..GCC

Click highlighted areas on diagram

RH(IRAN & IRAQ & YEMEN SPEC)

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-02610	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04427-02610	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04427-12631	ZRE171..N	07/2014 - 08/2014	1
04427-12632	ZRE171..N	08/2014 - 09/2015	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02A60	ZRE171..6F..GCC IRAN SPEC	10/2013 - 12/2015	1
43410-12B00	ZRE171..6F..GCC	10/2013 - 09/2016	1
43410-02A60	ZRE171..6F..GCC YEMEN SPEC	10/2013 - 09/2016	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35065	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34045	ZRE171..N	10/2013 - 07/2017	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09T00	ZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH)	12/2013 - 08/2014	1
43460-80127	ZRE171..6F..GCC	10/2013 - 11/2014	1
43460-09W70	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43460-09W70	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460-80156	ZRE171..6F..GLI	11/2014 - 11/2015	1
43460-80151	ZRE171..N	07/2014 - 08/2014	1
43460-80162	ZRE171..N	08/2014 - 09/2015	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-02440	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43474-12120	NZE170,ZRE171,172..GCC,PKN	10/2013 - 10/2014	1
43474-12210	ZRE171..6F..GLI	11/2014 - 11/2015	1
43474-02440	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2

ILLUST NO. 2 OF 3(1310- )ZRE171..GCC

Click highlighted areas on diagram

LH(IRAN & IRAQ & YEMEN SPEC)

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-02750	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04428-02750	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04427-12631	ZRE171..N	07/2014 - 09/2015	1
04428-42101	ZRE171..6F..GLI	10/2013 - 11/2015	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42091	ZRE171..6F..GLI	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43420-02880	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35066	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34044	ZRE171..N	10/2013 - 07/2017	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49586	ZRE171..6F..GLI	10/2013 - 11/2015	1
43470-80315	ZRE171..N	07/2014 - 09/2015	1
43470-8Z203	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43470-8Z203	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1

ILLUST NO. 1 OF 3(1310- )ZRE171..CVT,MTM..GCC

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12371	ZRE171..N	07/2014 - 09/2015	1
04437-02460	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
04438-42201	ZRE171..6F..GLI	10/2013 - 11/2015	1
04437-02460	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-02230	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
41336-12060	ZRE171..6F..GLI	10/2013 - 11/2015	1
41336-02230	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02280	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43040-32040	ZRE171..6F..GLI	10/2013 - 11/2015	1
43040-02280	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02A60	ZRE171..6F..GCC IRAN SPEC	10/2013 - 12/2015	1
43410-12B00	ZRE171..6F..GCC	10/2013 - 09/2016	1
43410-02A60	ZRE171..6F..GCC YEMEN SPEC	10/2013 - 09/2016	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35065	ZRE171..6F..GLI	10/2013 - 11/2015	1
90311-34045	ZRE171..N	10/2013 - 07/2017	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-02470	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43425-02470	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90521-27005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-06300	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90520-22005	ZRE171..6F..GLI	10/2013 - 11/2015	1
43425-06300	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12190	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02890	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12190	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12180	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-12180	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-02A00	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06710	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
42345-06710	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
90949-01078	ZRE171..6F..GLI	10/2013 - 11/2015	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06590	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
42345-12160	ZRE173..6F;ZRE171..6F..GLI	10/2013 - 11/2015	1
42345-06590	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09T00	ZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH)	12/2013 - 08/2014	1
43460-80127	ZRE171..6F..GCC	10/2013 - 11/2014	1
43460-09W70	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43460-09W70	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43460-80156	ZRE171..6F..GLI	11/2014 - 11/2015	1
43460-80151	ZRE171..N	07/2014 - 08/2014	1
43460-80162	ZRE171..N	08/2014 - 09/2015	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-02440	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	1
43474-12120	NZE170,ZRE171,172..GCC,PKN	10/2013 - 10/2014	1
43474-12210	ZRE171..6F..GLI	11/2014 - 11/2015	1
43474-02440	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	ZRE171..6F..GLI MARK 35.4 OR 35.75M	11/2014 - 11/2015	2
42345-02B60	ZRE171..6F..GLI YEMEN SPEC	10/2013 - 11/2015	2
90949-01947	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.45M	10/2013 - 11/2014	1
42345-14010	NZE170,ZRE171..(GLI,XLI)..(GCC,PKN) MARK 35.4 OR 35.75M	10/2013 - 11/2014	1
42345-02B60	ZRE171..6F..GLI IRAN SPEC	10/2013 - 11/2015	2

ZRE171L-GEFNKV (2013)

ILLUST NO. 3 OF 3(1310- )

ILLUST NO. 1 OF 3(1310- )ZRE171..4FC..GCC ; (1310- )NZE170,ZRE171,172..ARL,GEN,IDN,MA,PHL,PKN,

ILLUST NO. 2 OF 3(1310- )NZE170,ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TH,VN

ILLUST NO. 2 OF 3(1310- )ZRE173..ATM,CVT..GCC ; (1310- )ZRE172,ZZE172..GEN,TAIW ; (1405- )Z

ILLUST NO. 1 OF 3(1310- )ZRE171..GCC

ILLUST NO. 2 OF 3(1310- )ZRE171..GCC

ILLUST NO. 1 OF 3(1310- )ZRE171..CVT,MTM..GCC

Part Price Details
