ZRE171L-GEFNKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )NZE170..5F..XLI ; (1310- )ZRE171..6F..CNG,HTWC..GCC,GEN,PHL,TH

Click highlighted areas on diagram

EC60,C50

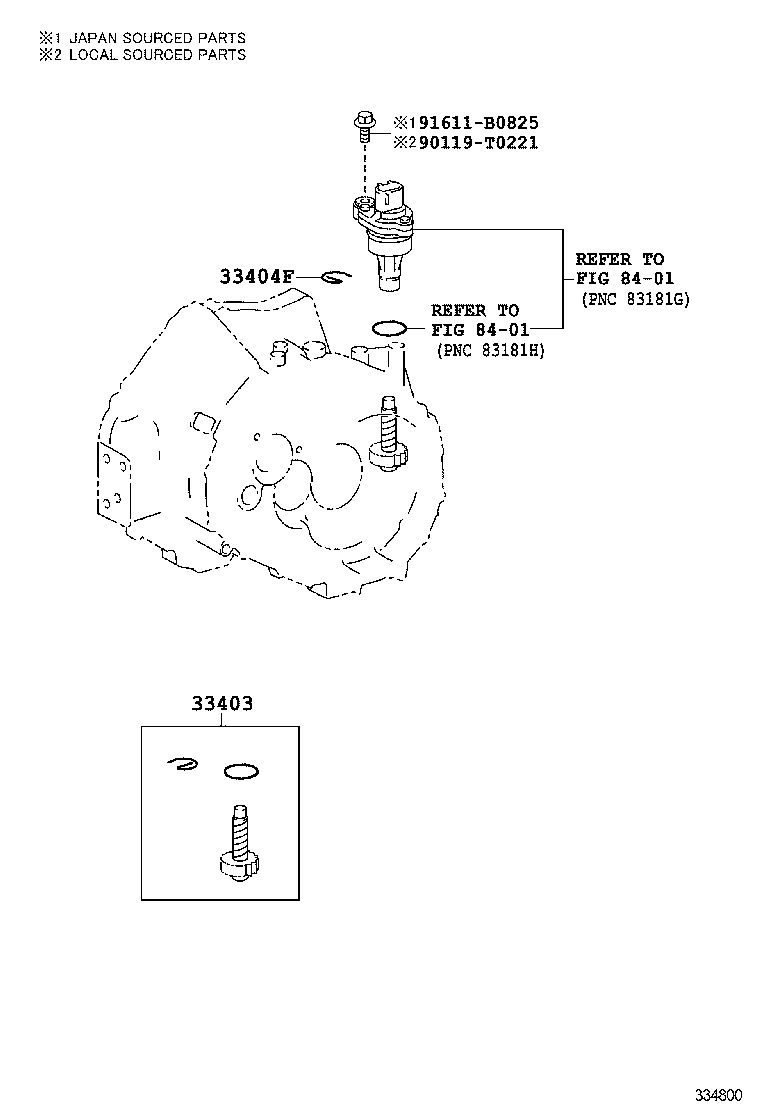

diagram 33403 33404F 8401 8401 90119T0221 91611B0825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29395

ZRE171..6F..GLI

N=29,MARK 29:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ZRE171..6F..GLI

 1
Common parts
90119-T0221
91611-B0825
Linked diagrams
8401
