ZRE171L-GEFNKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310- )ZRE171..LHD..6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31453A 31453B 55107A 8401 8401 9011908C42 90119T0031 9017910088 9018508002 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02480

ZRE171..6F..GLI

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZRE171..6F..GLI

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE173..6F;ZRE171..6F..GLI

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE173..6F;ZRE171..6F..GLI

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE173..6F;ZRE171..6F..GLI

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE173..6F;ZRE171..6F..GLI

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10055

ZRE173..6F;ZRE171..6F..GLI

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
46441-12020

ZRE173..6F;ZRE171..6F..GLI

 1
31321 - PAD, CLUTCH PEDAL
31321-02060

ZRE173..6F;ZRE171..6F..GLI

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10174

ZRE173..6F;ZRE171..6F..GLI

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

ZRE173..6F;ZRE171..6F..GLI

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ZRE173..6F;ZRE171..6F..GLI

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02400

ZRE171..6F..GLI

 1
Common parts
90119-08C42
90119-T0031
90179-10088
90185-08002
90468-16142
Linked diagrams
8401

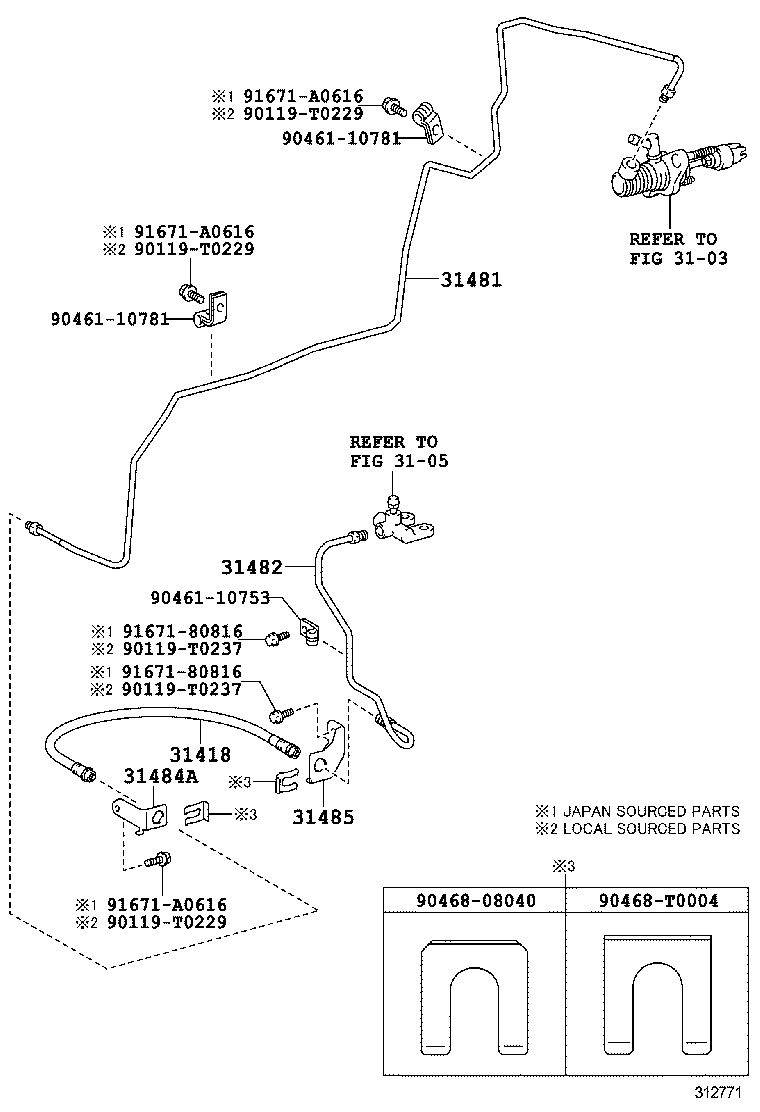

ILLUST NO. 2 OF 2(1310- )ZRE171..LHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484A 31485 90119T0229 90119T0229 90119T0229 90119T0237 90119T0237 9046110753 9046110781 9046110781 9046808040 90468T0004 9167180816 9167180816 91671A0616 91671A0616 91671A0616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-T2039

ZRE173..6F;ZRE171..6F..GLI

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02540

ZRE171..6F..GLI

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02460

ZRE171..6F..GLI

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-02330

ZRE173..6F;ZRE171..6F..GLI

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-02340

ZRE171..6F..GLI

 1
Common parts
90119-T0229
90119-T0237
90461-10753
90461-10781
90468-08040
90468-T0004
91671-80816
91671-A0616
Linked diagrams
3103
3105
