Toyota Corolla/altis ZRE143 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZRE143R-GEXVKE (2010)
6701 - FRONT DOOR PANEL & GLASS

ZRE143R-GEXVKE (2010)

Toyota Corolla/Altis

Production Aug 2010 - Nov 2013

Engine 3ZRFE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

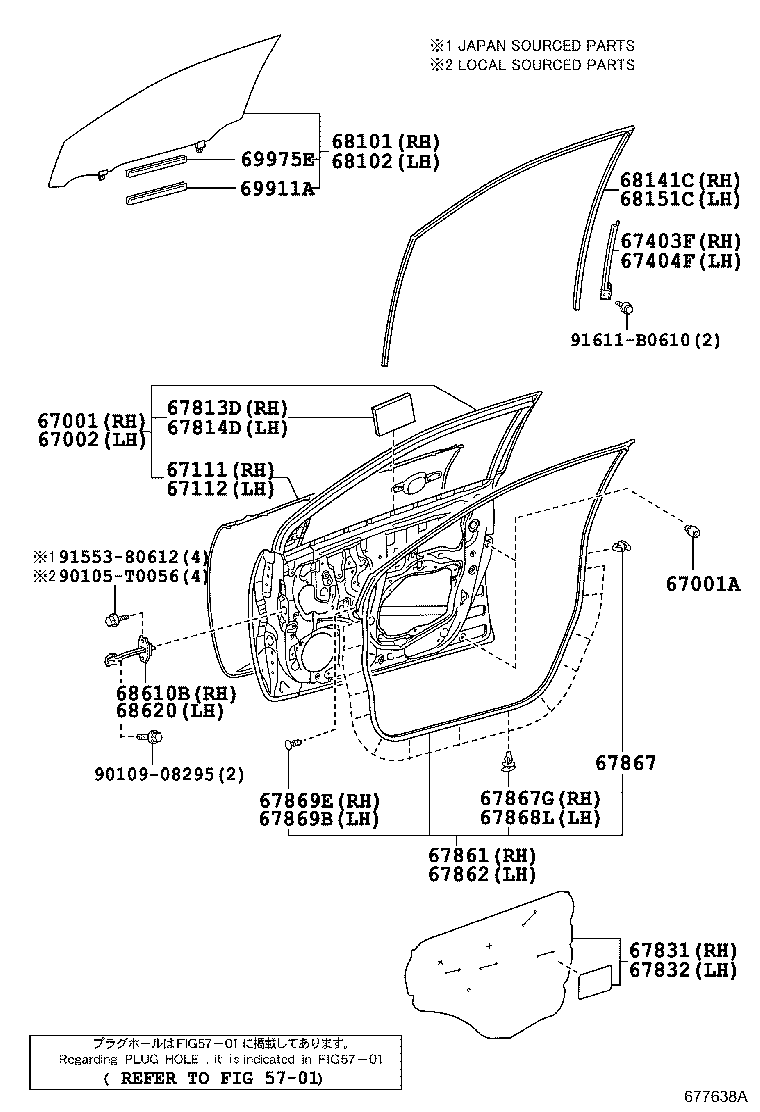

ILLUST NO. 1 OF 2(0712-1211)IDN,MA,PHL,TH ; (0712- )GCC,IND,PKN,TAIW,VN

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-02350	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67001-02350	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;NDE140,ZRE141,ZZE141..16E,16G,16V,E,G,LIMO;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC	08/2010 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124	CE140,NDE140,NZE140,ZRE14#,ZZE141 BLACK X NATURAL	08/2013 - 12/2999	4
90541-09143	CE140,NDE140,NZE140,ZRE14#,ZZE141 BLACK X YELLOW	08/2013 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-02340	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67002-02340	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;NDE140,ZRE141,ZZE141..16E,16G,16V,E,G,LIMO;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC	08/2010 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-02190	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-02190	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-02120	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-02120	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	1
67813D - SHEET, QUARTER PANEL SILENCER, RH
67817-47010	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67817-47010	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	2
67814D - SHEET, QUARTER PANEL SILENCER, LH
67817-47010	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67817-47010	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67831-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67831-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67832-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67832-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-02230	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-02230	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67867 - CLIP, DOOR WEATHERSTRIP
90467-04034	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67868-02020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	14
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67868-02020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-02292	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,VN)..HTWC *TEM,T=3.5,GREEN	09/2011 - 12/2999	1
68101-02291	ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..IDN,MA,PHL,PKN,TH,VN *TEM,T=3.5,GREEN	08/2010 - 09/2011	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-02291	ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..IDN,MA,PHL,PKN,TH,VN *TEM,T=3.5,GREEN	08/2010 - 09/2011	1
68102-02292	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,VN)..HTWC *TEM,T=3.5,GREEN	09/2011 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-02190	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)	08/2010 - 12/2012	1
68610-02191	CE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN	12/2012 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-02190	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)	08/2010 - 12/2012	1
68610-02191	CE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN	12/2012 - 12/2999	1
69911A - CHANNEL, FRONT DOOR GLASS, NO.1
69911-13010	ZZE141..16E..(MA,PHL);CE140,NZE140,ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT,GLI,LIMO,XLI)..(IDN,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	2
69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1
69975-16020	ZZE141..16E..(MA,PHL);CE140,NZE140,ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT,GLI,LIMO,XLI)..(IDN,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	2
Common parts
90105-T0056
90109-08295
91553-80612
91553-80620
91611-B0610
Linked diagrams
5701

ILLUST NO. 1 OF 2(1211- )IDN,MA,PHL,TH

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-02350	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67001-02350	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;NDE140,ZRE141,ZZE141..16E,16G,16V,E,G,LIMO;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC	08/2010 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124	CE140,NDE140,NZE140,ZRE14#,ZZE141 BLACK X NATURAL	08/2013 - 12/2999	4
90541-09143	CE140,NDE140,NZE140,ZRE14#,ZZE141 BLACK X YELLOW	08/2013 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-02340	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67002-02340	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;NDE140,ZRE141,ZZE141..16E,16G,16V,E,G,LIMO;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC	08/2010 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-02190	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-02190	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-02120	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-02120	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	1
67813D - SHEET, QUARTER PANEL SILENCER, RH
67817-47010	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67817-47010	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	2
67814D - SHEET, QUARTER PANEL SILENCER, LH
67817-47010	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67817-47010	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)	08/2010 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67831-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02250	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67832-02310	ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)	08/2011 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-02230	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-02230	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67867 - CLIP, DOOR WEATHERSTRIP
90467-04034	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67868-02020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	14
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67868-02020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-02292	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,VN)..HTWC *TEM,T=3.5,GREEN	09/2011 - 12/2999	1
68101-02291	ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..IDN,MA,PHL,PKN,TH,VN *TEM,T=3.5,GREEN	08/2010 - 09/2011	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-02291	ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..IDN,MA,PHL,PKN,TH,VN *TEM,T=3.5,GREEN	08/2010 - 09/2011	1
68102-02292	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,VN)..HTWC *TEM,T=3.5,GREEN	09/2011 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-02190	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)	08/2010 - 12/2012	1
68610-02191	CE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN	12/2012 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-02190	ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)	08/2010 - 12/2012	1
68610-02191	CE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN	12/2012 - 12/2999	1
69911A - CHANNEL, FRONT DOOR GLASS, NO.1
69911-13010	ZZE141..16E..(MA,PHL);CE140,NZE140,ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT,GLI,LIMO,XLI)..(IDN,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	2
69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1
69975-16020	ZZE141..16E..(MA,PHL);CE140,NZE140,ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT,GLI,LIMO,XLI)..(IDN,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	2
Common parts
90105-T0056
90109-08295
91553-80612
91611-B0610
Linked diagrams
5701
