ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis
ILLUST NO. 2 OF 2(0712- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

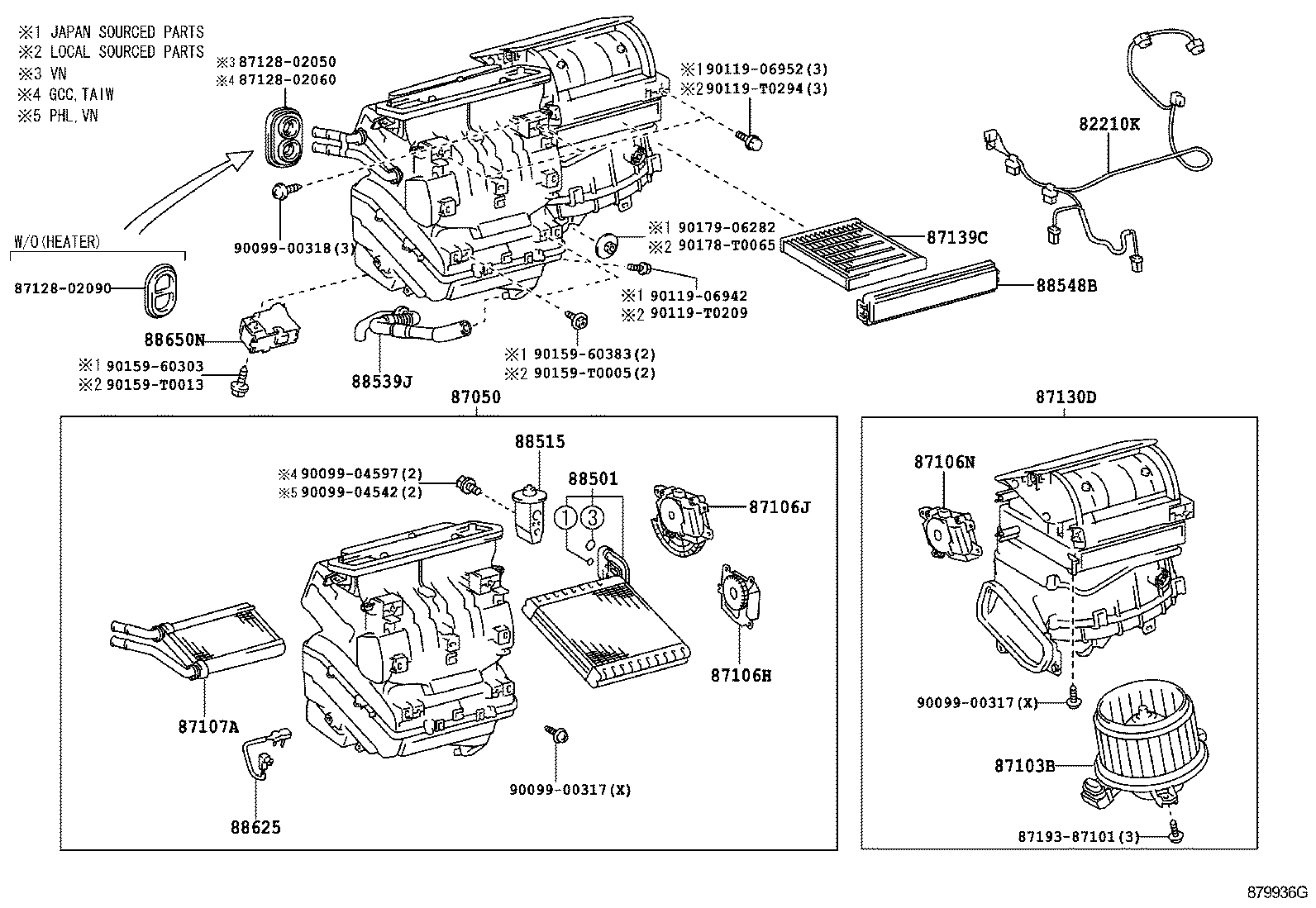

ILLUST NO. 1 OF 2(0712- )ZRE14#..16G,16V,18E,20E,20G,20V,G,GLI..GCC,PHL,TAIW
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02070 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 82212-02070 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02F00 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87050-02F00 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02350 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87103-02350 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87103-02350 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87103-02350 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87103-02351 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87103-02351 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-02450 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106-02450 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106-02550 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02550 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02450 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02450 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02460 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02460 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02560 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02560 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02460 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106-02460 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-02480 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106-02480 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87106-02480 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02480 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02580 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87106-02580 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K070 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 87107-0K070 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 87107-0K070 |
ZRE14#..GCC,TAIW |
1 | ||
| 87107-0K070 |
ZRE14#..GCC,TAIW |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02580 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87130-02580 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 87130-02580 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87130-02580 |
ZRE142,143..(18E,20G,G)..TAIW |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-06070 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 87139-06070 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 87139-06070 |
ZRE142,143..TAIW STANDARD |
1 | ||
| 87139-06070 |
ZRE142,143..TAIW STANDARD |
1 | ||
| 87139-50100 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) *DPF |
1 | ||
| 87139-50100 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K191 |
ZRE14#..GCC,TAIW |
1 | ||
| 88501-0K191 |
ZRE14#..GCC,TAIW |
1 | ||
| 88501-0K190 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88501-0K190 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88501-0K190 |
ZRE14#..GCC,TAIW |
1 | ||
| 88501-0K190 |
ZRE14#..GCC,TAIW |
1 | ||
| 88501-02320 |
ZRE14#..GCC,TAIW |
1 | ||
| 88501-02320 |
ZRE14#..GCC,TAIW |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02380 |
ZRE14#..GCC,TAIW |
1 | ||
| 88515-02380 |
ZRE14#..GCC,TAIW |
1 | ||
| 88515-0D170 |
ZRE14#..GCC,TAIW |
1 | ||
| 88515-0D170 |
ZRE14#..GCC,TAIW |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02190 |
ZRE14#..GCC,TAIW |
1 | ||
| 88539-02190 |
ZRE14#..GCC,TAIW |
1 | ||
| 88539-02190 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88539-02190 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88548-0K030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 88548-0K030 |
ZRE14#..GCC,TAIW |
1 | ||
| 88548-0K030 |
ZRE14#..GCC,TAIW |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02100 |
ZRE14#..GCC,TAIW |
1 | ||
| 88620-02100 |
ZRE14#..GCC,TAIW |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02850 |
ZRE142,143..CVFC..(18E,20G,20V,G)..(TAIW,VN) |
1 | ||
| 88650-02850 |
ZRE142,143..CVFC..(18E,20G,20V,G)..(TAIW,VN) |
1 | ||
| Common parts | ||||
| 87128-02050 | ||||
| 87128-02060 | ||||
| 87128-02090 | ||||
| 87193-87101 | ||||
| 90099-00317 | ||||
| 90099-00318 | ||||
| 90099-04542 | ||||
| 90099-04597 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90179-06282 | ||||
