Toyota Corolla/altis ZRE143 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZRE143L-GEXGKR (2010)
8401 - SWITCH & RELAY & COMPUTER

ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013

Engine 3ZRFE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

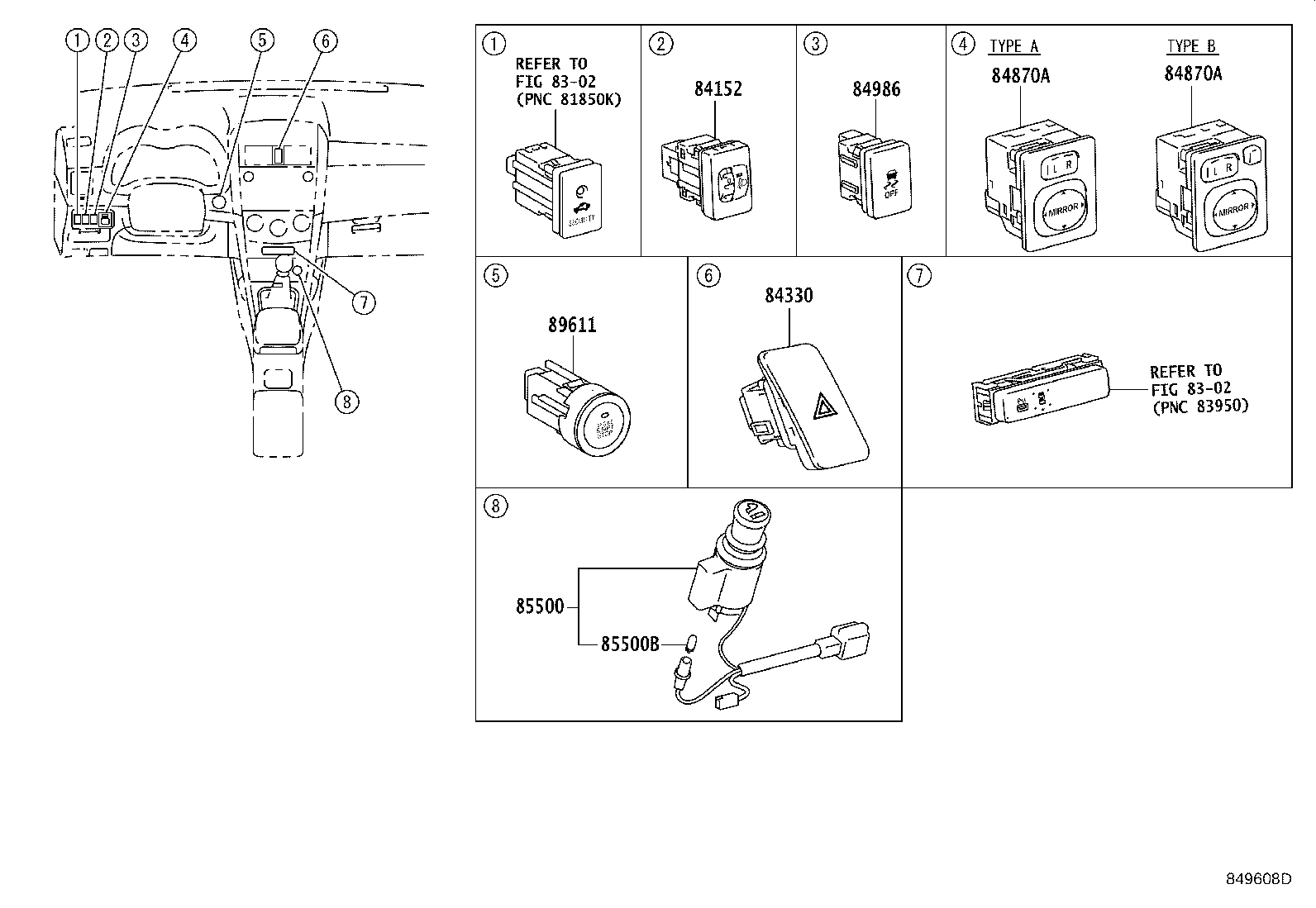

ILLUST NO. 5 OF 8(0712- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12520	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0M010	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW TYPE B:REFER ILLUST.	12/2007 - 07/2010	1
84870-0M010	ZRE142,143..TAIW TYPE B:REFER ILLUST.	07/2010 - 10/2013	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0M010	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW TYPE B:REFER ILLUST.	12/2007 - 07/2010	1
84870-0M010	ZRE142,143..TAIW TYPE B:REFER ILLUST.	07/2010 - 10/2013	1
85500B - BULB, CIGARETTE LIGHTER
90010-01163	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) 12V 1.2W,W(CAP)	07/2010 - 12/2999	1
90010-01163	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 12V 1.2W,W(CAP)	12/2007 - 07/2010	1
89611 - SWITCH, PUSH START
89611-52021	ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE143..CVFC..(20V,G)..(IDN,PHL,TAIW,TH,VN)	07/2010 - 04/2011	1
89611-52021	ZRE143..(20G,20V)..TAIW	12/2007 - 07/2010	1
89611-52022	ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE142,143..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN)	05/2011 - 02/2012	1
89611-52023	ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE142,143..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN)	03/2012 - 12/2999	1
Linked diagrams
8302

ILLUST NO. 2 OF 8(0712- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty	Price
Common parts
90119-T0096
91631-B0614
93315-14010

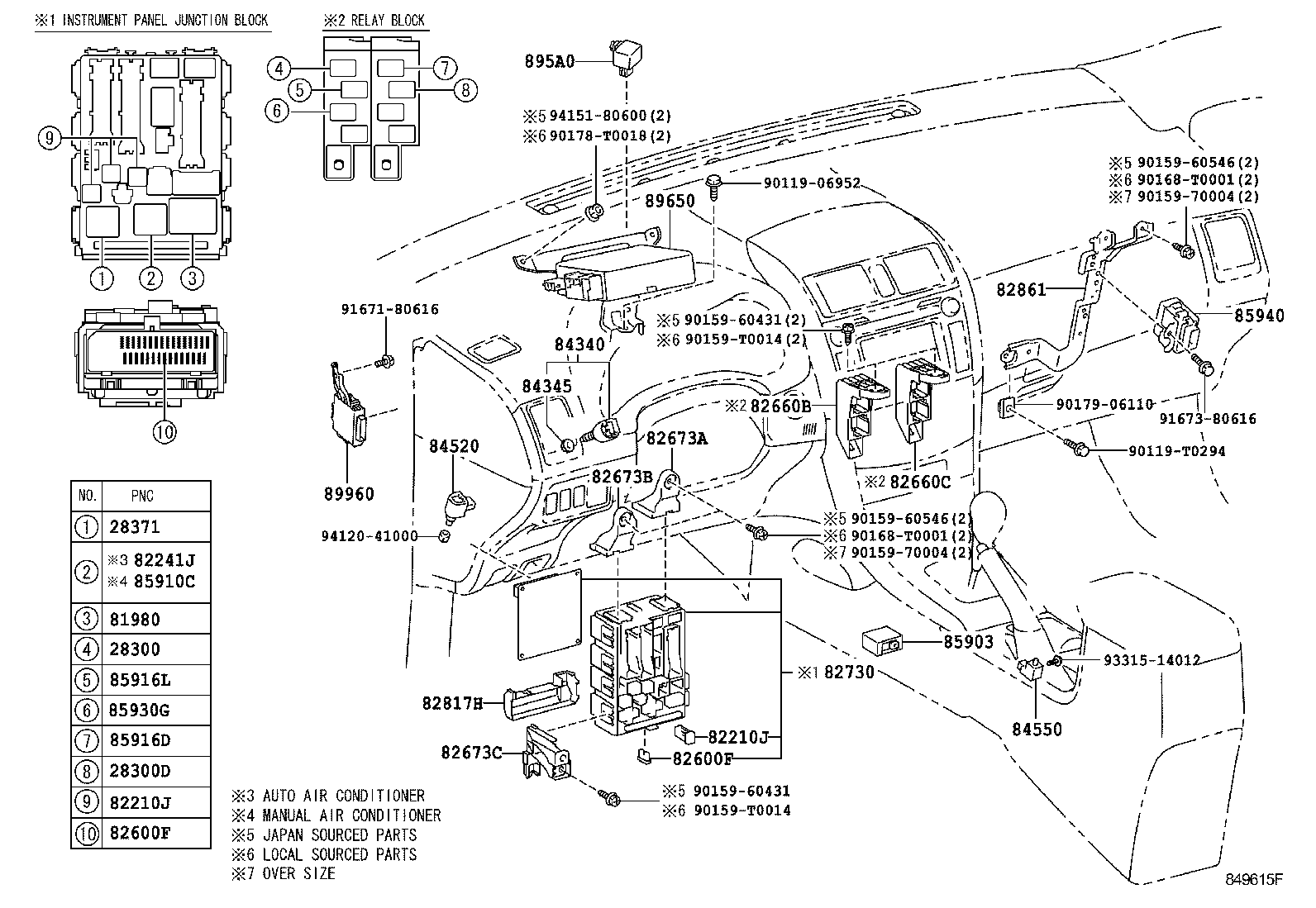

ILLUST NO. 4 OF 8(0712- )LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-28010	1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
28300D - RELAY, STARTER CUT
90987-T2001	3ZRFE..ZRE143..(20G,20V)..TAIW P/N LABEL=90987T2001	12/2007 - 07/2010	1
90987-02027	3ZRFE..ZRE143..(20G,20V)..TAIW P/N LABEL=9098702027	12/2007 - 07/2010	1
90987-T2001	1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN) P/N LABEL=90987T2001	07/2010 - 12/2999	1
90987-02027	1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN) P/N LABEL=9098702027	07/2010 - 12/2999	1
28371 - RELAY, IGNITION, NO.1
90987-T2009	2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2C,1NDTV,2NZFE,1ZRFE,3ZRFE..CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
90987-T2009	1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-46010	ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	1
81980-0D050	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
82210J - FUSIBLE LINK
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
82210J - FUSIBLE LINK
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
82241J - PIN, SHORT
82241-42010	ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
82241-42010	ZRE142..HTWCF;ZRE142..18E..TH..HTWC;NDE140,ZRE143..6F,CVFC;ZRE141,142..(16G,16V,18E,18G,18V,E,G)..(IDN,IND,MA,PHL,TAIW)	07/2010 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-02V30	ZRE143..TAIW	07/2010 - 10/2012	1
82730-02V31	ZRE143..TAIW	11/2012 - 12/2012	1
82730-02V32	ZRE143..TAIW	12/2012 - 10/2013	1
82861 - BRACKET, COMPUTER INTEGRATION, NO.1
82861-12030	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
85916D - RELAY, FOG LAMP
90987-02027	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
90987-02027	ZRE142,143..(18E,20G,G)..TAIW	07/2010 - 10/2013	1
85916L - RELAY, REAR FOG LAMP
90987-02027	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
90987-02027	ZRE142,143..TAIW	07/2010 - 10/2013	1
85930G - RELAY, ACC
90987-02027	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC (J)	07/2010 - 12/2999	1
90987-T2001	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC (L)	07/2010 - 12/2999	1
90987-T2001	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
895A0 - RELAY ASSY, STOP LAMP CONTROL
895A0-28010	ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,LIMO)..(IDN,IND,MA,PHL,PKN,TH,VN)	12/2007 - 09/2009	1
895A0-46020	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12540	ZRE142,143..TAIW	07/2010 - 02/2012	1
89650-12541	ZRE142,143..TAIW	03/2012 - 10/2013	1
89960 - COMPUTER ASSY, HEADLAMP LEVELING
89960-12450	ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
89960-12450	ZRE143..TAIW	07/2010 - 10/2013	1
Common parts
90119-06952
90119-T0294
90159-60431
90159-60546
90159-70004
90159-T0014
90168-T0001
90178-T0018
90179-06110
91671-80616
91673-80616
93315-14012
94120-41000
94151-80600

ILLUST NO. 8 OF 8(0712- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

Part #	Description	Period	Qty
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02040	ZRE14#..GCC,TAIW	07/2010 - 10/2013	2
84231-02040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02040	ZRE14#..GCC,TAIW	07/2010 - 10/2013	2
84231-02040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02040	ZRE14#..GCC,TAIW	07/2010 - 10/2013	2
84231-02040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02040	ZRE14#..GCC,TAIW	07/2010 - 10/2013	2
84231-02040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-06040	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
84810-06040	ZRE142,143..TAIW	07/2010 - 10/2013	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-06040	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
84810-06040	ZRE142,143..TAIW	07/2010 - 10/2013	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06040	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	2
84810-06040	ZRE142,143..TAIW	07/2010 - 10/2013	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06040	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	2
84810-06040	ZRE142,143..TAIW	07/2010 - 10/2013	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D160	ZRE142,143..TAIW	07/2010 - 10/2013	1
84820-0D160	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D160	ZRE142,143..TAIW	07/2010 - 10/2013	1
84820-0D160	ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-12010	ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
89407-12010	ZRE143..20G..TAIW;NDE140,ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IND,TAIW,TH)	07/2010 - 03/2013	1
Common parts
48966-68010
90159-40085
90164-40103
90164-T0005
90166-70001
91631-B0820
94150-10641

ILLUST NO. 6 OF 8(0712- )

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0D201	ZRE142,143..(18E,20G,G)..TAIW	07/2010 - 10/2013	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0D201	ZRE142,143..(18E,20G,G)..TAIW	07/2010 - 10/2013	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0D110	ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW	12/2007 - 07/2010	1
84306-0D110	ZRE142,143..(18E,20G,G)..TAIW	07/2010 - 10/2013	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06211	ZRE142,143..TAIW	07/2010 - 10/2013	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06211	ZRE142,143..TAIW	07/2010 - 10/2013	1
Common parts
90159-50199
90159-50265
90159-T0007
90168-40113
90168-40129
Linked diagrams
4501

ILLUST NO. 7 OF 8(0712- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-02030E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84921-02030B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84921-02030E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-02030E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84921-02030B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84921-02030E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-02040E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84921-02040B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84921-02040E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-02040E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84921-02040B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84921-02040E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-06020E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84920-06020E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84920-06020B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-06020E0	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW GREGE,TRIM4#	12/2007 - 07/2010	1
84920-06020E0	ZRE143..20G..TAIW GREGE,TRIM4#	07/2010 - 10/2013	1
84920-06020B1	ZRE143..20G..TAIW DK.GRAY,TRIM1#	07/2010 - 10/2013	1
84922C - SWITCH, FRONT POWER SEAT, LH
84922-02030	ZRE143,ZZE142..(18G,18V,20G,20V)..TAIW	12/2007 - 07/2010	1
84922-02030	ZRE143..20G..TAIW	07/2010 - 10/2013	1
Common parts
90167-40044
90167-T0019

ILLUST NO. 1 OF 8(1007- )GCC,TAIW ; (1008- )ZRE14#..IDN,MA,PHL,TH ; (1010- )ZRE14#..IND,PKN

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) DENSO	12/2007 - 07/2010	1
83530-60020	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) YAZAKI	12/2007 - 07/2010	1
83530-60020	ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);NZE140,ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC YAZAKI	07/2010 - 12/2999	1
83530-28020	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW;ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH);NZE140,ZRE141..16E,16G,16V,GLI,XLI;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC DENSO	07/2010 - 12/2999	1
89467B - SENSOR, AIR FUEL RATIO
89467-52060	ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141..16E,16G,16V,D,N,XLI;ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)	07/2010 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI)	07/2010 - 12/2999	1
89615-20090	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
Common parts
82715-12L60
82715-12Q50
82715-20C40
82715-42710
90105-T0178
90179-06219
90430-18008
91551-80835
91553-81014
91651-40620
91651-40625

ILLUST NO. 3 OF 8(0712- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

Part #	Description	Period	Qty
82210J - FUSIBLE LINK
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK	12/2007 - 07/2010	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
90982-08295	ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) 30A,TERM.:FEMALE,PNK	07/2010 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82616 - PULLER, FUSE
82616-58010	CE140,NDE140,NZE140,ZRE14#,ZZE14#	12/2007 - 05/2011	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-12280	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW;ZRE141,142..(16V,18E)..(PHL,TH)..HTWC;ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12660	ZRE143..TAIW	07/2010 - 10/2013	1
85916P - RELAY, HEADLAMP
90987-02025	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
90987-02025	ZRE14#..GCC,TAIW	07/2010 - 10/2013	1
85926 - RELAY, HEADLAMP DIMMER
90987-04010	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
90987-04010	ZRE14#..GCC,TAIW	07/2010 - 05/2012	1
90987-02025	ZRE14#..GCC,TAIW	05/2012 - 10/2013	1
85927 - RELAY, COOLING FAN
90987-T2001	ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) (L)	07/2010 - 12/2999	1
90987-02027	ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) (J)	07/2010 - 12/2999	1
Common parts
91671-80616

ZRE143L-GEXGKR (2010)

ILLUST NO. 5 OF 8(0712- )LHD

ILLUST NO. 2 OF 8(0712- )

ILLUST NO. 4 OF 8(0712- )LHD

ILLUST NO. 8 OF 8(0712- )

ILLUST NO. 6 OF 8(0712- )

ILLUST NO. 7 OF 8(0712- )

ILLUST NO. 1 OF 8(1007- )GCC,TAIW ; (1008- )ZRE14#..IDN,MA,PHL,TH ; (1010- )ZRE14#..IND,PKN

ILLUST NO. 3 OF 8(0712- )

Part Price Details
