ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

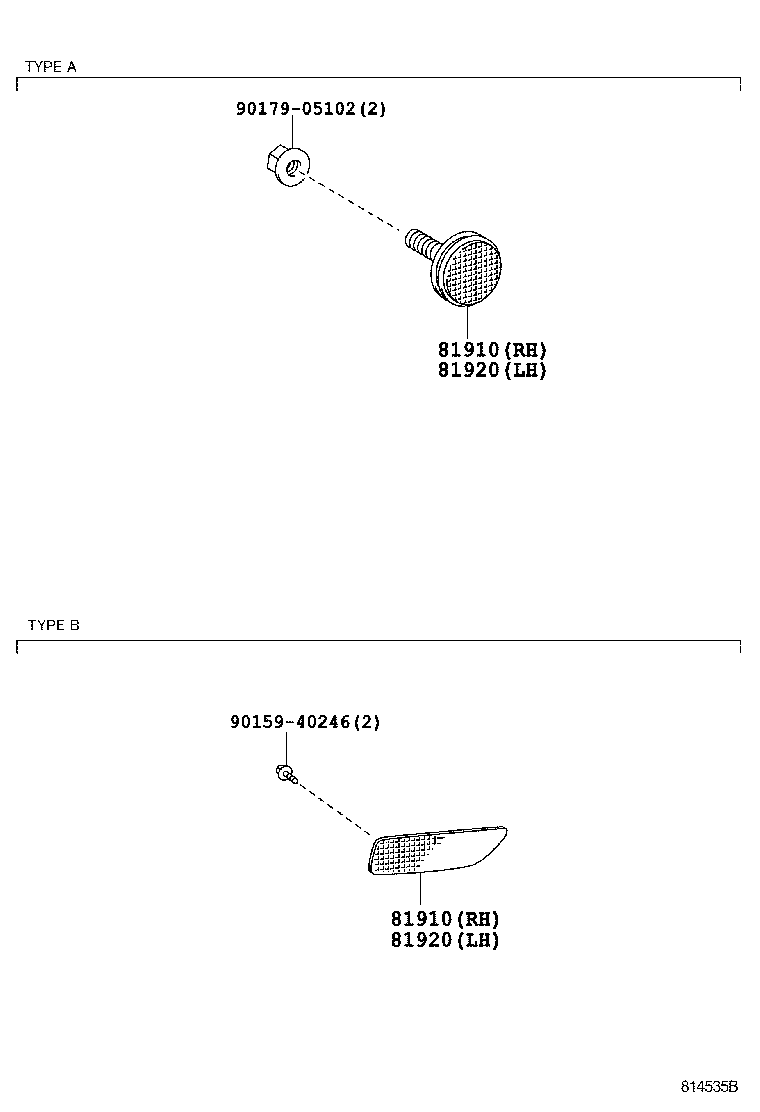

Click highlighted areas on diagram

diagram 81910 81910 81920 81920 9015940246 9017905102
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-02060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

TYPE A:REFER ILLUST.

 1
81910-02140

ZRE14#..GCC,TAIW

TYPE B:REFER ILLUST.

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-02060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

TYPE A:REFER ILLUST.

 1
81910-02140

ZRE14#..GCC,TAIW

TYPE B:REFER ILLUST.

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-02060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

TYPE A:REFER ILLUST.

 1
81920-02040

ZRE14#..GCC,TAIW

TYPE B:REFER ILLUST.

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-02060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

TYPE A:REFER ILLUST.

 1
81920-02040

ZRE14#..GCC,TAIW

TYPE B:REFER ILLUST.

 1
Common parts
90159-40246
90179-05102
