ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis
ILLUST NO. 1 OF 2(0712- )HTWC

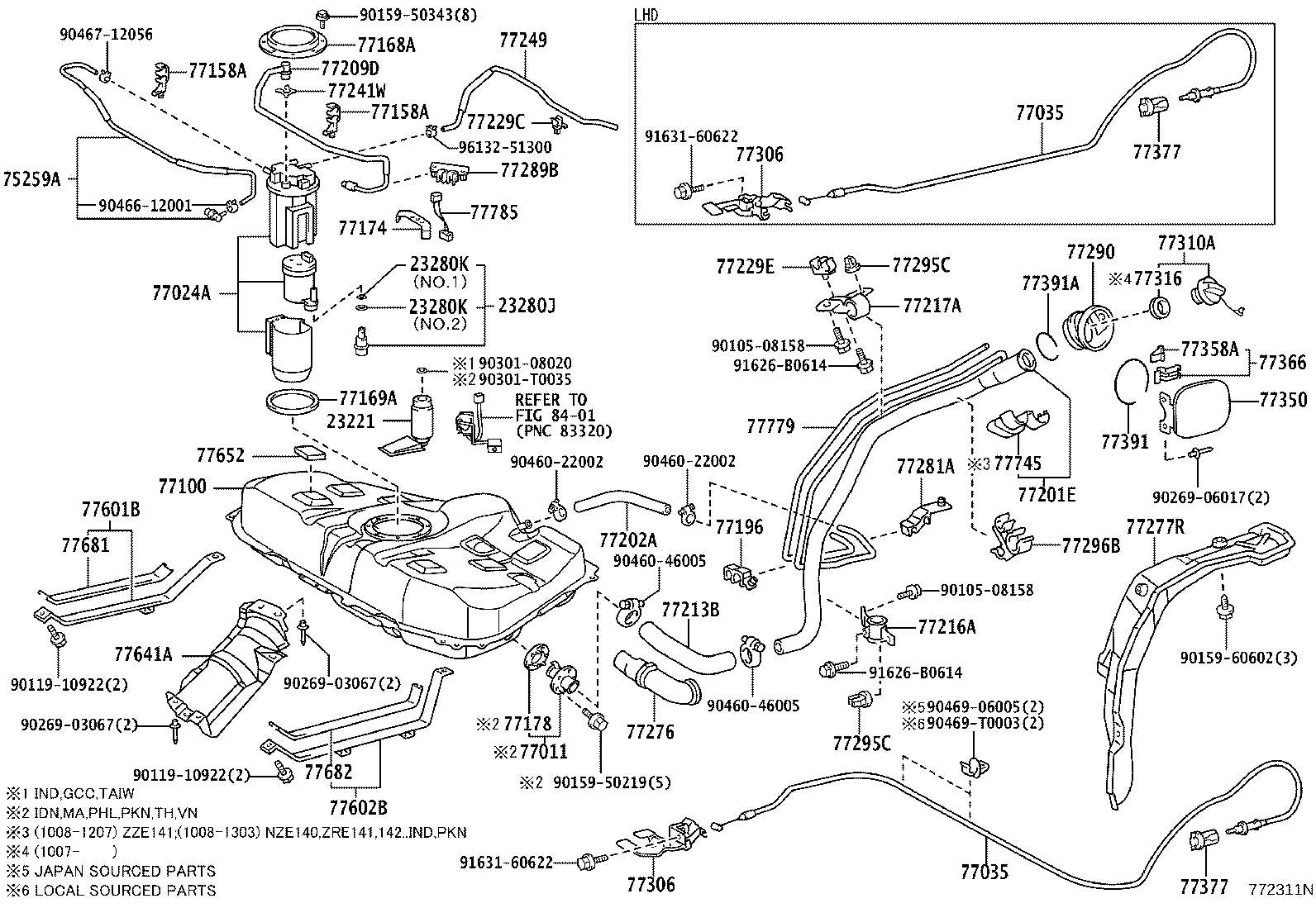

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0T120 |
2ZRFE,3ZRFE..ZRE142,143..GCC,TAIW |
1 | ||
| 23220-0T121 |
2ZRFE,3ZRFE..ZRE142,143..GCC,TAIW |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 23280-21010 |
1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 90301-04013 |
1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2NZFE,1ZRFE,3ZRFE..NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) NO.1 |
1 | ||
| 90301-15024 |
1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2NZFE,1ZRFE,3ZRFE..NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 90301-04013 |
1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2NZFE,1ZRFE,3ZRFE..NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) NO.1 |
1 | ||
| 90301-15024 |
1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2NZFE,1ZRFE,3ZRFE..NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) NO.2 |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-02060 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77259-02060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02132 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77024-02132 |
ZRE14#..GCC,TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02280 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77035-02280 |
ZRE14#..GCC,TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02280 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77035-02280 |
ZRE14#..GCC,TAIW |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02430 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 77001-02430 |
ZRE142,143..TAIW |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 77158-20040 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 77158-20040 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-02020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77168-02020 |
ZRE14#..GCC,TAIW |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77169-52010 |
CE140,NDE140,NZE140,ZRE14#..(18E,18G,18J,18V,20D,20DSA,20G,E,G,GLI,XLI)..(GCC,IND,PKN,TAIW) |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-02070 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77174-02070 |
ZRE14#..GCC,TAIW |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77196-12060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02260 |
ZRE14#..GCC,TAIW |
1 | ||
| 77201-02260 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) L=340 |
1 | ||
| 95313-13034 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12240 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77213-32090 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77216-02140 |
CE140,NDE140,NZE140,ZRE14#..GCC,IND,PKN,TAIW |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02100 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77217-02100 |
CE140,NDE140,NZE140,ZRE14#..GCC,IND,PKN,TAIW |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12110 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77229-12110 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-12100 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77229-12100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
NZE140,ZRE143;ZZE142..18V..IND;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
1 | ||
| 77241-33011 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-02030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77249-02030 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77276-12050 |
ZRE142..GCC,TAIW;NDE140,ZRE141,143..GCC,IND,TAIW |
1 | ||
| 77276-12120 |
ZRE142..HTWCF;ZRE142..GCC,TAIW;NDE140,ZRE141,143..GCC,IND,TAIW |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02100 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77277-02100 |
ZRE14#..GCC,TAIW |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12110 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77281-12110 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52100 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77289-52100 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02130 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77291-02130 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 77295-12070 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 77295-12070 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77296-12070 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 64606-12050 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 64606-12050 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77300-52030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02080 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77350-02080 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77358-30060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77360-30080 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-06030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77377-06030 |
ZRE14#..GCC,TAIW |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-06030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77377-06030 |
ZRE14#..GCC,TAIW |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77391-12060 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE143..CVFC;CE140,NDE140,NZE140,ZRE141,142 |
1 | ||
| 77391-12020 |
ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..16E,16G,16V,20D,20DSA,20G,20V,D,E,G,GLI,N,XLI (J) |
1 | ||
| 77391-02020 |
ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..16E,16G,16V,20D,20DSA,20G,20V,D,E,G,GLI,N,XLI (L) |
1 | ||
| 77391-02020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-02090 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77601-02090 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02090 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77602-02090 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77641-12160 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
7 | ||
| 77651-20090 |
ZRE14#..GCC,TAIW |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77616-02050 |
ZZE142..18V..IND;CE140,NDE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) (L) |
1 | ||
| 77616-68010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) (J) |
1 | ||
| 77616-68010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) (J) |
1 | ||
| 77616-02050 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) (L) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-12070 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) (J) |
1 | ||
| 77681-02060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) (L) |
1 | ||
| 77681-02060 |
ZZE142..18V..IND;CE140,NDE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) (L) |
1 | ||
| 77681-12070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) (J) |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-42030 |
ZRE142,143..TAIW |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-02030 |
NZE140,ZRE14#..GCC,IND,PKN,TAIW |
1 | ||
| 77779-02030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02060 |
ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
1 | ||
| 77785-02061 |
NZE140,ZRE14#,ZZE141..HTWC |
1 | ||
| 77785-02060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-10922 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90301-T0035 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90469-06005 | ||||
| 90469-T0003 | ||||
| 91626-B0614 | ||||
| 91631-60622 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

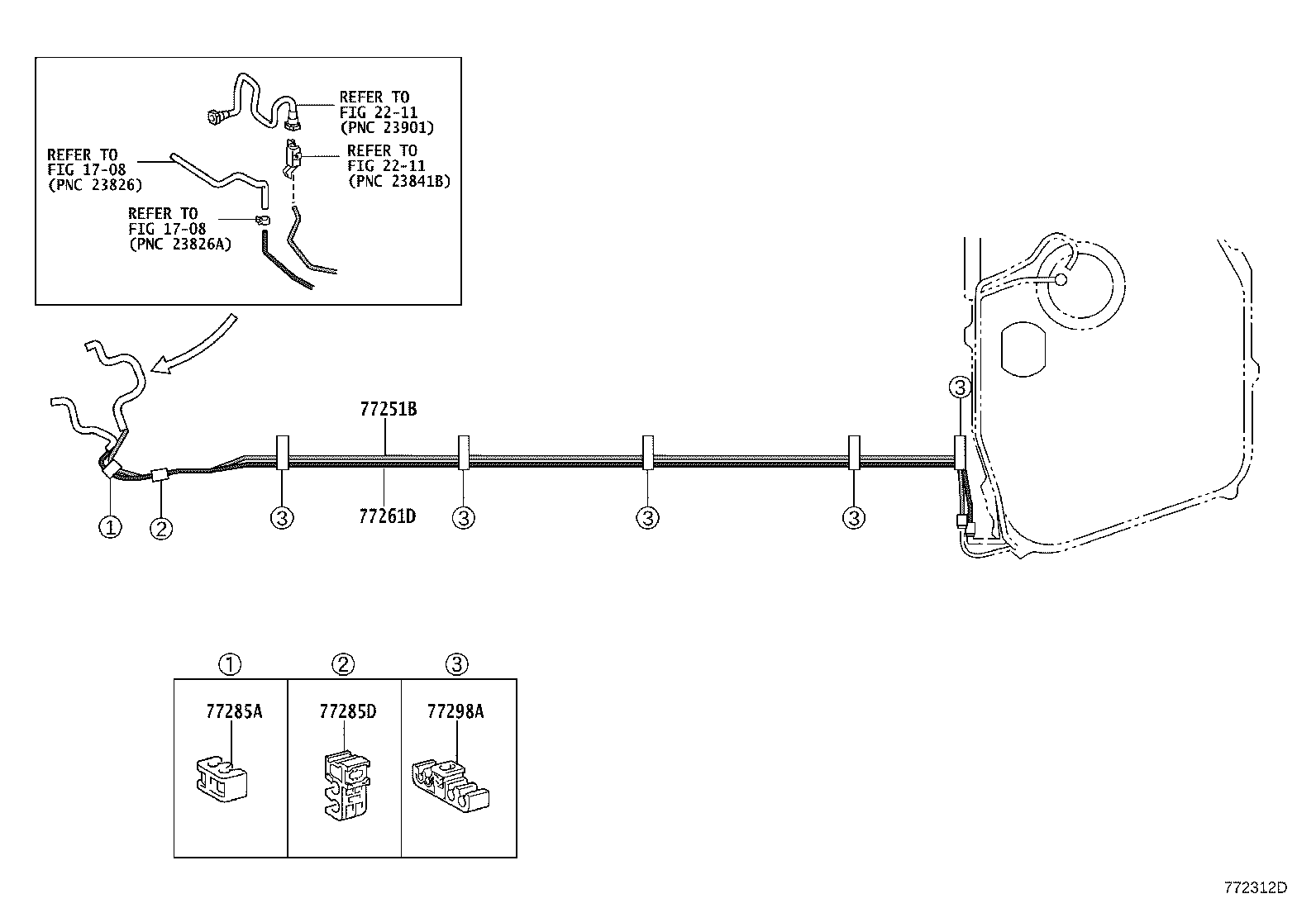

ILLUST NO. 2 OF 2(0712- )HTWC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77251-02550 |
ZRE143..CVFC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02310 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77261-02420 |
ZRE143..CVFC |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77285-42110 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 77285-50040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12130 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
5 | ||
| 77298-12130 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) |
5 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
