ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )GCC,TAIW

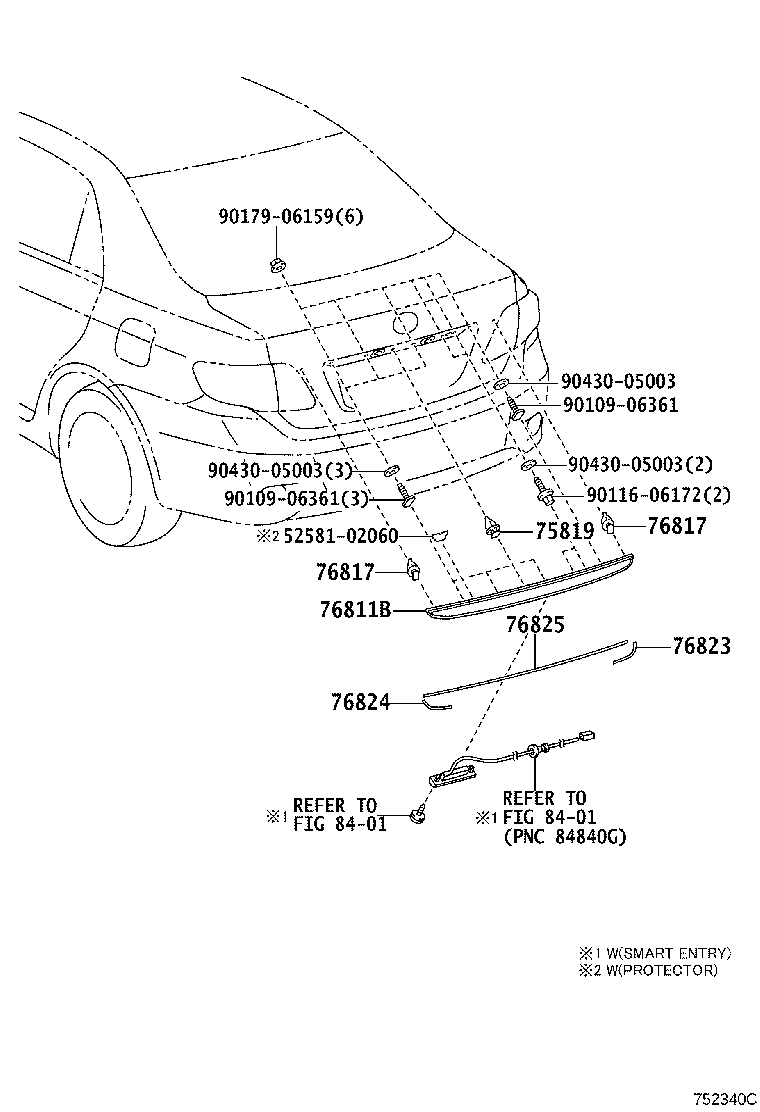

Click highlighted areas on diagram

diagram 5258102060 75819 76811B 76817 76817 76823 76824 76825 8401 8401 9010906361 9010906361 9011606172 9017906159 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
75819-33010

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-02430

ZRE143..20G..TAIW

PLATED

 1
76811-02929

ZRE143..G

PAINT REQ.,GRADE MARK : 2.0Z

 1
76811-02720

ZRE143..TAIW

PLATED,W/O(PROTECTOR)

 1
76811-12B00

ZRE143..TAIW

PLATED,W/(PROTECTOR)

 1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-02020

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-02010

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-02070

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
76825-02120

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
Common parts
52581-02060
90109-06361
90116-06172
90179-06159
90430-05003
Linked diagrams
8401
