ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis

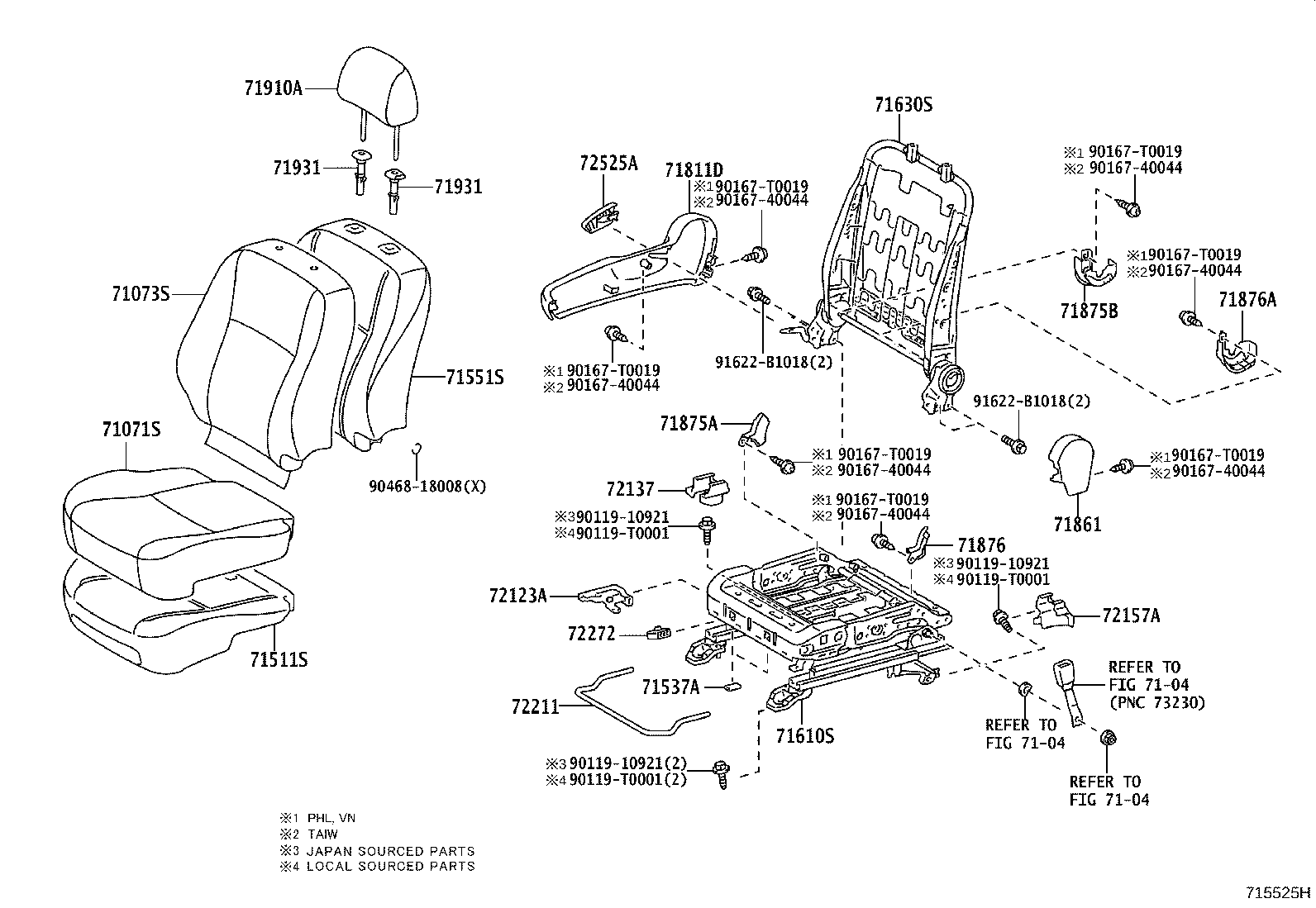

ILLUST NO. 1 OF 2(0712- )PHL,TAIW,VN
RH MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Z680B0 |
ZRE143..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71071-0Z680E0 |
ZRE143..TAIW GREGE,TRIM4# |
1 | ||
| 71071-0Z680B2 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0Z650E0 |
ZRE143..TAIW GREGE,TRIM4# |
1 | ||
| 71073-0Z650B0 |
ZRE143..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71073-0Z650B2 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02500 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 71511-02500 |
ZRE142,143..TAIW |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 71537-26010 |
ZRE143..20V;ZRE142,143..CVFC..(18G,20G)..(MA,TAIW,VN) |
2 | ||
| 71537-26010 |
ZRE143..CVFC..20V;ZRE142,143..(18G,20G)..(MA,TAIW) |
4 | ||
| 71537-26010 |
ZRE142..HTWCF;ZRE142..GCC,IDN,TAIW;ZRE143..CVFC..20G..TH;ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(TH,VN);ZRE141,143..16E,16G,16V,G,XLI |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02660 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71551-02660 |
ZRE14#..GCC,TAIW |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02030 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 71610-02030 |
ZRE142,143..TAIW |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02450 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71630-02450 |
ZRE14#..GCC,TAIW |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02320E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71811-02320E0 |
ZRE14#..LHD..(20G,G,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 71811-02320B1 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06060E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06070E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71875-06370 |
ZRE142..HTWCF;ZRE143..LHD..CVFC;ZZE141..(16G,LIMO)..TH;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,TAIW,VN;ZRE141,143..(6F,CVFC)..(16J,20G)..TH |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06320E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06400 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..(18G,18J)..(IDN,MA,TAIW,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18V,G,GLI,XLI)..HTWC |
1 | ||
| 71876-06400 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02C60E0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60B2 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
2 | ||
| 71910-02C60E0 |
ZRE142,143..(18E,20G,G)..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60E1 |
ZRE143..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60B3 |
ZRE143..TAIW DK.GRAY,TRIM1# |
2 | ||
| 71910-02C60B4 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
ZRE143..TAIW W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZRE143..TAIW W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE14#..LHD..(20G,G,GLI,XLI) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZRE14#..LHD..(20G,G,GLI,XLI) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE143..G W/O(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71930-44020B2 |
ZRE143..G W(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
ZRE143..TAIW W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZRE143..TAIW W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE14#..LHD..(20G,G,GLI,XLI) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZRE14#..LHD..(20G,G,GLI,XLI) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE143..G W/O(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71930-44020B2 |
ZRE143..G W(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02170 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72137-02170 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..(18G,18J)..(IDN,MA,TAIW,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18V,G,GLI,XLI)..HTWC |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02170 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72157-02170 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06020 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 72211-06020 |
ZRE143..CVFC..20V;ZRE142,143..CVFC..(18G,20G)..(MA,TAIW,VN) |
1 | ||
| 72211-06020 |
ZRE142..HTWCF;ZRE142..GCC,IDN,TAIW;ZRE143..CVFC..20G..TH;ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(TH,VN);ZRE141,143..16E,16G,16V,G,XLI |
2 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02050 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G)..TH;ZRE142,143..(18E,18G,18J,G)..(IDN,TAIW);ZRE141,142..(4FC,6F)..(16E,16G,16V,18G) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06030E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 72525-06030B0 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 90468-18008 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7104 | ||||

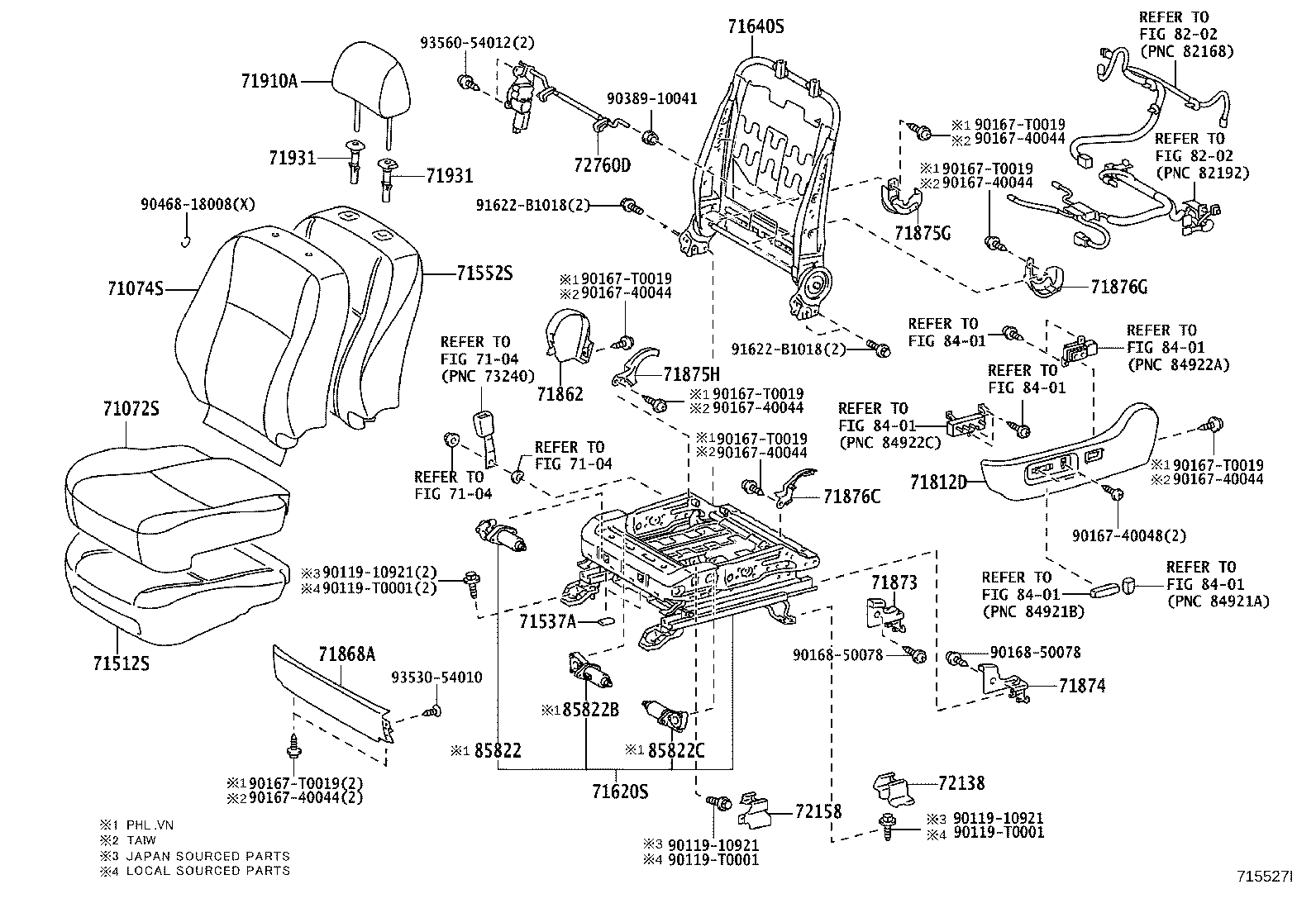

ILLUST NO. 2 OF 2(0712- )ZRE141,143,ZZE14#..PHL,TAIW ; (0712-)CVFC..18E,18G,18J,20V..TAIW,VN
LH W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02Y20B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71072-02Y20E0 |
ZRE143..20G..TAIW GREGE,TRIM4# |
1 | ||
| 71072-02Y10B0 |
ZRE143..G DK.GRAY,TRIM1# |
1 | ||
| 71072-02Y10E0 |
ZRE143..G GREGE,TRIM4# |
1 | ||
| 71072-02Y10B2 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0Z600E0 |
ZRE143..G GREGE,TRIM4# |
1 | ||
| 71074-0Z600B0 |
ZRE143..G DK.GRAY,TRIM1# |
1 | ||
| 71074-0Z630E0 |
ZRE143..20G..TAIW GREGE,TRIM4# |
1 | ||
| 71074-0Z600B2 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
1 | ||
| 71074-0Z630B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02290 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 71512-02280 |
ZRE142,143..LHD..(18E,18J,G,GLI) |
1 | ||
| 71512-02290 |
ZRE143..20G..TAIW |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 71537-26010 |
ZRE143..20V;ZRE142,143..CVFC..(18G,20G)..(MA,TAIW,VN) |
2 | ||
| 71537-26010 |
ZRE143..CVFC..20V;ZRE142,143..(18G,20G)..(MA,TAIW) |
4 | ||
| 71537-26010 |
ZRE142..HTWCF;ZRE142..GCC,IDN,TAIW;ZRE143..CVFC..20G..TH;ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(TH,VN);ZRE141,143..16E,16G,16V,G,XLI |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02450 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71552-02450 |
ZRE14#..GCC,TAIW |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02080 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 71620-02080 |
ZRE143..20G..TAIW |
1 | ||
| 71620-02070 |
ZRE142,143..(18E,18J,G)..TAIW |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02370 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 71640-02360 |
ZRE14#..LHD..(18E,18J,G,GLI,XLI) |
1 | ||
| 71640-02370 |
ZRE143..20G..TAIW |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02250E0 |
ZRE143..(20G,20V)..TAIW GREGE,TRIM4# |
1 | ||
| 71812-02240B1 |
ZRE142,143..(18E,G)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71812-02250B1 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71812-02240E0 |
ZRE142,143..ATM..(G,GLI) GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06080E0 |
ZRE143..(20G,20V)..TAIW GREGE,TRIM4# |
1 | ||
| 71862-06080B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-02040E0 |
ZRE143..(20G,20V)..TAIW GREGE,TRIM4# |
1 | ||
| 71868-02040B1 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06250 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..(18G,18J)..(IDN,MA,TAIW,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18V,G,GLI)..HTWC |
1 | ||
| 71873-06250 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06260 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW) |
1 | ||
| 71874-06260 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..(18G,18J)..(IDN,MA,TAIW,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18V,G,GLI)..HTWC |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71875-06370 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06100E0 |
ZRE143..(20G,20V)..TAIW GREGE,TRIM4# |
1 | ||
| 71875-06100B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06330E0 |
ZRE143..(20G,20V)..TAIW GREGE,TRIM4# |
1 | ||
| 71876-06330B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06080 |
ZRE142,143..LHD..CVFC..(18G,20G,20V) |
1 | ||
| 71876-06400 |
ZRE142..HTWCF;ZRE143..RHD..CVFC;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(TH,VN);ZRE14#..(16E,16G,16V,18E,18J,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC |
1 | ||
| 71876-06080 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02C60E0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60B2 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
2 | ||
| 71910-02C60E0 |
ZRE142,143..(18E,20G,G)..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60E1 |
ZRE143..TAIW GREGE,TRIM4# |
2 | ||
| 71910-02C60B3 |
ZRE143..TAIW DK.GRAY,TRIM1# |
2 | ||
| 71910-02C60B4 |
ZRE143..G GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
ZRE143..TAIW W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZRE143..TAIW W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE14#..LHD..(20G,G,GLI,XLI) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZRE14#..LHD..(20G,G,GLI,XLI) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE143..G W/O(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71930-44020B2 |
ZRE143..G W(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
ZRE143..TAIW W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZRE143..TAIW W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE14#..LHD..(20G,G,GLI,XLI) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZRE14#..LHD..(20G,G,GLI,XLI) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE143..G W/O(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 71930-44020B2 |
ZRE143..G W(LOCK),GRADE MARK : 2.0Z,GRAY,TRIM13 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72138-02150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72158-02160 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-06030 |
ZRE142,143..LHD..CVFC..(18G,20G,20V) |
1 | ||
| 72760-06030 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90167-T0019 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90468-18008 | ||||
| 91622-B1018 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
