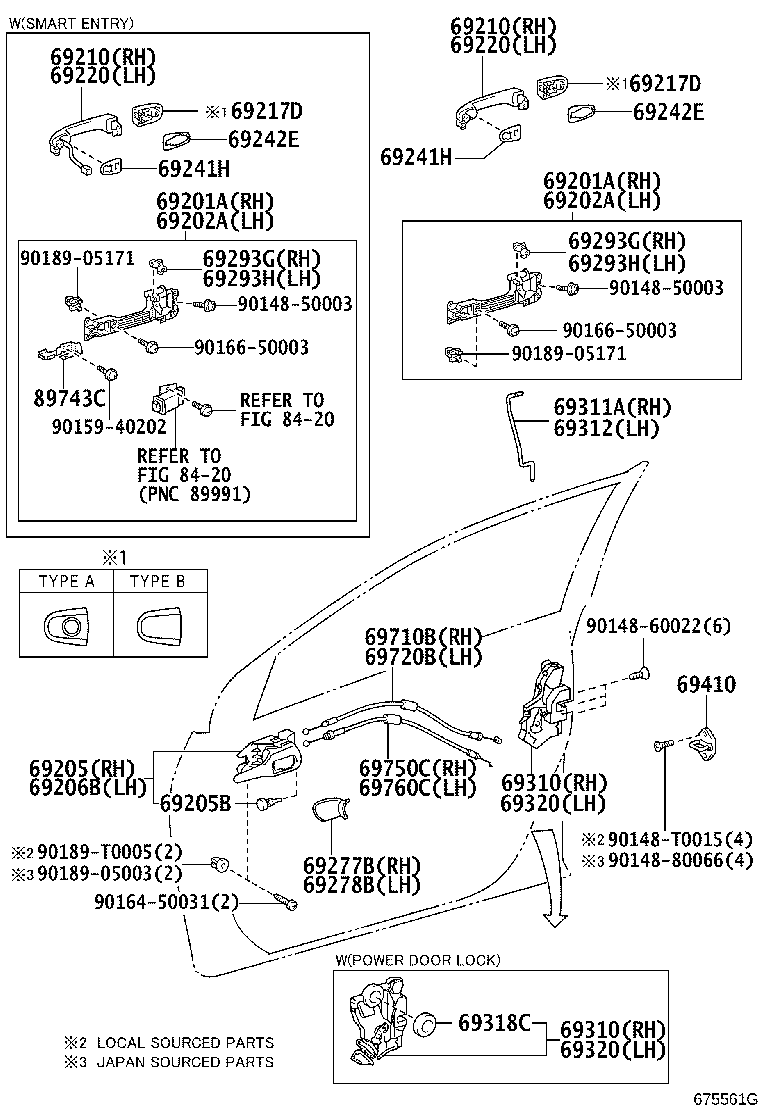

ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis
(0712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0D080 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69201-0D080 |
ZRE14#..GCC,TAIW |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0D080 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69201-0D080 |
ZRE14#..GCC,TAIW |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69202-52040 |
ZRE141..16V;ZRE143..LHD..CVFC |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69202-52040 |
ZRE141..16V;ZRE143..LHD..CVFC |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02240B2 |
ZRE143,ZZE14#..(18E,20E,20G,20V,GLI,XLI)..(GCC,TAIW) SILVER,TRIM1#,4# |
1 | ||
| 69205-02240B3 |
ZRE142,143..(18E,20G,G)..TAIW ORNAMENT SILVER,TRIM1#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 90541-04027 |
ZRE143,ZZE14#..(18E,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02250B2 |
ZRE143,ZZE14#..(18E,20E,20G,20V,GLI,XLI)..(GCC,TAIW) SILVER,TRIM1#,4# |
1 | ||
| 69206-02250B3 |
ZRE142,143..(18E,20G,G)..TAIW ORNAMENT SILVER,TRIM1#,4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-06060A0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) SUPER WHITE 2,040 |
1 | ||
| 69210-06060B3 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GRAY ME.,1G3 |
1 | ||
| 69210-06060C1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) BLACK MC.,209 |
1 | ||
| 69210-06060J5 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLUE ME.,8T7 |
1 | ||
| 69210-06931 |
ZRE142,143..GCC,TAIW PAINT REQ. |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-06060A0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) SUPER WHITE 2,040 |
1 | ||
| 69210-06060B3 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GRAY ME.,1G3 |
1 | ||
| 69210-06060C1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) BLACK MC.,209 |
1 | ||
| 69210-06060J5 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLUE ME.,8T7 |
1 | ||
| 69210-06931 |
ZRE142,143..GCC,TAIW PAINT REQ. |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-12040V1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLUE ME.,8T7,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12020 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLACK MATERIAL,TYPE A:REFER ILLUST. |
1 | ||
| 69217-12040C2 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLACK MC.,209,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12040A0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW SUPER WHITE 2,040,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12040P0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GRAY ME.,1G3,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12905 |
CE140,ZRE14#..(18E,18J,20DSA,20G,G,N)..(PKN,TAIW) LESS COLOR,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12020 |
CE140,ZRE141,142..16V,18V,20DSA,G,N;ZRE143..CVFC..(20V,G)..(IDN,PHL,TAIW,TH,VN);ZRE142,143..CVFC..(18E,18G,18J,20G)..(IDN,TAIW) BLACK MATERIAL,TYPE A:REFER ILLUST. |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-12040V1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLUE ME.,8T7,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12020 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLACK MATERIAL,TYPE A:REFER ILLUST. |
1 | ||
| 69217-12040C2 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW BLACK MC.,209,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12040A0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW SUPER WHITE 2,040,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12040P0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GRAY ME.,1G3,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12905 |
CE140,ZRE14#..(18E,18J,20DSA,20G,G,N)..(PKN,TAIW) LESS COLOR,TYPE B:REFER ILLUST. |
1 | ||
| 69217-12020 |
CE140,ZRE141,142..16V,18V,20DSA,G,N;ZRE143..CVFC..(20V,G)..(IDN,PHL,TAIW,TH,VN);ZRE142,143..CVFC..(18E,18G,18J,20G)..(IDN,TAIW) BLACK MATERIAL,TYPE A:REFER ILLUST. |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320A0 |
ZRE143..(20G,20V)..TAIW SUPER WHITE 2,040 |
1 | ||
| 69210-12320B9 |
ZRE143..(20G,20V)..TAIW SILVER ME.,1D4 |
1 | ||
| 69210-12320B6 |
ZRE143..(20G,20V)..(PHL,TAIW) GRAY ME.,1G3 |
1 | ||
| 69210-12320R6 |
ZRE143..(20G,20V)..TAIW BLUE ME.,8T7 |
1 | ||
| 69210-12320C0 |
ZRE143..(20G,20V)..TAIW BLACK MC.,209 |
1 | ||
| 69210-12320B6 |
ZRE143..TAIW GRAY ME.,1G3 |
1 | ||
| 69210-12320J8 |
ZRE143..TAIW DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
ZRE143..TAIW SILVER ME.,1F7 |
1 | ||
| 69210-12320A0 |
ZRE143..TAIW SUPER WHITE 2,040 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320A0 |
ZRE143..(20G,20V)..TAIW SUPER WHITE 2,040 |
1 | ||
| 69210-12320B9 |
ZRE143..(20G,20V)..TAIW SILVER ME.,1D4 |
1 | ||
| 69210-12320B6 |
ZRE143..(20G,20V)..(PHL,TAIW) GRAY ME.,1G3 |
1 | ||
| 69210-12320R6 |
ZRE143..(20G,20V)..TAIW BLUE ME.,8T7 |
1 | ||
| 69210-12320C0 |
ZRE143..(20G,20V)..TAIW BLACK MC.,209 |
1 | ||
| 69210-12320B6 |
ZRE143..TAIW GRAY ME.,1G3 |
1 | ||
| 69210-12320J8 |
ZRE143..TAIW DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
ZRE143..TAIW SILVER ME.,1F7 |
1 | ||
| 69210-12320A0 |
ZRE143..TAIW SUPER WHITE 2,040 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 69241-42020 |
CE140,NZE140,ZRE14#..GCC,PKN,TAIW |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 69241-42020 |
CE140,NZE140,ZRE14#..GCC,PKN,TAIW |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 69242-42010 |
CE140,NZE140,ZRE14#..GCC,PKN,TAIW |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 69242-42010 |
CE140,NZE140,ZRE14#..GCC,PKN,TAIW |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-02160E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 69277-02160E0 |
ZRE14#..LHD..(18E,20G,G,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 69277-02160B1 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-02150E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 69278-02150E0 |
ZRE14#..LHD..(18E,20G,G,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 69278-02150B1 |
ZRE142,143..(18E,20G,G)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12040 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69293-20010 |
ZRE14#..GCC,TAIW |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12040 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69293-20010 |
ZRE14#..GCC,TAIW |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZRE143..LHD..CVFC;CE140,NZE140,ZRE141..(16V,20D,20DSA,D,GLI,N,XLI)..(PHL,PKN) |
1 | ||
| 69293-20010 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZRE143..LHD..CVFC;CE140,NZE140,ZRE141..(16V,20D,20DSA,D,GLI,N,XLI)..(PHL,PKN) |
1 | ||
| 69293-20010 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-06130 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 69030-06130 |
ZRE142,143..TAIW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-06130 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 69030-06130 |
ZRE142,143..TAIW |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-02240 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69311-02240 |
ZRE14#..GCC,TAIW |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-02240 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69312-02240 |
ZRE14#..GCC,TAIW |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
2 | ||
| 69318-51010 |
ZRE142..HTWCF;ZZE141..16G..TH;ZRE141,142..RHD..(16E,16G,18E,N)..HTWC;CE140,NDE140,ZRE143..(5F,6F,CVFC)..(20DSA,20G,20V,E,G);ZRE141,142..(16G,16V,18E,18G,18J,18V,E,G)..(IDN,IND,MA,PHL,TAIW,VN) |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-06120 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 69040-06120 |
ZRE142,143..TAIW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-06120 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 69040-06120 |
ZRE142,143..TAIW |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-06010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 69410-06010 |
ZRE14#..GCC,TAIW |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-02200 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69710-02200 |
ZRE14#..GCC,TAIW |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-02200 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69710-02200 |
ZRE14#..GCC,TAIW |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-02230 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69750-02230 |
ZRE14#..GCC,TAIW |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-02230 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 69750-02230 |
ZRE14#..GCC,TAIW |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-47020 |
ZRE143..(20G,20V)..TAIW LH |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90189-05171 | ||||
| 90189-T0005 | ||||
| Linked diagrams | ||||
| 8420 | ||||
